3D Section Feature on Doors/Windows

With the 3D section feature, the opening conditions of the doors/windows are also taken into account and displayed in the sections. If the box is not checked, the doors/windows are considered closed in sections, regardless of their opening status.

Location of 3D Section Feature

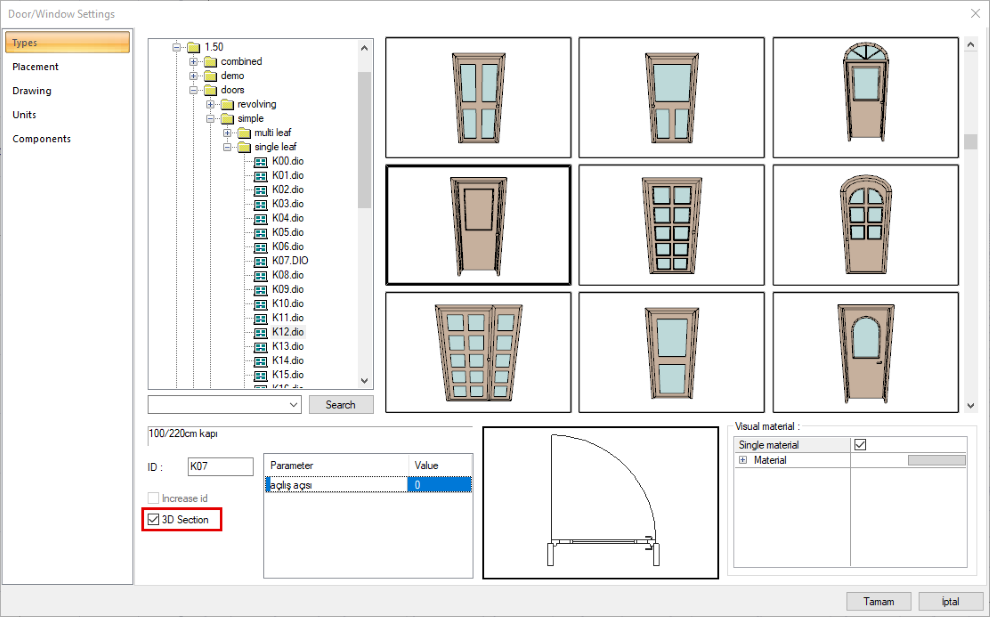

You can access the 3D section feature from the types tab of the door/window settings dialog .

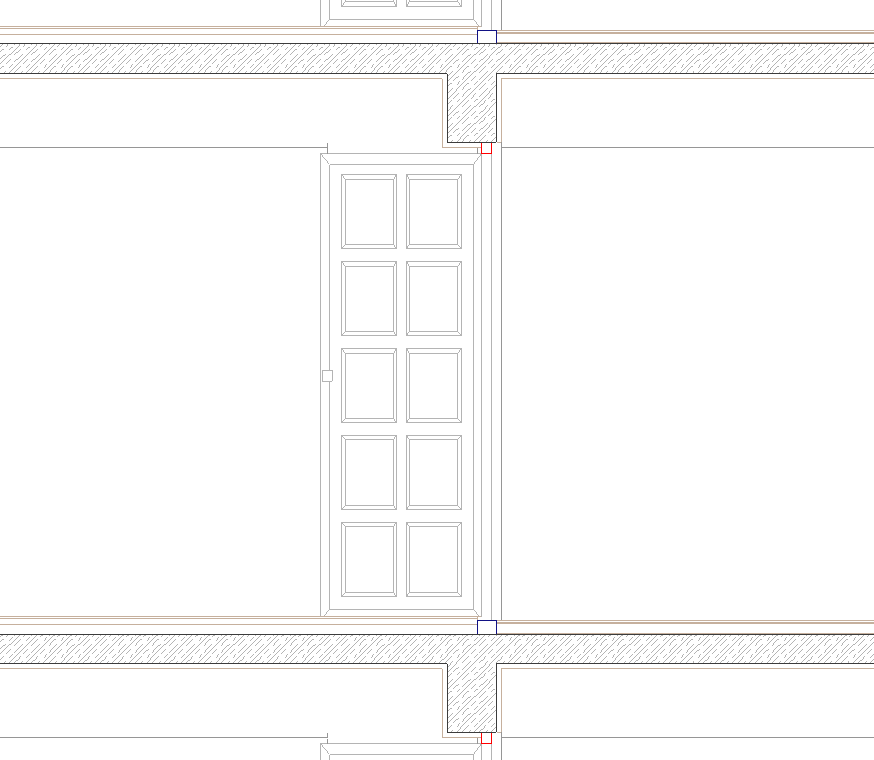

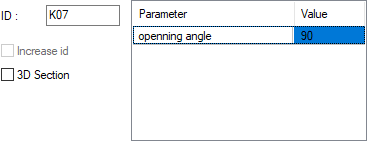

Section with 3D section feature is unchecked

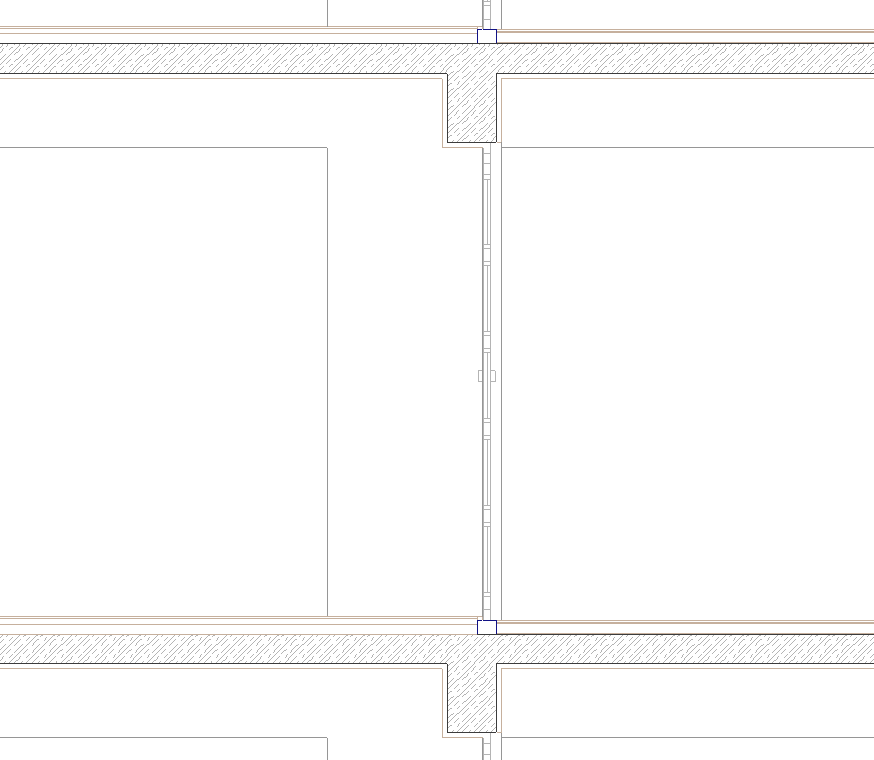

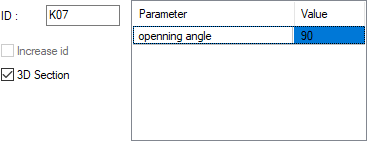

Section with 3D section feature is checked
