Bolted Flange Plate Connection Design Report 1

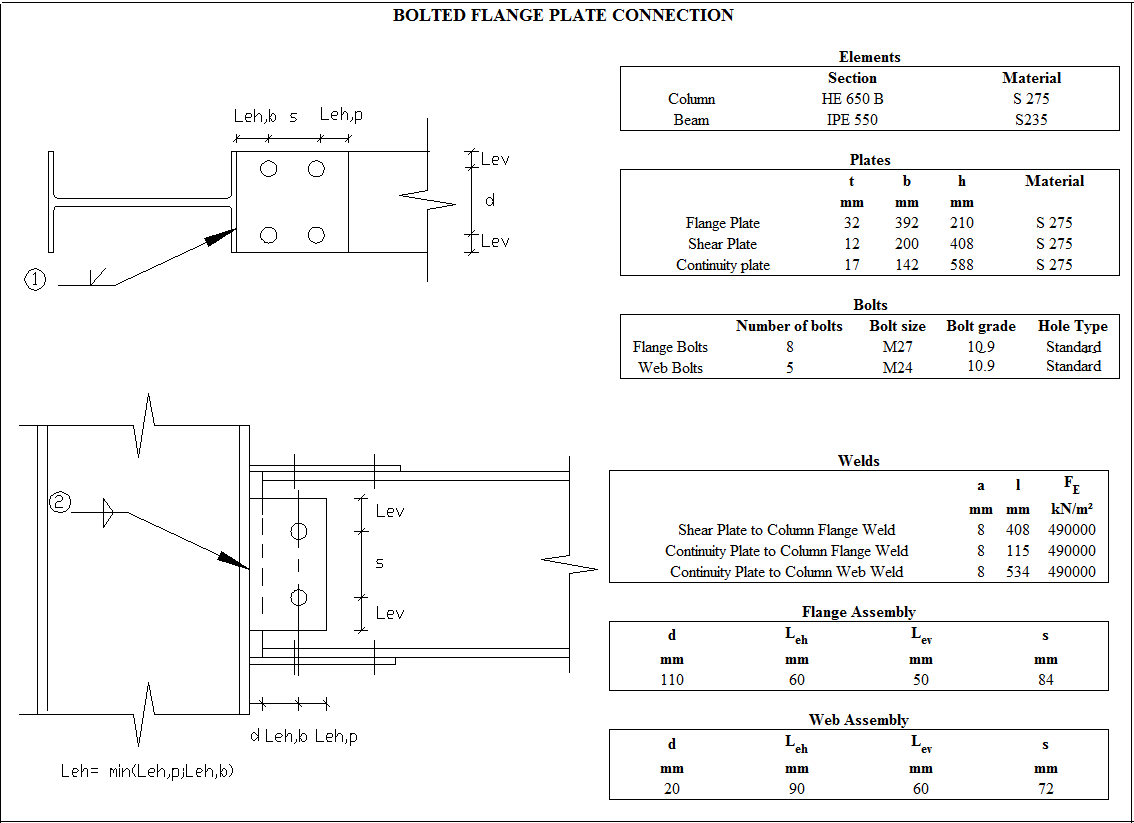

A sample of the bolted flange plate connection design report according to AISC 358-16 & AISC 360-16 is given below.

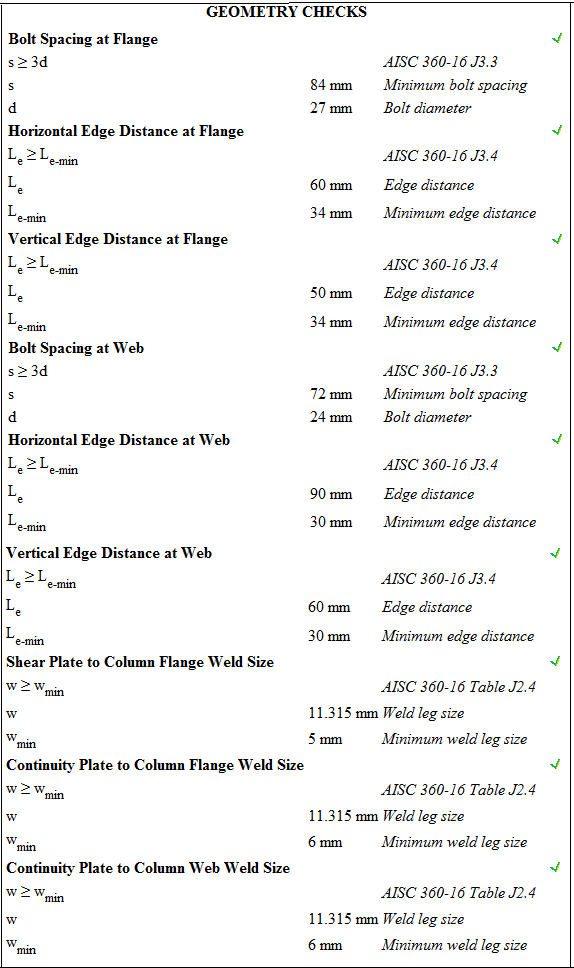

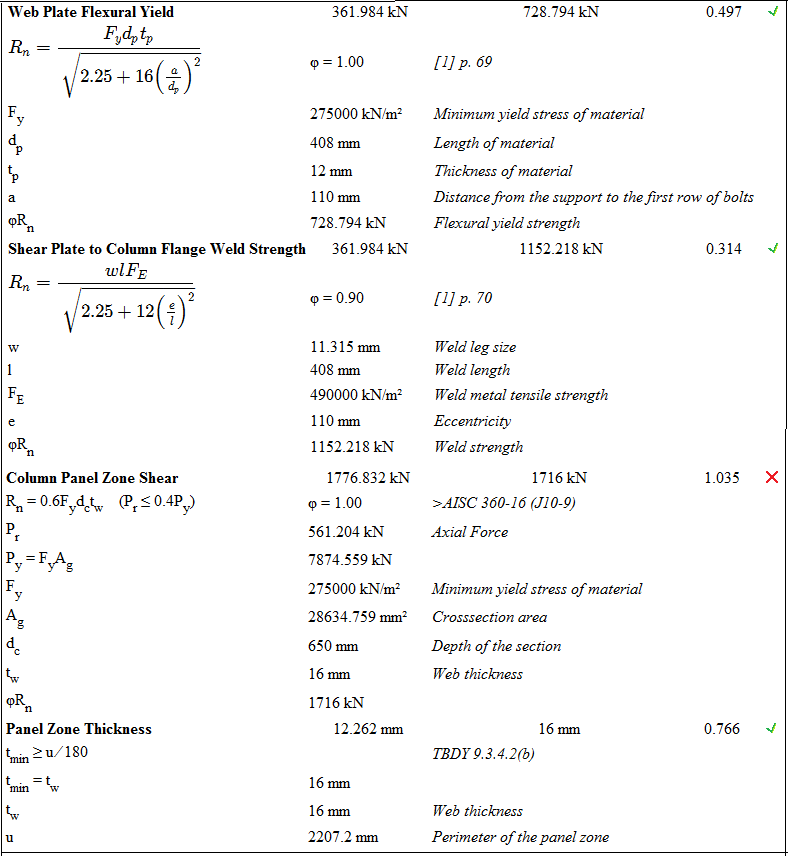

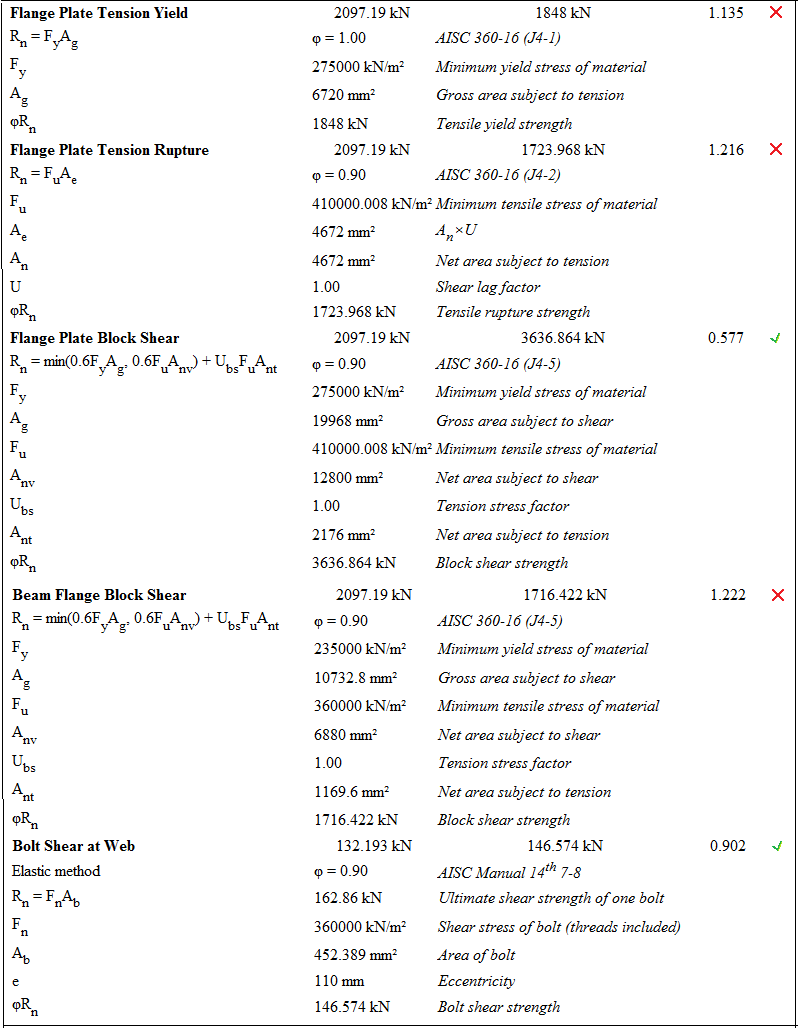

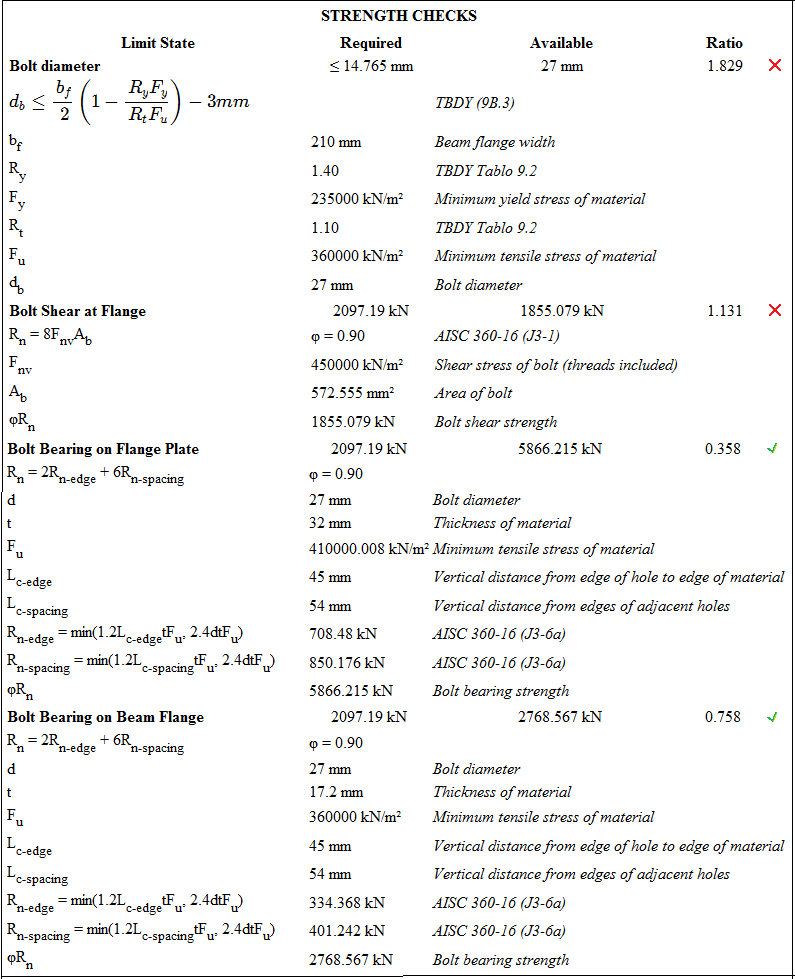

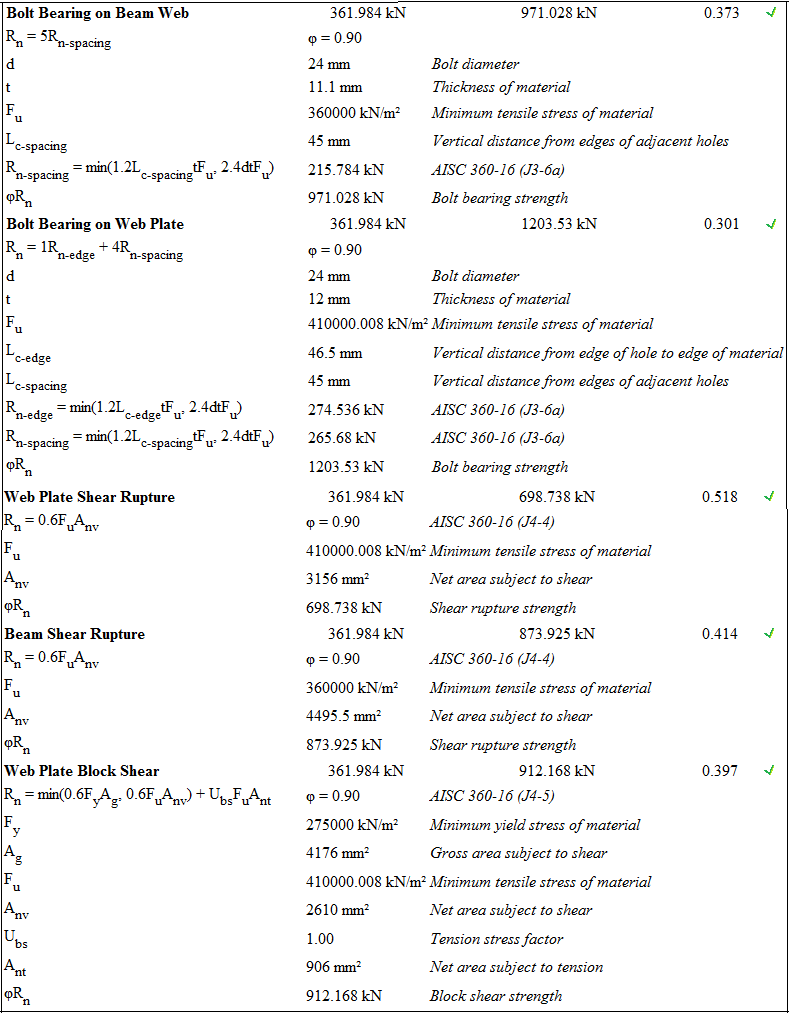

Design limit states of bolted flange plate connections are calculated automatically according to AISC 358-16 and AISC 360-16.
