Transforming Closed Polygon to Polygon Section

Closed Polygon to Polygon Section command, the closed area created by the line is converted to a polygon section. With this method, sections are defined in the desired forms.

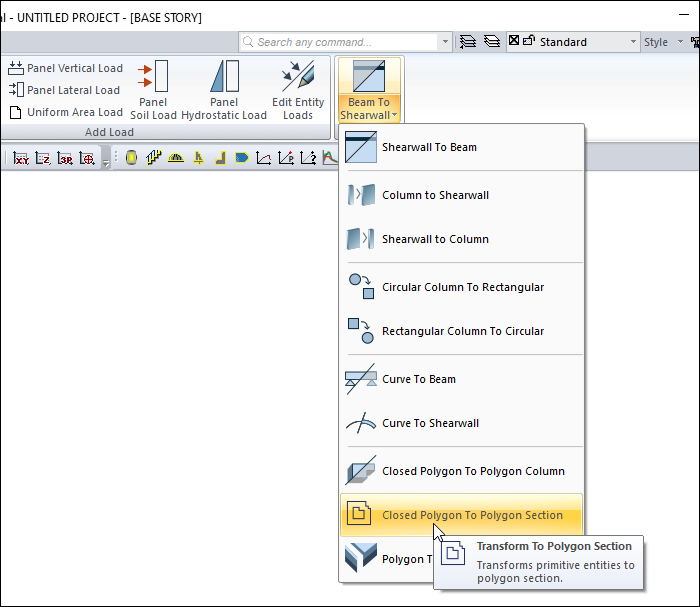

Location of Closed Polygon to Polygon Section Command

You can access it from the ribbon menu Modify tab under the Transform heading.

Usage Steps

  • Create a closed area with the line.

  • Click the closed polygon to polygon section command.

  • The Section Settings dialog will open. Set your section name and material.

  • Click the OK button to close the dialog.

  • The section you define will be listed under the Sections row in the Structure Tree view .

Usage step

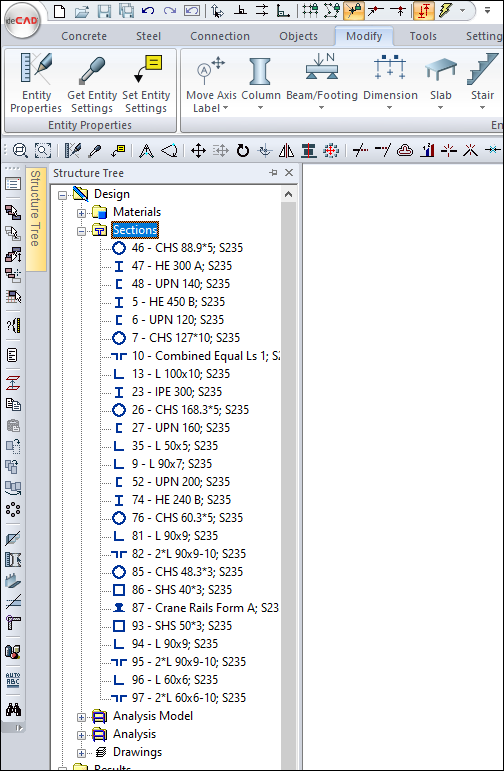

Structure tree before polygon section is formed

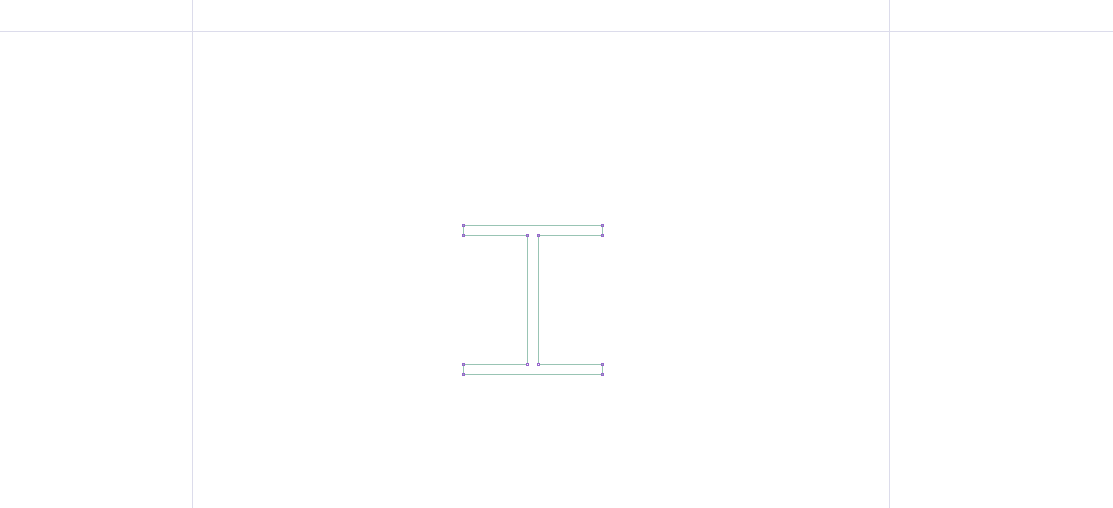

Creating a closed area with a line

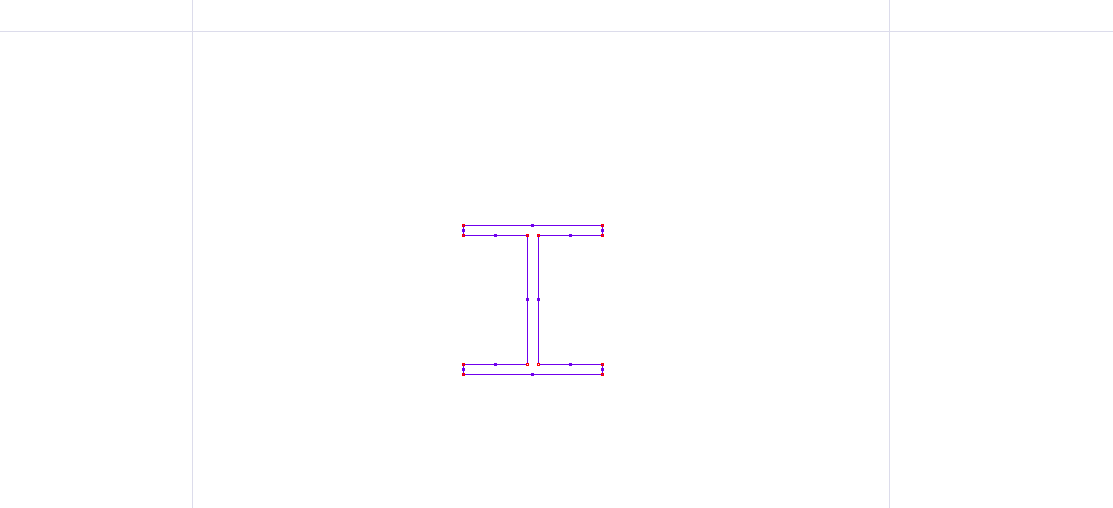

Selecting the area to be transformed to a polygon section

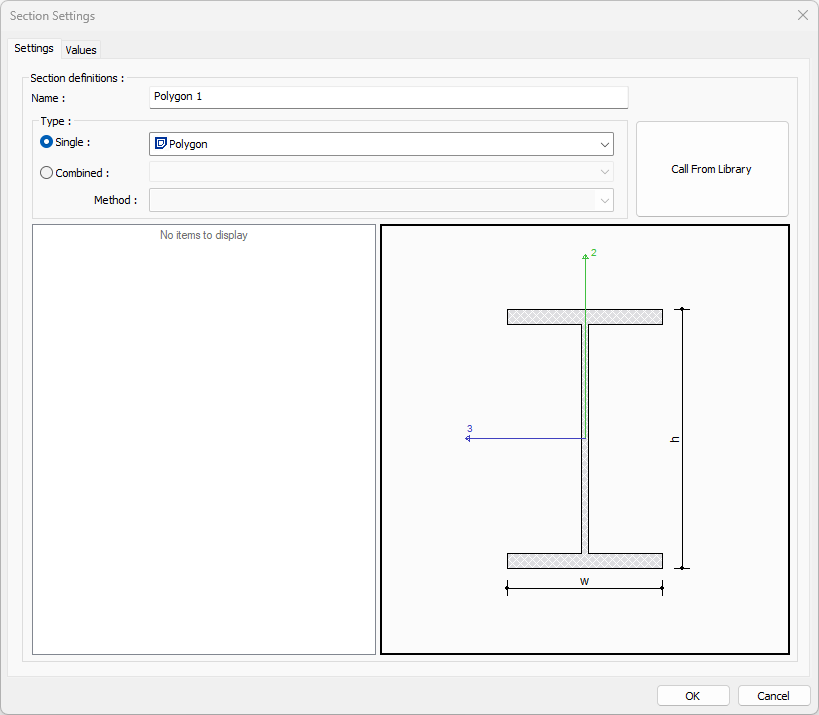

Editing the settings

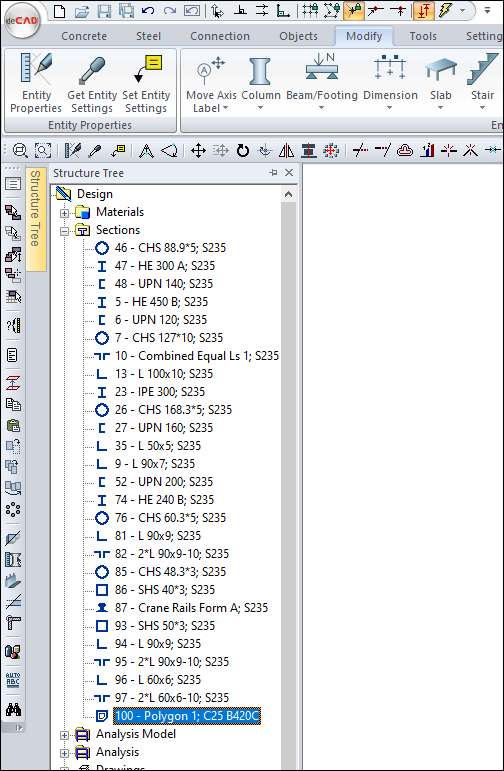

Creating a polygon section and adding it to the structure tree
