Set Automatic Wall Height

The height value in the wall settings is determined by the user, starting from the story of the story. By activating the automatic feature, the wall elevations and heights are calculated automatically according to the height and elevation values ​​determined in the story settings. When calculating the wall heights, the entered beams and slabs are taken into account.

Location of Automatic Height Feature

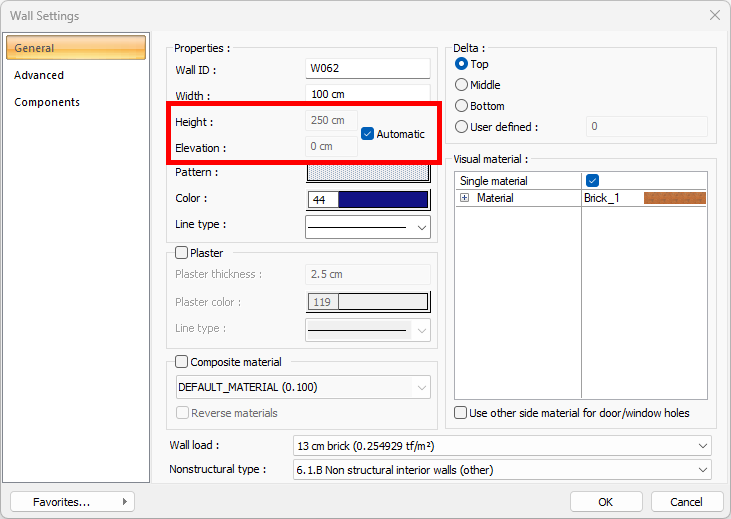

You can access the automatic wall height feature from the Wall Settings dialog, General tab.

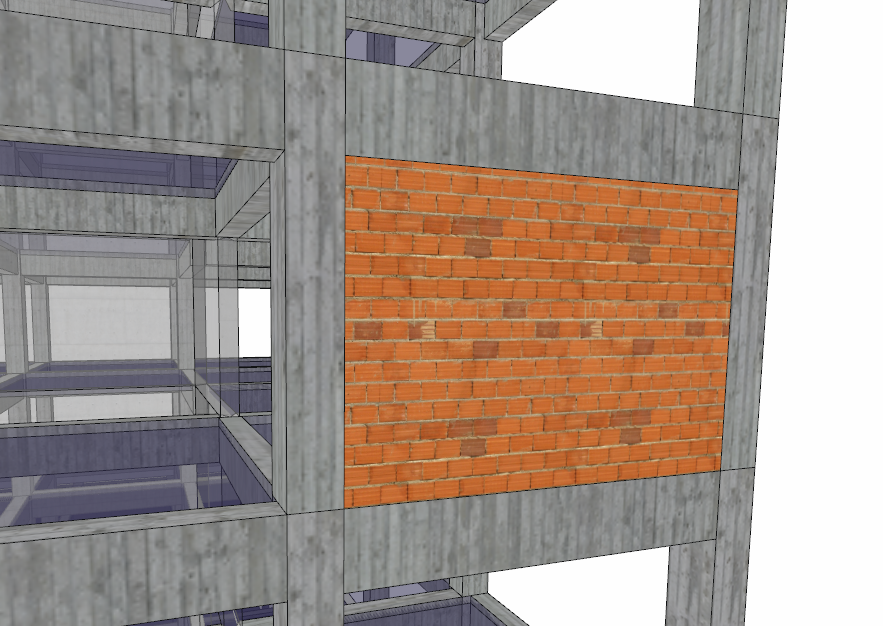

When the wall height automatic feature is active

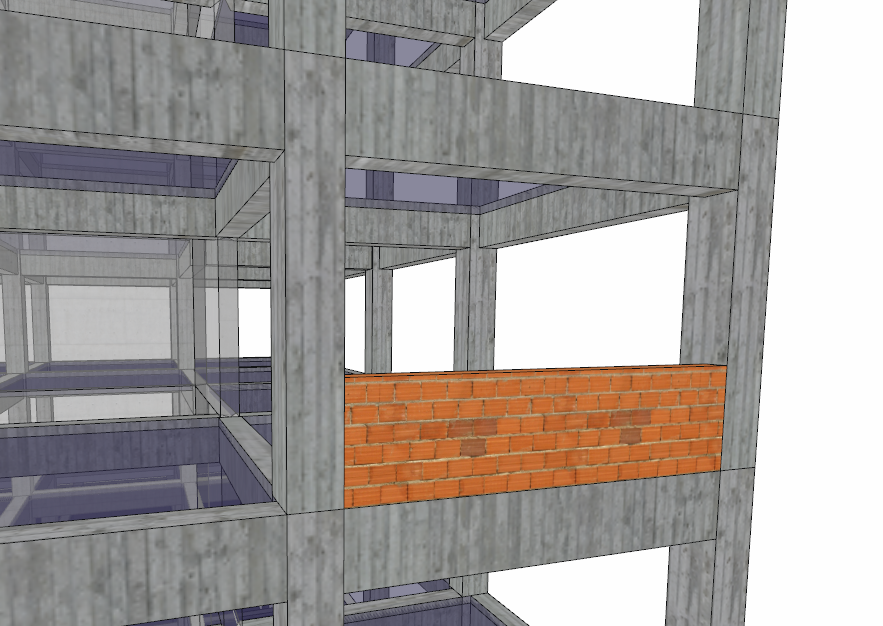

When the wall height automatic feature is not active, after entering the height 90
