Zoom Command

Apart from the mouse wheel, the Zoom command is also used to zoom in and out in plan and 2D drawing windows.

Location of the Zoom Command

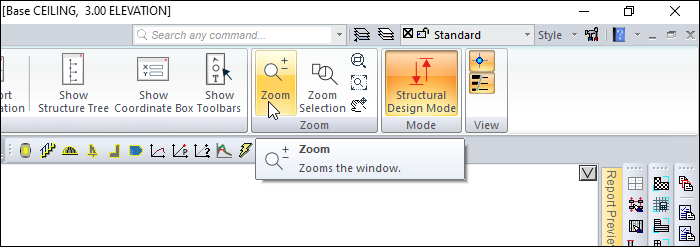

You can access it from the ribbon menu, View tab, Zoom title.

Usage Steps

  • Click the Zoom icon.

  • The mouse cursor takes the form of a magnifying glass and a hand.

  • Keeping the left mouse button pressed, moving the mouse forward at any point in the drawing.

  • Approach the point, move away from the point if the mouse is moved backward.

  • If the ESC key is pressed on the keyboard, the command is exited.
