The 2D object (such as circle, intersecting lines, arc) selected with the extend command is extended to the specified reference boundary. A 2-dimensional object is selected as the reference boundary.

Location of the Extend Command

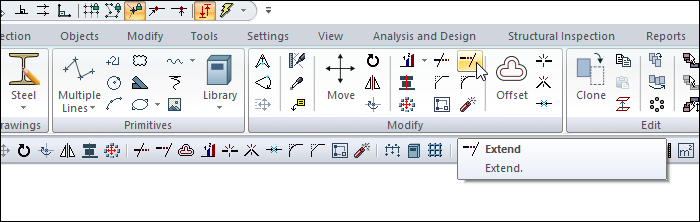

You can access the Extend command under the Modify title of the ribbon menu Drawings tab .

Usage Steps

  • Click the Extend icon in the ribbon menu .

  • Select the line that will be your reference border and click the right mouse button. It will be extended up to this line.

  • Determine the side of your other line to be extended.

  • Your line will be extended.

Usage step

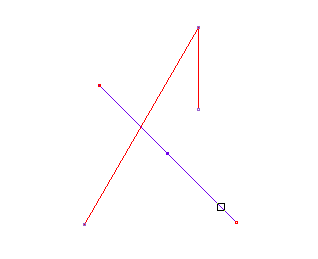

Determining the reference limit

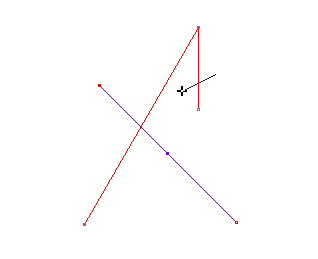

Determining the side to be extended

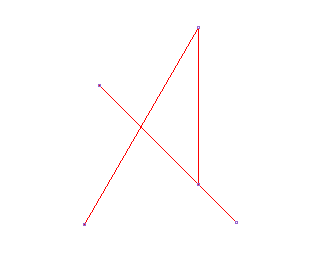

After extend
