Defining a Brace Center Connection
With the Brace Center Connection command, steel brace center point connection is defined.
Location of the Brace Center Connection Command

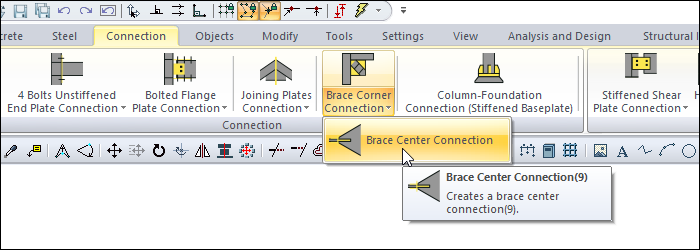

You can access it under the Ribbon menu, Connection tab, Connection title.
Usage Steps
When the steel brace is defined, the program makes these combinations automatically. However, the combination made automatically can be deleted and a new one can be made.
Click the Brace Center Connection line from the Steel tab.
From the 3D perspective view, click the converging braces in turn.
The combination will occur with default settings.
Location of the Brace Center Connection Settings Dialog
Select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.
Brace Center Connection Settings Dialog

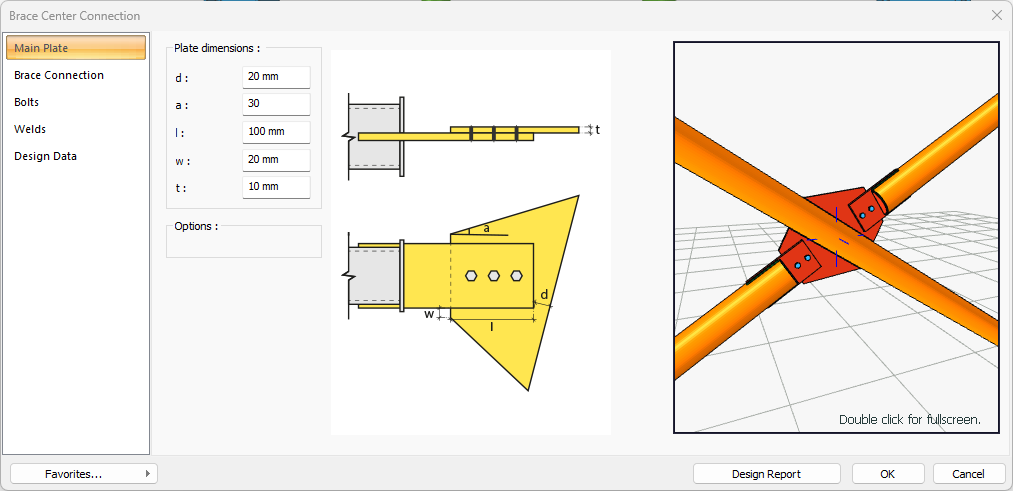

Main Plate Tab
Specifications |
|---|

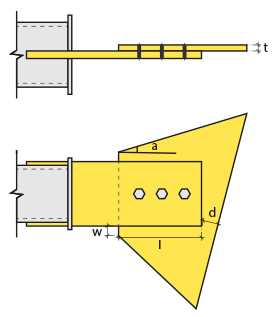

Plate dimensions  The dimensions of the plate are determined by entering the values. The values to be entered are shown in the schematic drawing. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview  There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
Brace Connection Tab
Specifications |
|---|

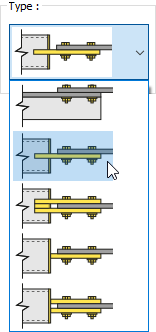

Type (Brace)  Connection type is selected. |

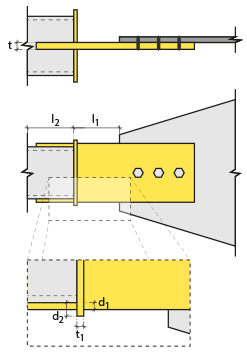

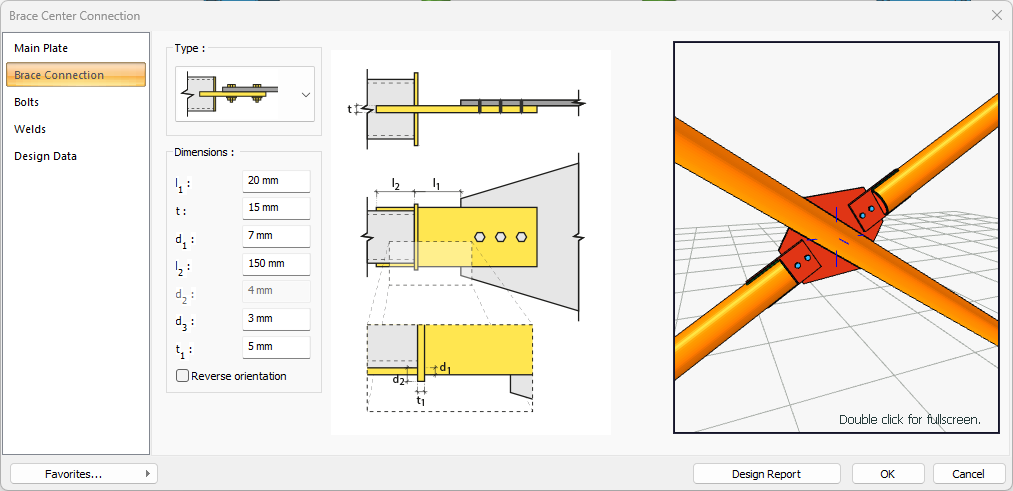

Dimensions  The dimensions of the plate are determined by entering the values. The values to be entered are shown in the schematic drawing. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
Bolts Tab
Specifications |
|---|

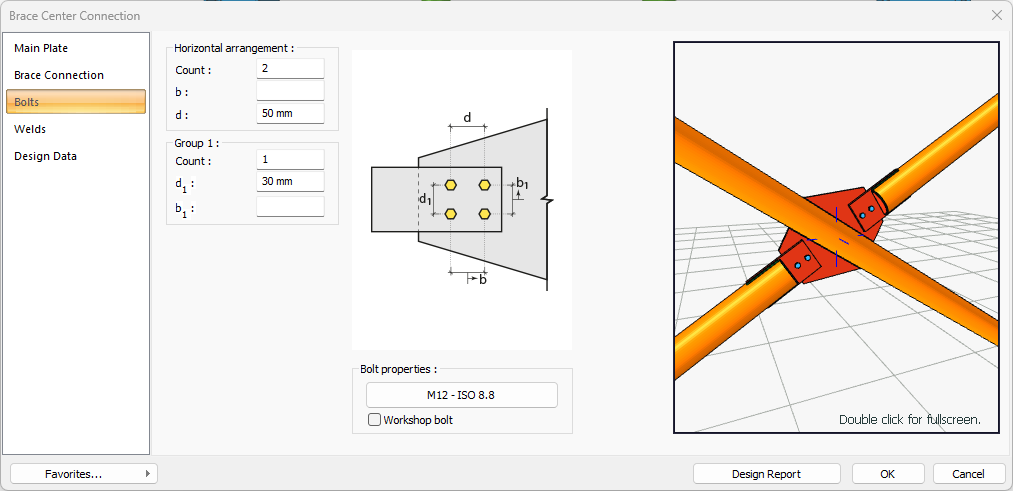

Horizontal arrangement  The horizontal arrangement distance value of bolts is entered. The values to be entered are shown in the schematic drawing. |
Group 1  Distance values of bolts to beam and other bolts are entered. The values to be entered are shown in the schematic drawing. |
Bolt properties  The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog. |
Schematic drawing  Connection and bolt placement values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

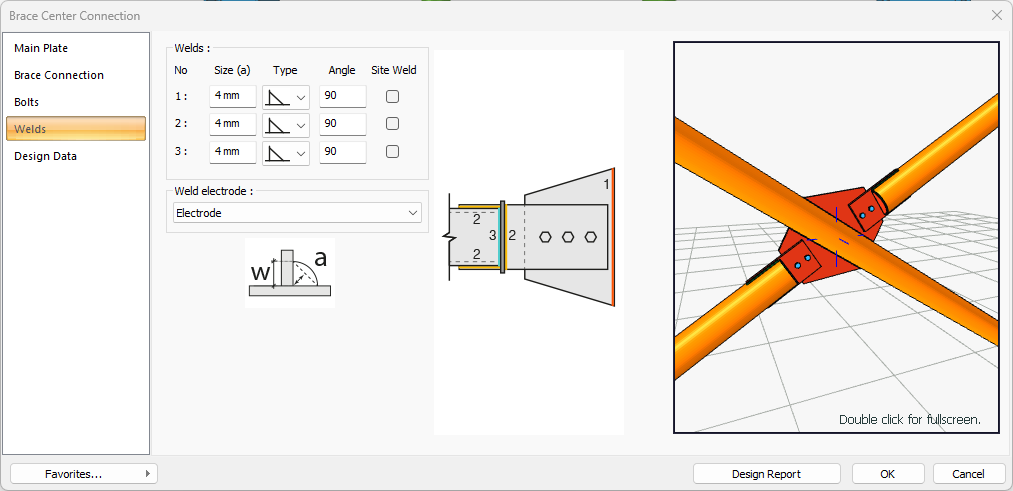

Welds Tab
Specifications |
|---|
Welds  The thickness, type and angle values of the welds to be made at the connections are given. The information on whether it will be done on the construction site or not is entered. |
Weld electrode  The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld joint is controlled under the condition that it has less strength than the weld strength. If necessary, click the list and define "Create New…". To create the welding electrode, give the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New". Welding geometry is determined automatically by the program. These properties can be changed to easily determine the connection properties. Geometry features are in accordance with industry standards and in the form specified in AISC. |

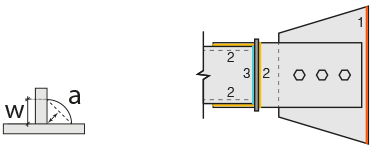

Schematic drawing  Connection and weld values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

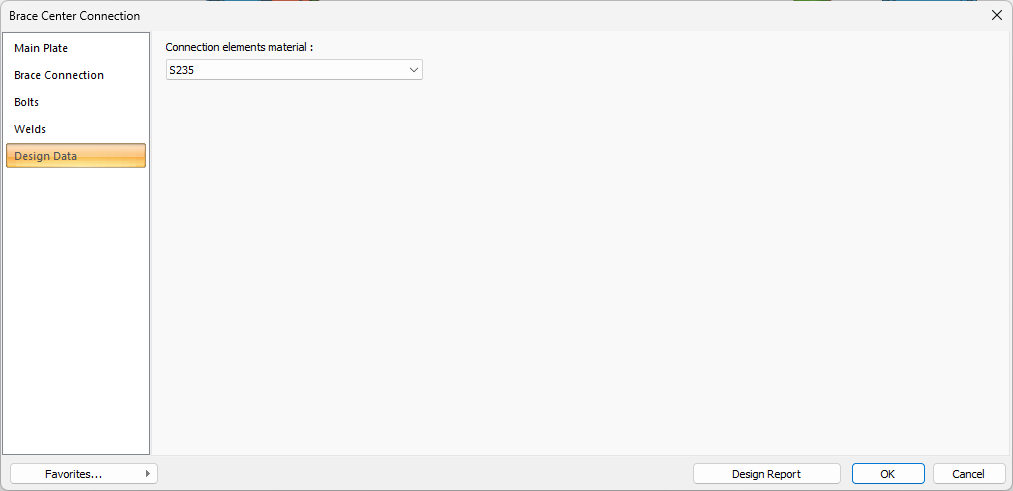

Design Data Tab
In the design data, the connection elements material is defined. The condition that the main element in the weld joint has less strength than the weld strength is controlled.
If necessary, click the list and define "Create New…". To create the connection elements material, give the information material definitions and values in the dialog that opens after clicking "Create New".
