DWG/DXF/DWF Single Export
DWG/DXF/DWF Single (Export) command allows to export the drawings in the active window in the project to dwg/dxf/dwf format.

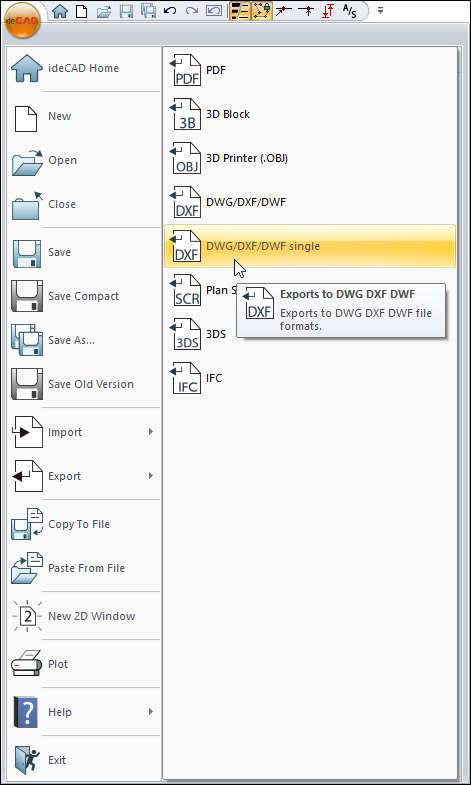

Location of the Export DWG/DXF/DWF Single
You can access it from the menu under the ideCAD logo in the upper left corner of the screen in the ribbon menu.
![image-20240131-110811.png](../__attachments/1982333728/image-20240131-110811.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
Usage Steps
The story or drawing window to be saved as DWG is switched to.
Click the İdeCAD logo in the upper left corner.
Click the Export/DWG-DXF-DWF single line from the menu that opens.
Select one of the DWG/DXF format from the opened project save list. (* .dwg or * .dxf)
Write a name on the File Name line
The DWG/DXF Export Options dialog will open. The required parameters are set in this dialog.
The OK button is clicked.

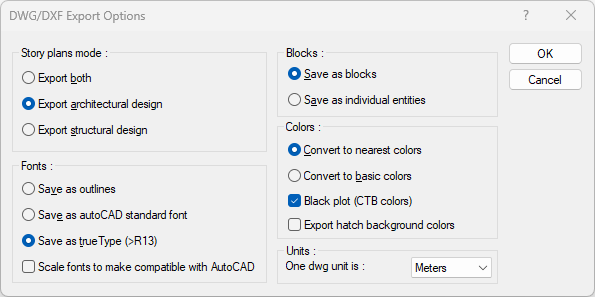

DWG/DXF Export Options Dialog
![image-20240530-120051.png](../__attachments/1982333728/image-20240530-120051.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
Specifications |
---|
Story plans mode ![]() In the selected story plans, drawings in structural mode in architectural mode or in both modes can be exported. |
Save as blocks ![]() Objects are transferred as a block (whole). Objects come as blocks in the CAD environment. |
Save as individual entities ![]() Each line whose objects are created is transferred as a separate line object. |
Save as outlines ![]() All text in the drawing is converted to outline. |
Save as autoCAD standard font ![]() The texts used in the drawing are converted to AutoCAD's standard font (AutoCAD is a registered trademark of AutoDesk.) |
Save as true type (>R13) ![]() Text is transferred to AutoCAD R13 and higher versions as True Type |
Scale fonts to make compatible with AutoCAD ![]() When marked, the size of the texts is reduced to fit the font sizes of the AutoCAD. |
Convert to nearest colors ![]() It converts the available colors to the closest colors. |
Convert to basic colors ![]() Converts existing colors to base colors. |
Black plot (CTB colors) ![]() Turns all colors to black. |
Export hatch background colors ![]() Background colors of the hatches in the project are exported. |
One dwg unit is ![]() Unit measurement value is selected in the exported drawing. |
