Well Foundation Detail
Color, size and type of the texts, paper, table and heading settings on well foundation details are arranged.

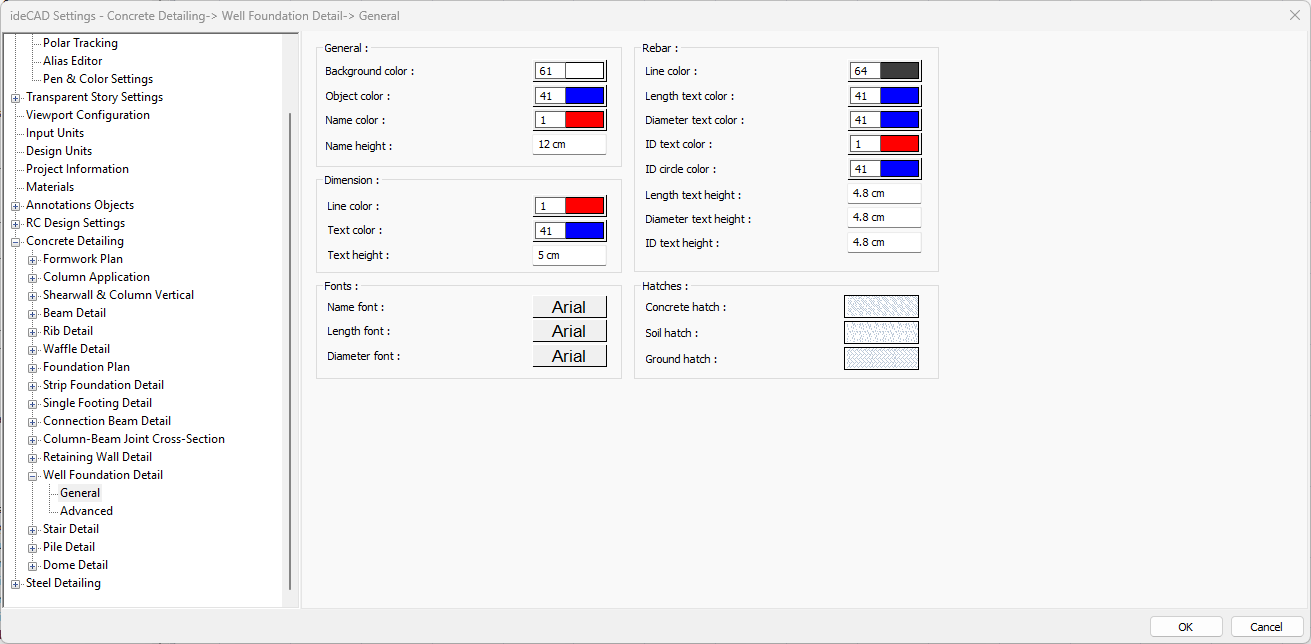

General
![](../__attachments/2377451471/image-20231109-083431.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications - General |
Background color ![]() Sets the background color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Object color ![]() Sets the object color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Name color ![]() Sets the name color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Name height ![]() Name height is entered. |
Specifications - Dimensions |
Line color ![]() Sets the measure line color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text color ![]() Sets the color of the dimension text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text height ![]() Size text height is entered. |
Specifications - Fonts |
Name font ![]() Name font is selected. |
Length font ![]() The font of the length fonts is selected. |
Diameter font ![]() Diameter font is selected. |
Specifications - Rebar |
Line color ![]() Sets the color of rebar lines. When the color box is clicked, the appropriate color is selected from the window that opens. |
Length text color ![]() Sets the color of the length text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Diameter text color ![]() Sets the color of the diameter text. When the color box is clicked, the appropriate color is selected from the window that opens. |
ID text color ![]() Sets the color of the ID text. When the color box is clicked, the appropriate color is selected from the window that opens. |
ID circle color ![]() ID sets the color of the circle. When the color box is clicked, the appropriate color is selected from the window that opens. |
Length text height ![]() Text height is entered. |
Diameter text height ![]() Diameter text height is entered. |
ID text height ![]() ID text height is entered. |
Specifications - Hatches |
Concrete hatch ![]() It is the hatch type that is valid for concrete. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the lookup table in this dialog. |
Soil hatch ![]() It is the hatch type that is valid for the soil. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the lookup table in this dialog. |
Ground hatch ![]() It is the hatch type that is valid for the ground. Clicking on hatch opens the Hatch Settings dialog. The hatch type is selected from the look-up table in this dialog. |

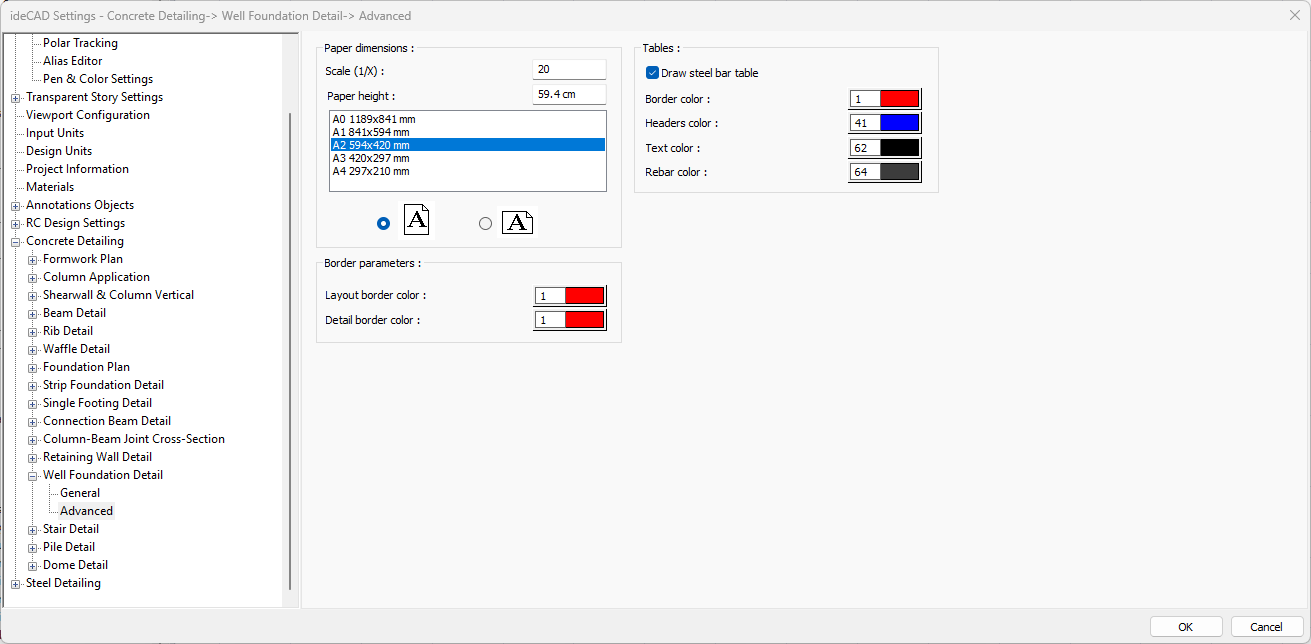

Advanced
![](../__attachments/2377451471/image-20231109-083634.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Scale (1/X) ![]() ![]() In what scale the drawings will be drawn, that value is entered. |
Paper height ![]() Standard paper sizes can also be selected, and any paper size value can be entered. |
Standard paper sizes ![]() Standard paper sizes are listed. The layout size can be selected from the list, as well as the layout dimensions can be determined by entering the width and height values. |
Vertical/Horizontal use ![]() It is determined whether the layout will be used horizontally or vertically. |
Layout border color ![]() You can select the layout border color from the color palette that appears when you click it. If clicked together with the Shift key, the pen thickness of the relevant color can be adjusted. The pen thickness value entered here is only used in inkjet printers. |
Detail border color ![]() You can select the detail border color from the color palette that appears on the screen when you click it. If clicked together with the Shift key, the pen thickness of the relevant color can be adjusted. The pen thickness value entered here is only used in inkjet printers. |
Draw steel bar table ![]() If checked, steel bar tables are added to the drawing. |
Border color ![]() Sets the color of the border lines. When the color box is clicked, the appropriate color is selected from the window that opens. |
Headers color ![]() Sets the table header color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Text color ![]() Sets the color of text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar color ![]() Sets the color of the rebar. When the color box is clicked, the appropriate color is selected from the window that opens. |
