Rotating Extruded Object
Objects created with the extruded object command are rotated around their own axis with the Local Rotation feature.

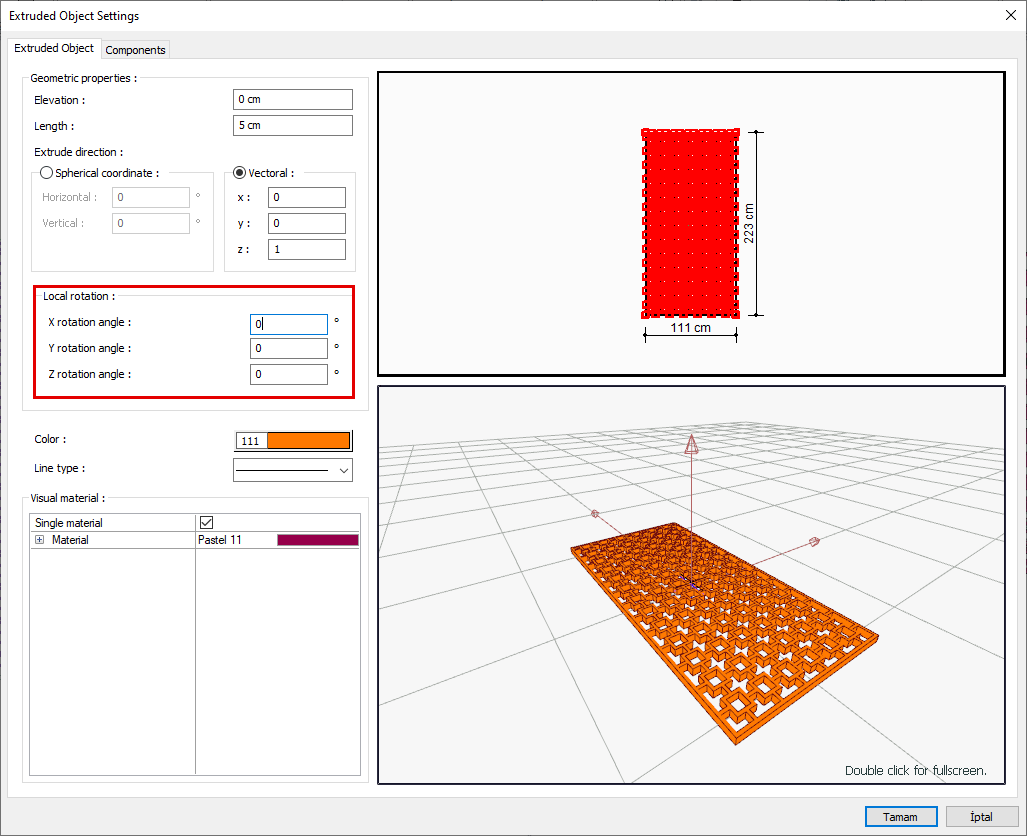

Location of Local Rotation Feature
You can access the local rotation feature from the extruded object settings dialog.
Features |
|---|
X rotation angle  The angle of rotation relative to the local X axis is entered. |
Y rotation angle  The angle of rotation relative to the local Y axis is entered. |
Z rotation angle  The angle of rotation relative to the local Z axis is entered. |
Extruded Object at Different Local Rotation Angles

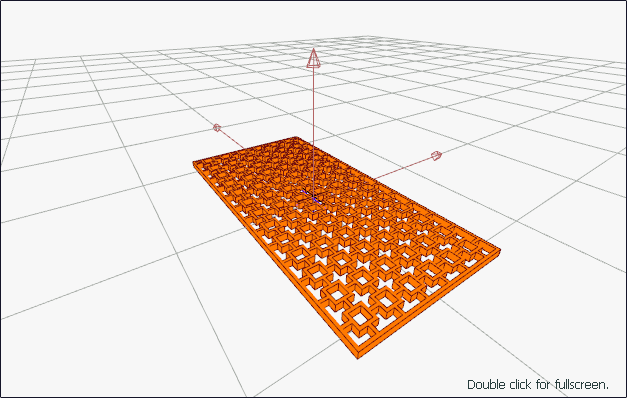

When the rotation angle X, Y and Z is 0 |
 |

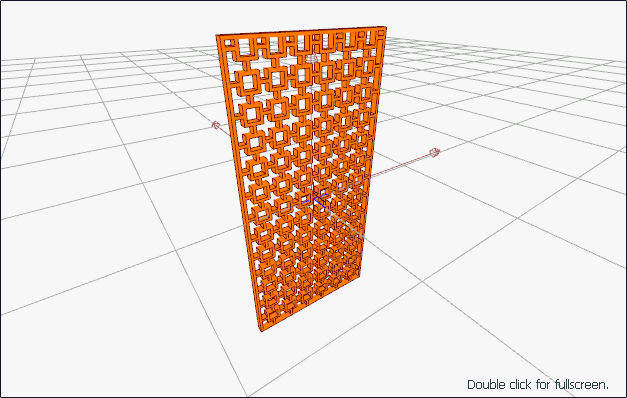

When the rotation angle X 90, Y and Z 0 |
|---|
 |

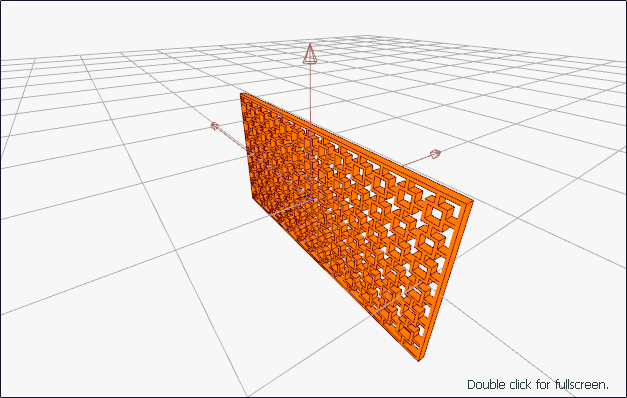

When the rotation angle Y 90, X and Z 0 |
 |

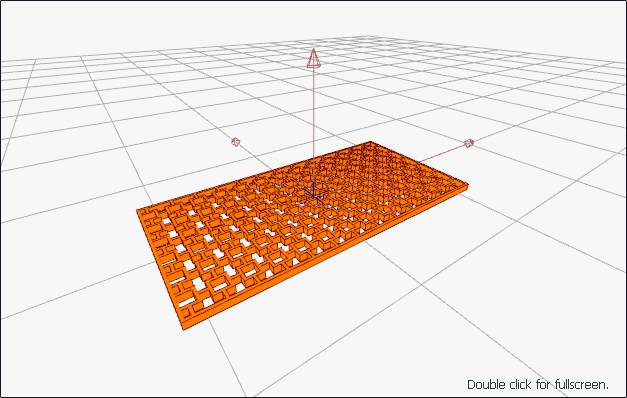

When the rotation angle Z 90, X and Y 0 |
 |

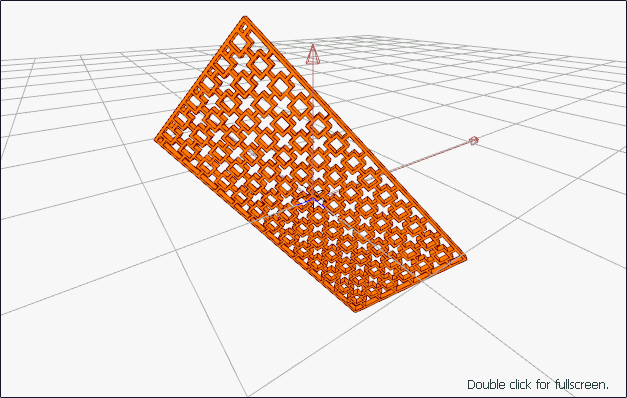

When the rotation angle is X 90, Y 45 and Z 135 |
 |
