With the Triangular Symmetric command, you can quickly draw the triangular symmetric truss type, which is one of the prepared truss types, and adjust your truss heights from its settings.

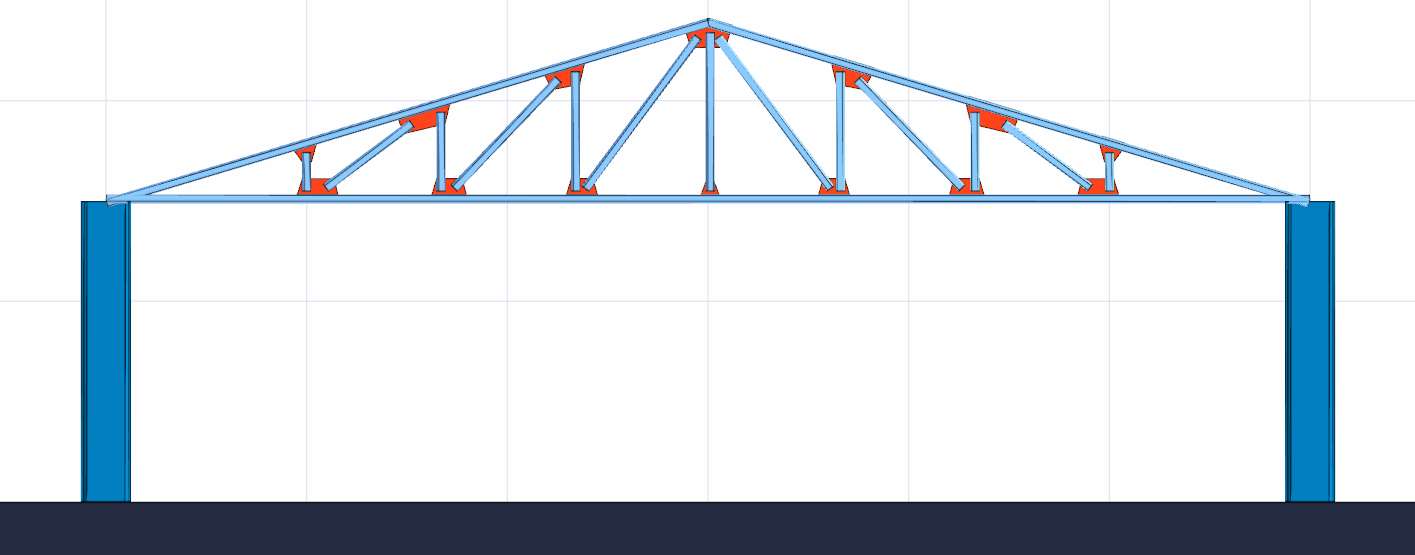

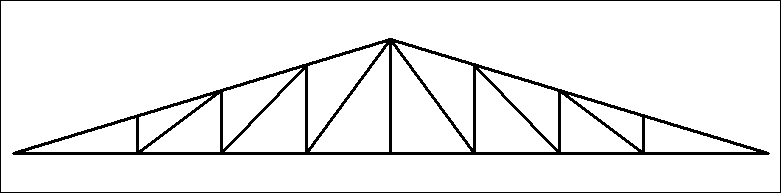

Triangular Symmetric Truss Schematic Drawing:

Location of the Triangular Symmetric Command

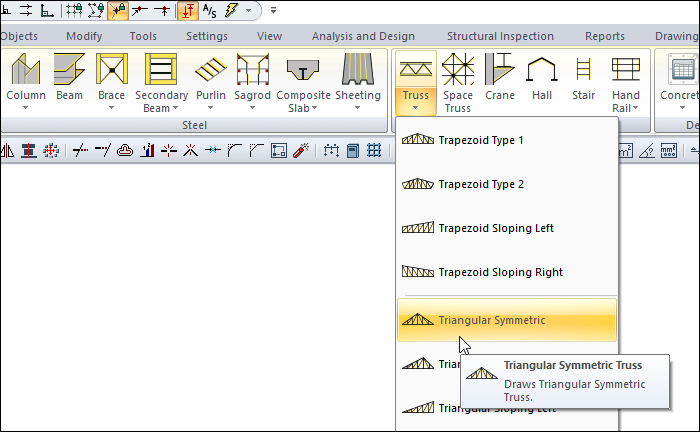

You can access it from the ribbon menu Steel tab Macro heading.

Usage Steps

  • Click on the triangular symmetric command.

  • Open the Truss Settings dialog by clicking the Settings icon from the Trusses toolbar .

  • In the Heights tab , enter the heights h4 for triangular symmetric.

  • Click the OK button to close the dialog.

  • Move the mouse cursor over the column. When the cursor changes shape, click the left mouse button. When the cursor changes shape, click the left mouse button.

  • After you have determined the first point of the truss, put the cursor on the second column and create your second point. The program will create trusses.

You can find detailed information about the truss settings from the truss settings heading.

Usage step

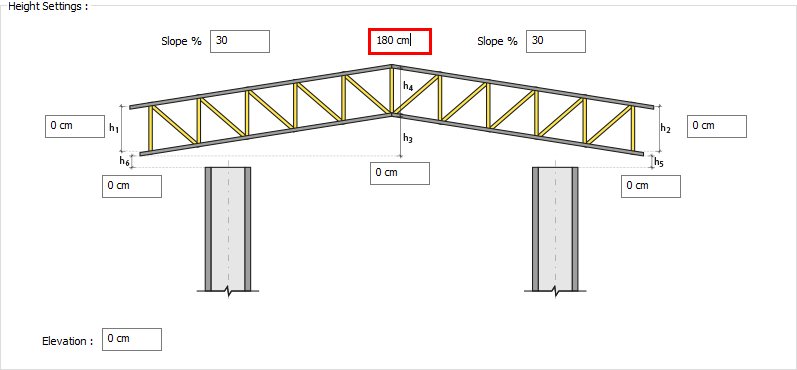

Entering 180 cm for h4 in the height tab of the truss settings

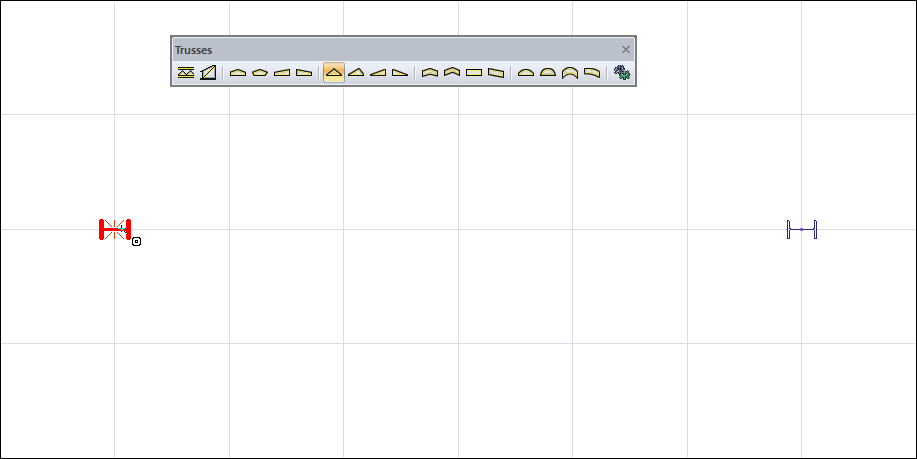

Creating the first point of the truss

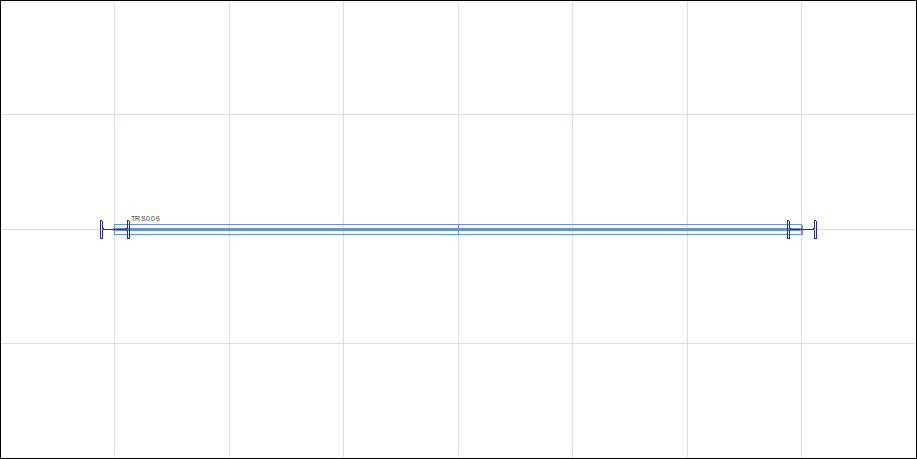

Determination of the second point of the truss and the formation of the truss
