Creating a Roof Window
With the Roof Window command, parallel windows compatible with the roof pitch are created. In order to draw a roof window, a roof is needed first.
Location of Roof Window Command

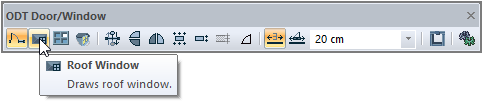

You can access the roof window command from the ODT door/window toolbar.
![image-20240530-064054.png](../__attachments/1061683876/image-20240530-064054.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

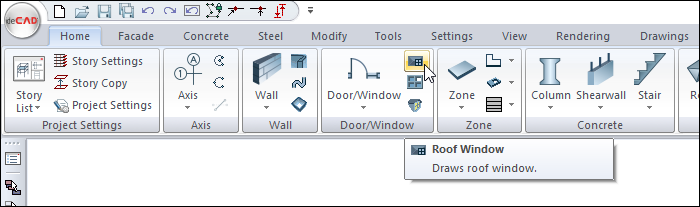

You can also access it under the ribbon menu Home tab Door/Window title in the ideCAD Architectural.
![](../__attachments/1061683876/image-20210209-070326.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
Usage Steps
To define a roof window;
With the roofCreating a Roofcommand, a roof is defined.
Click the Roof Window icon in the ribbon menu .
If necessary , the appropriate window is selected in the Door/Window Settings dialog by clicking the Settings icon .
Move the mouse cursor to any surface of the roof and click with the left mouse button.
Usage step |
---|

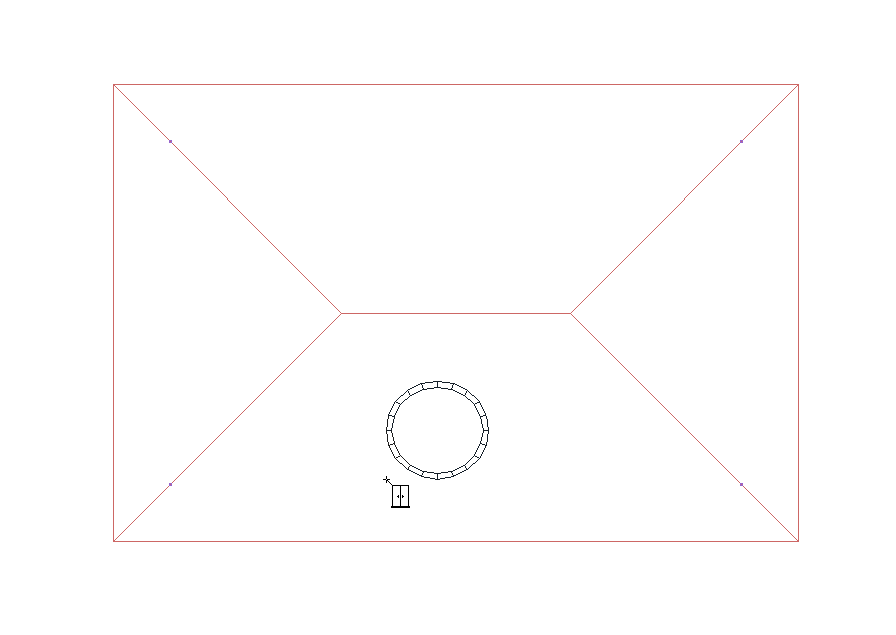

Roof window installation ![]() |

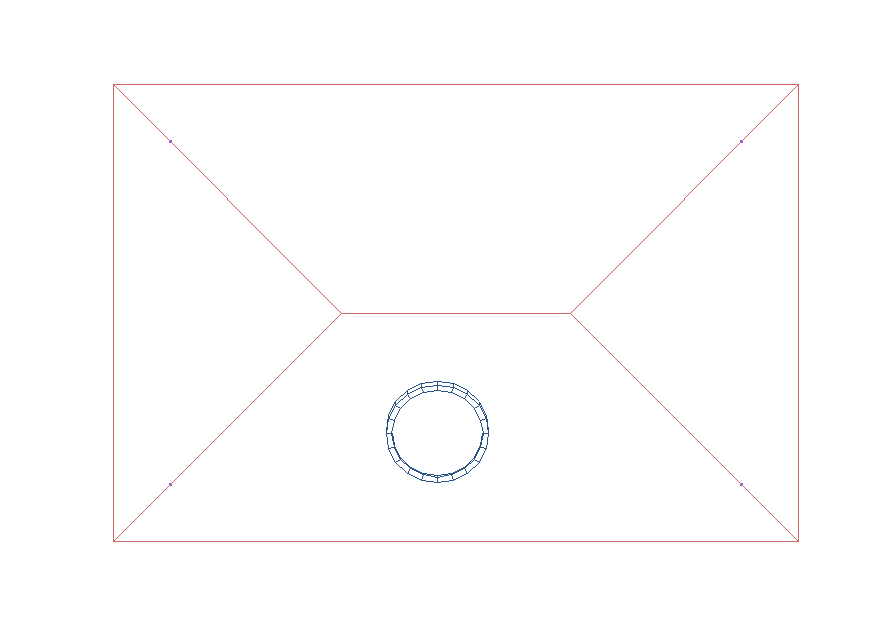

Roof window ![]() ![]() |
