Setting Partition Height

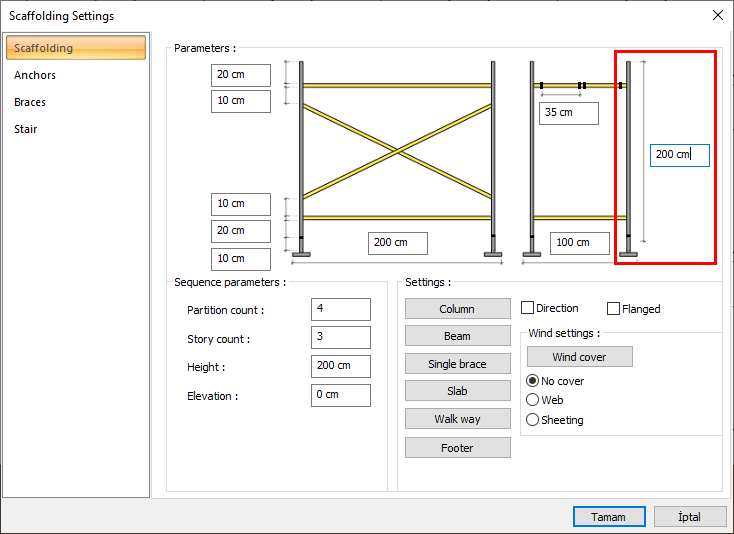

The partition heights are determined by the partition height settings. Partition height settings are accessed from the scaffolding tab of the scaffolding settings dialog.

Location of Partition Height Setting

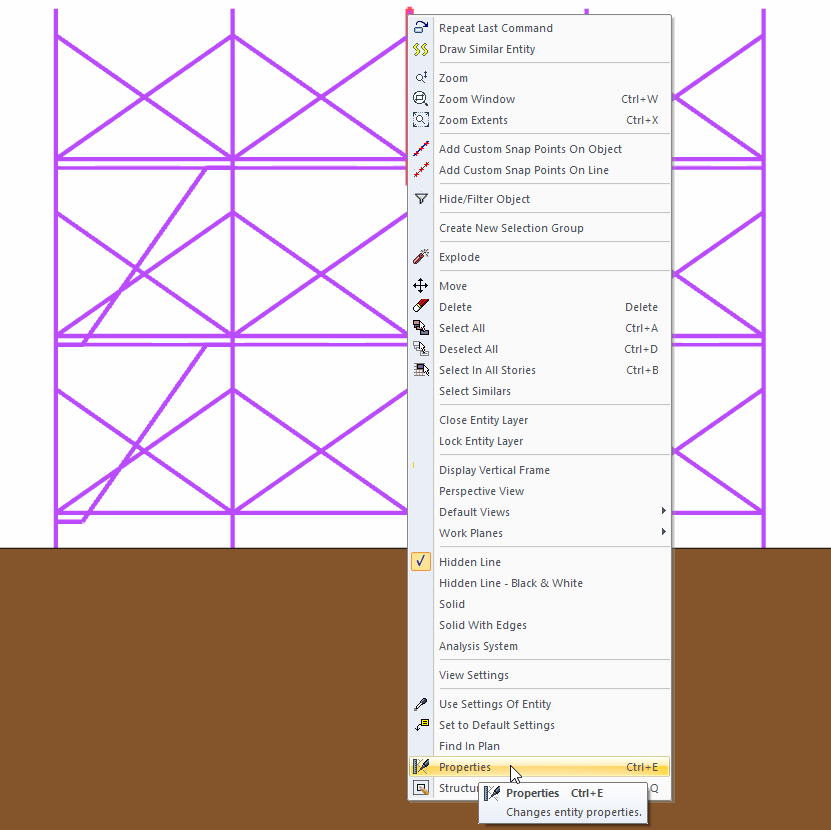

Select the scaffolding for which you want to change the partition height and click the right mouse button. Click Properties from the right-click menu that opens .

You can also access the scaffolding settings dialog by double-clicking on your scaffolding with the left mouse button.

Usage Steps

  • Enter the scaffolding settings dialog.

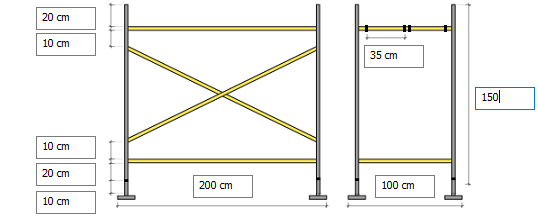

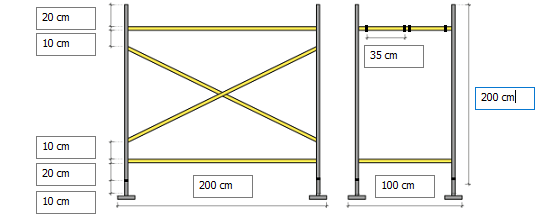

  • Enter the new height value in the partition height box.

  • Your partition height will change according to the value you enter.

Your scaffolding height will be calculated by the program and updated automatically according to the partition height you entered.

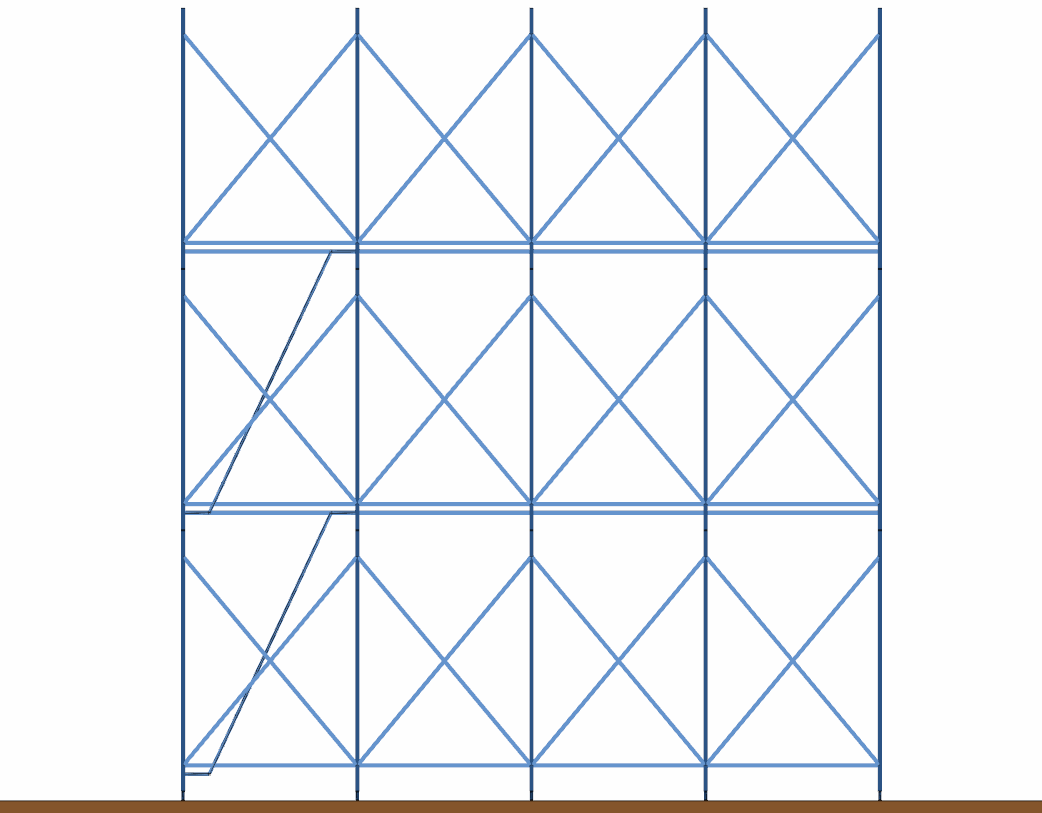

Scaffolding view before changing partition height

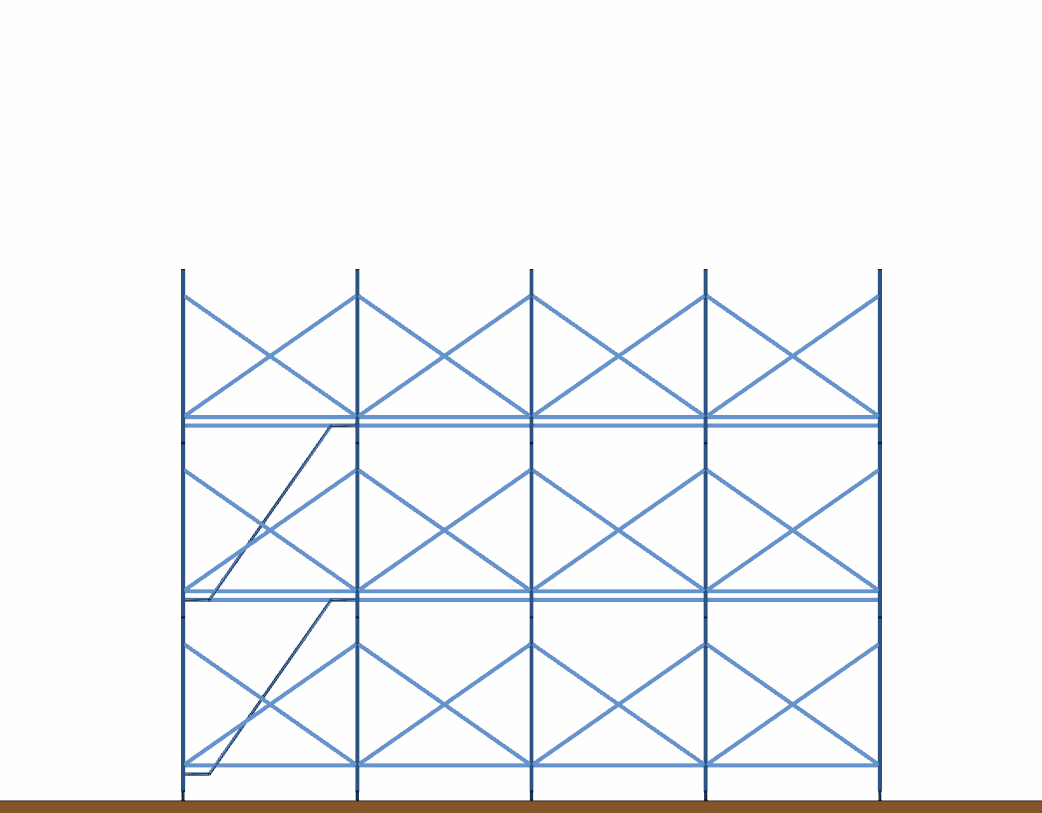

Scaffolding view after changing partition height to 300

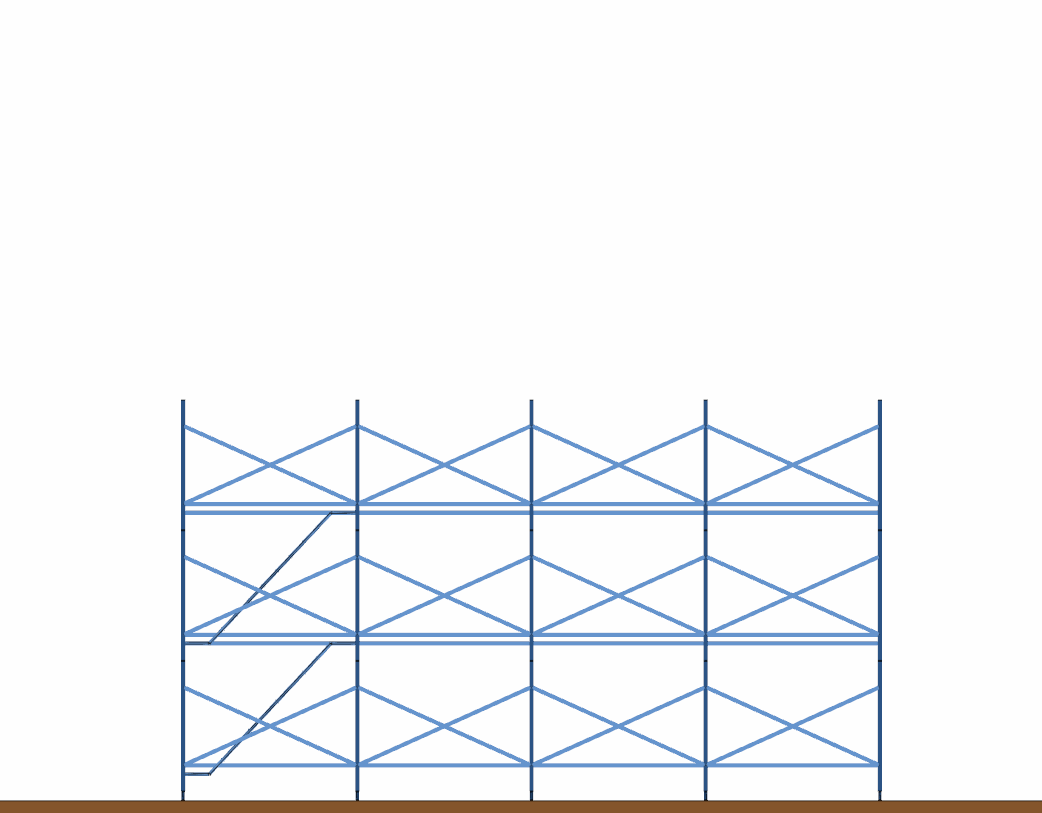

Scaffolding view after changing partition height to 150
