Point-Linear Load Settings
The load values of the linear/point slab/raft foundation load are defined in the Point-Linear Load Settings dialog.
Location of Point-Linear Load Settings
You can access the Point-Line Load Settings by double-clicking with the left mouse button on the linear/point slab/raft foundation load you have drawn.

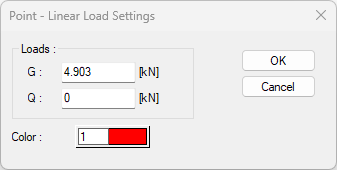

Point-Linear Load Settings Dialog
Specifications |
|---|
G  If the linear/point load to be defined will be a constant load, the value is written in the G column. |
Q  If the linear/point load to be defined will be a live load, the value is written in the Q column. |
Color  The drawing color of the linear/point load is adjusted in the plan. Clicking on the color box with the left mouse button, the mouse cursor is moved over the opened color palette. The key is released when the desired color is highlighted. The color box turns into the selected color. |
