Brace-Corner Connection Design Report
A sample of brace-corner connection design report according to AISC 360-16 is given below.

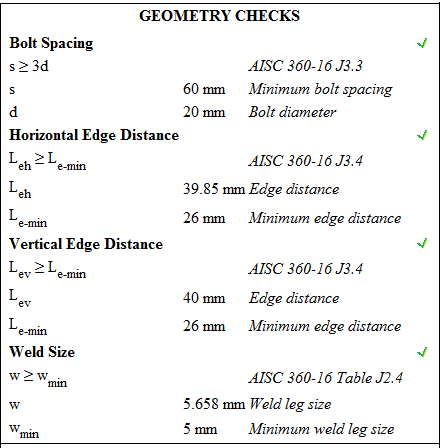

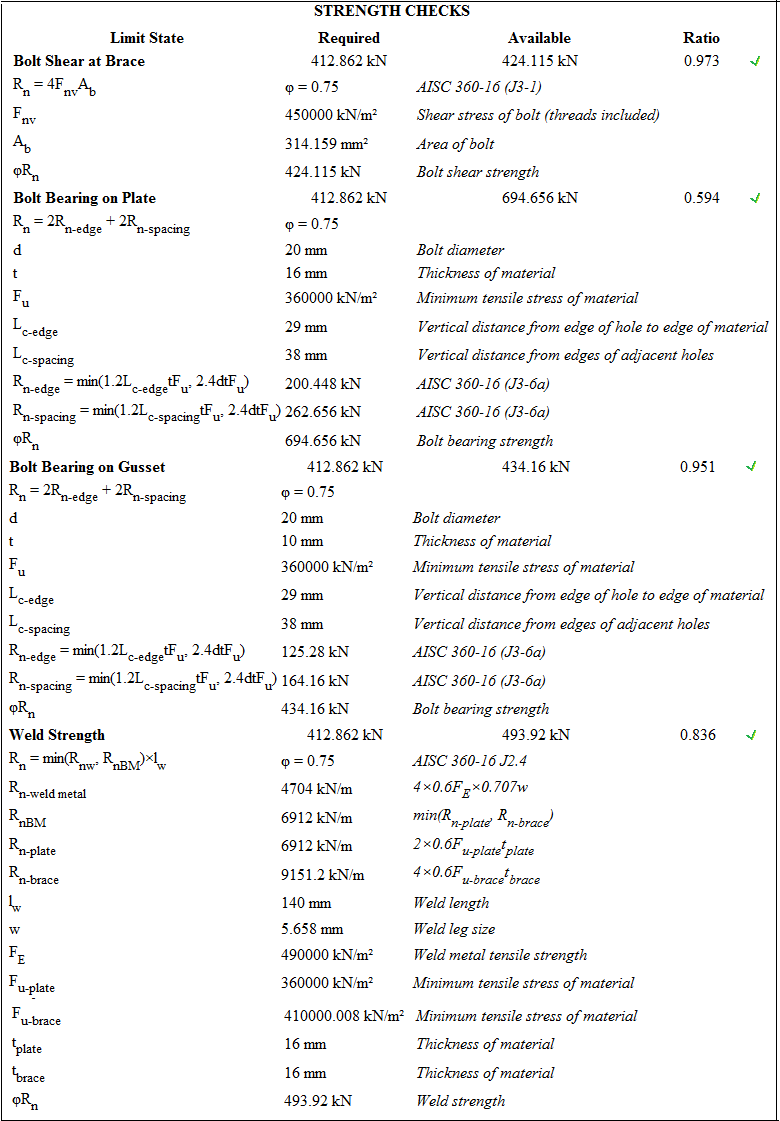

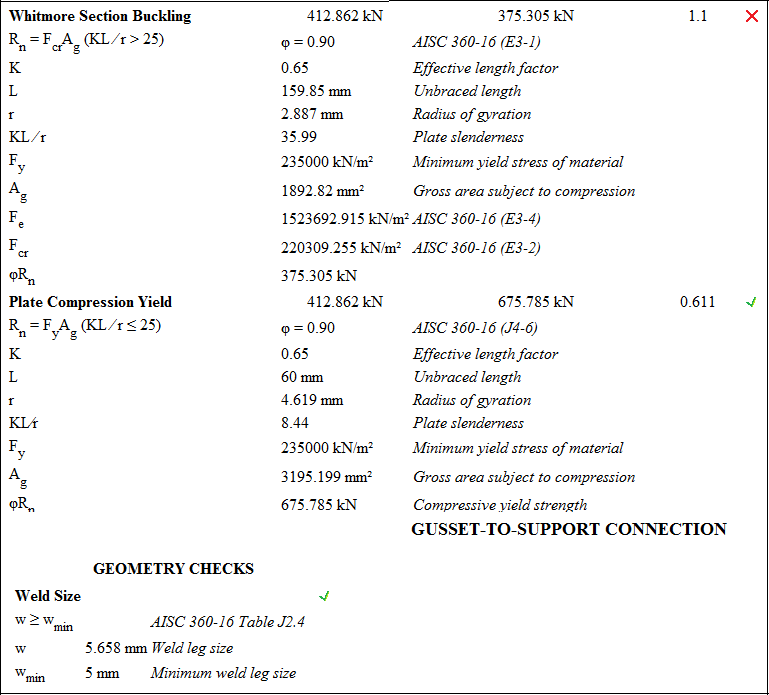

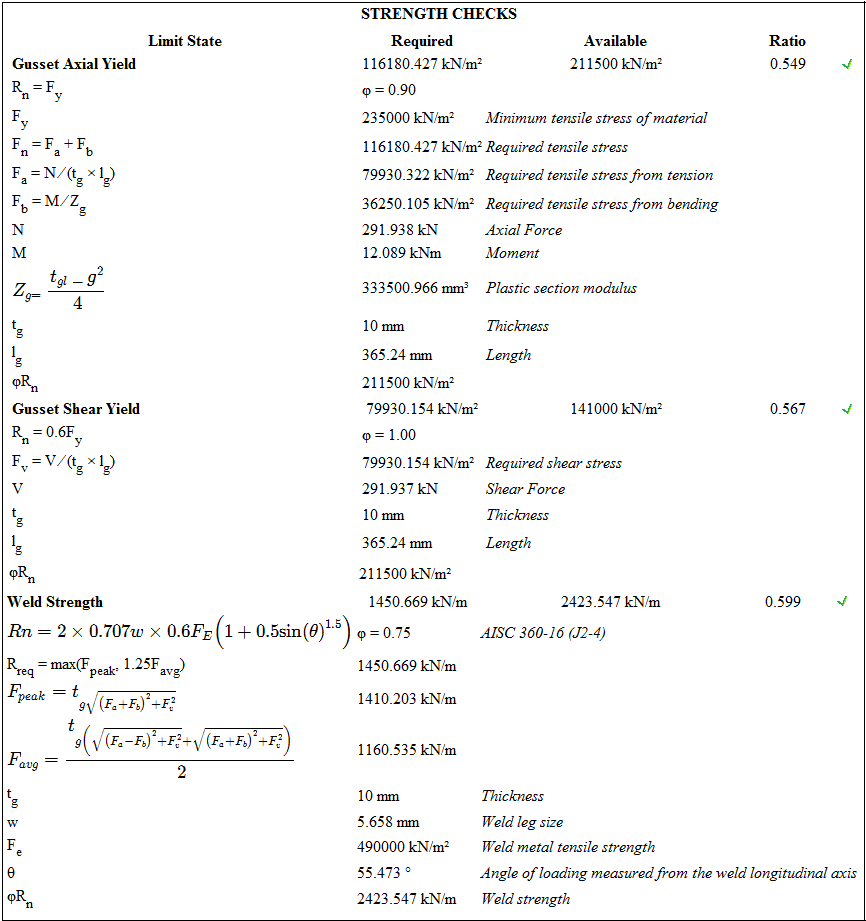

Brace-corner connection design limit states and geometry checks are done automatically according to AISC 360-16.
