Roof Plan Drawings

The Roof Plan Drawings command is used to prepare the roof plans drawings.

Location of the Roof Plan Drawings Command

You can access it under the Steel tab, Create Drawings heading.

Usage Steps

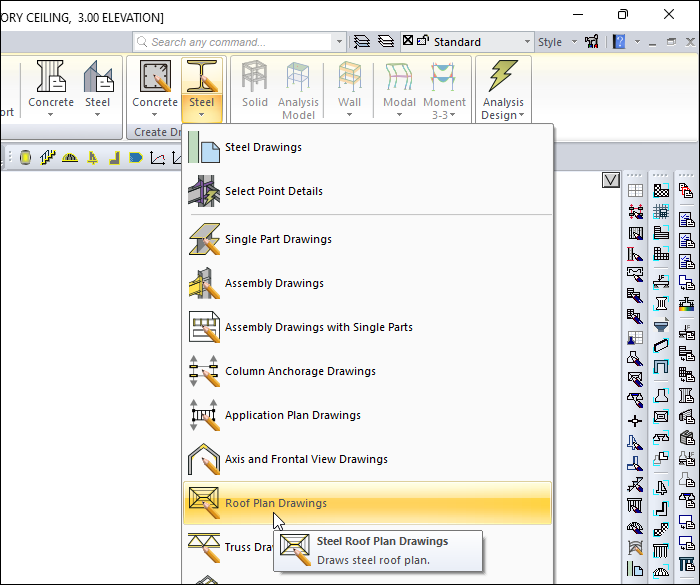

  • Click on the Roof Plan Drawings icon.

  • Roof plan drawings will be created.

  • Before creating the drawings, you can access the Steel Drawing Settings dialog by clicking the settings button from the steel drawings dialog . From this dialog, layout settings, scales, fonts, etc. You can access parameters related to steel drawings.

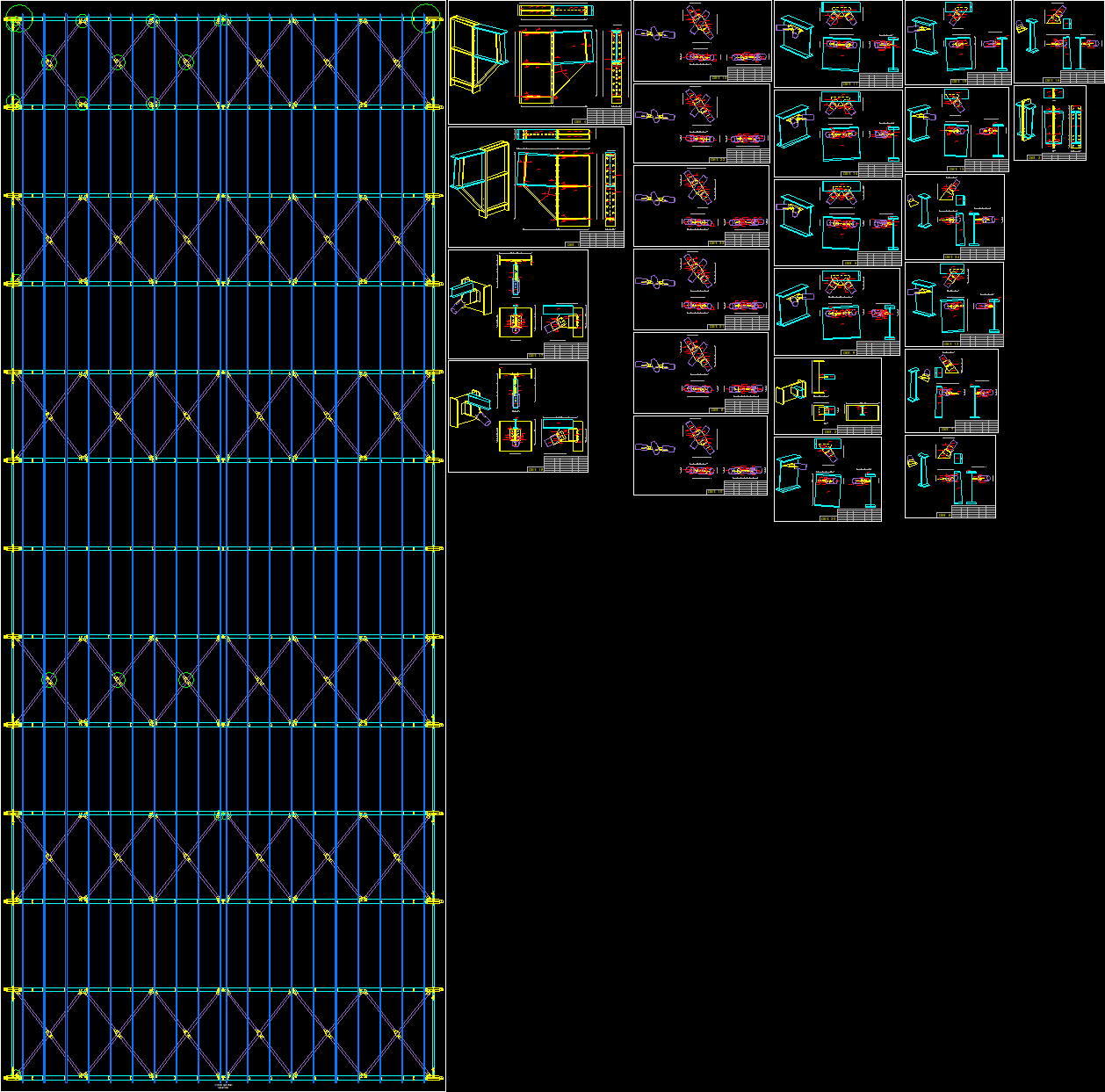

Sample roof plan drawing
