Brace-Center Connection Design Report

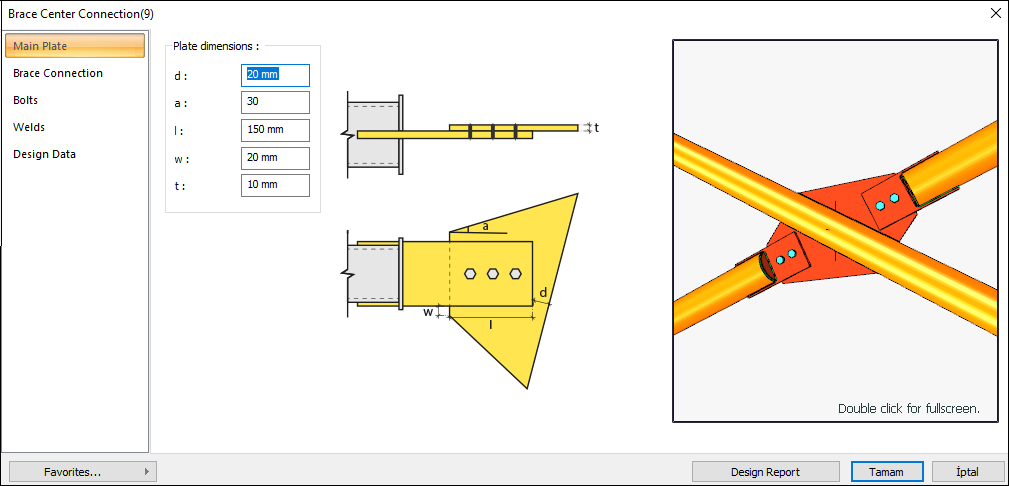

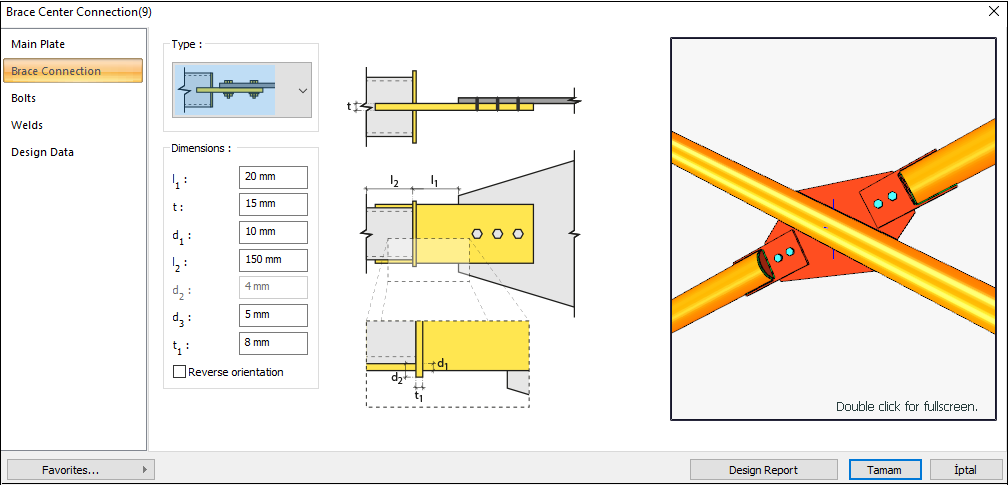

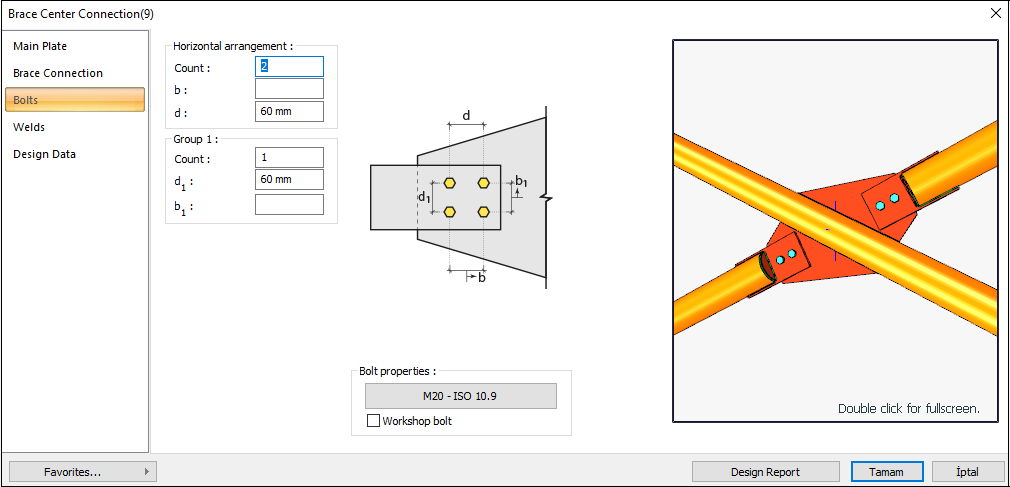

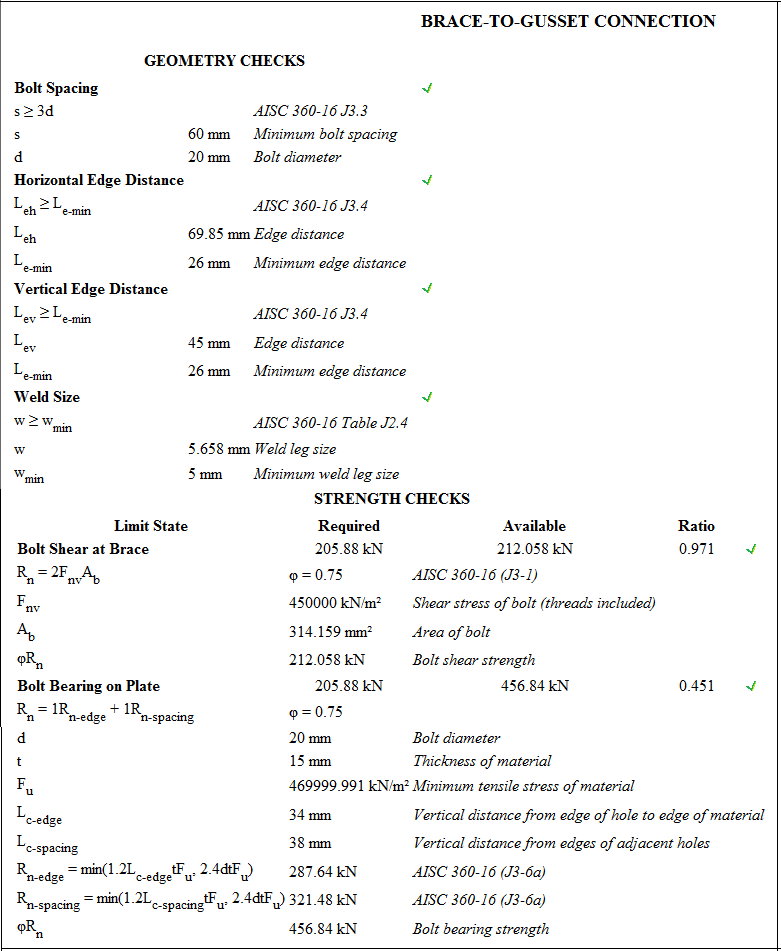

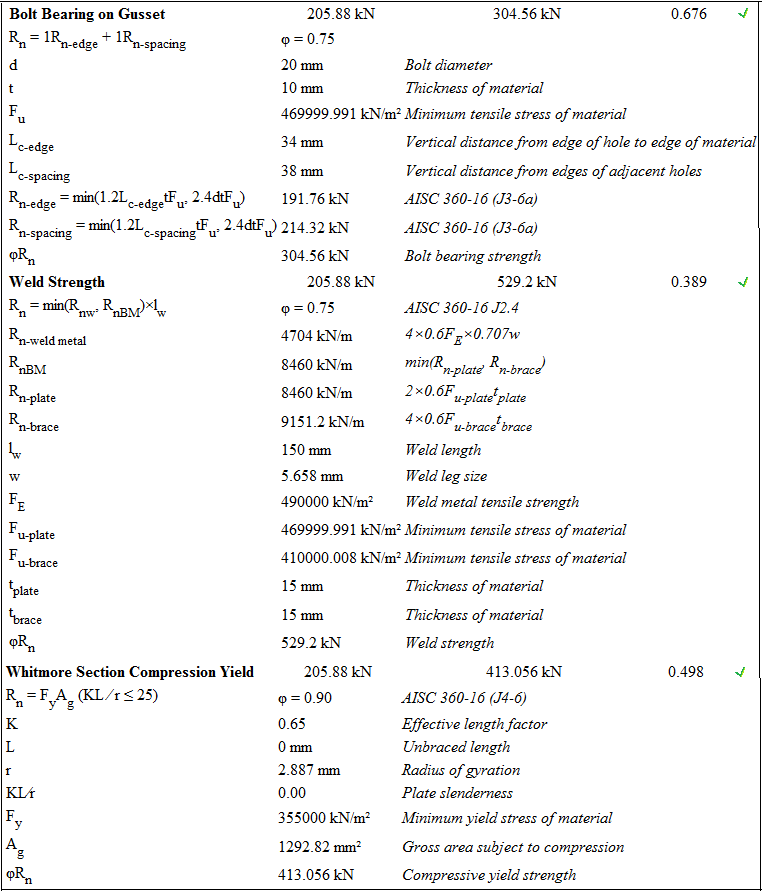

A sample of brace-center connection design report according to AISC 360-16 is given below.
Brace-center connection design limit states and geometry checks are done automatically according to AISC 360-16.
