Joining Plates Design Report

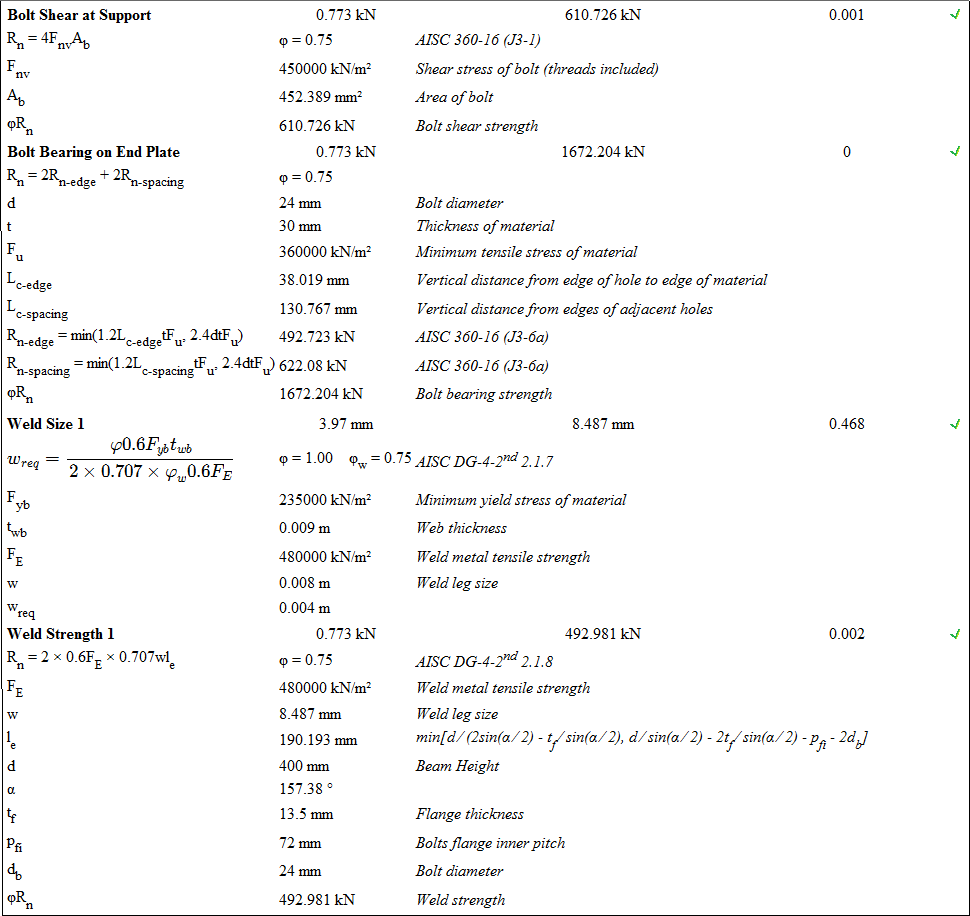

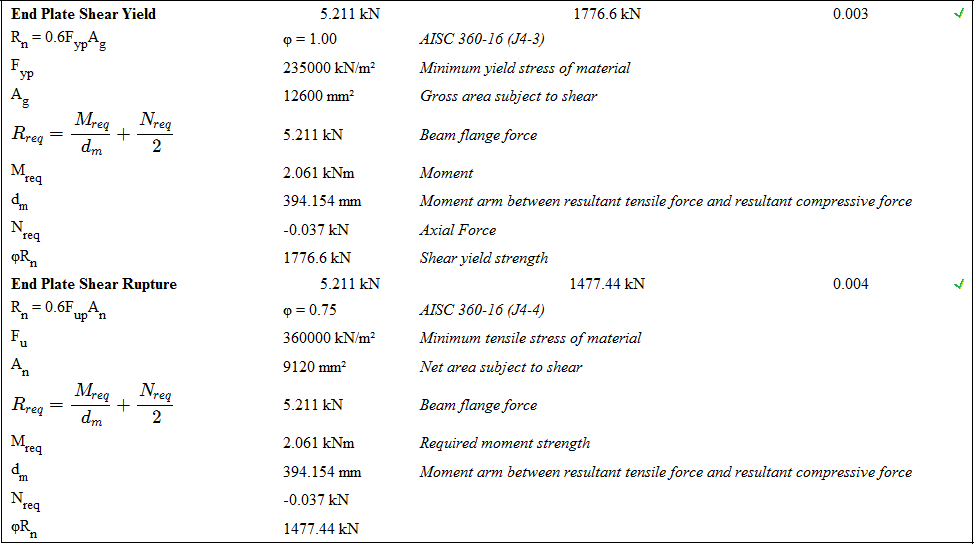

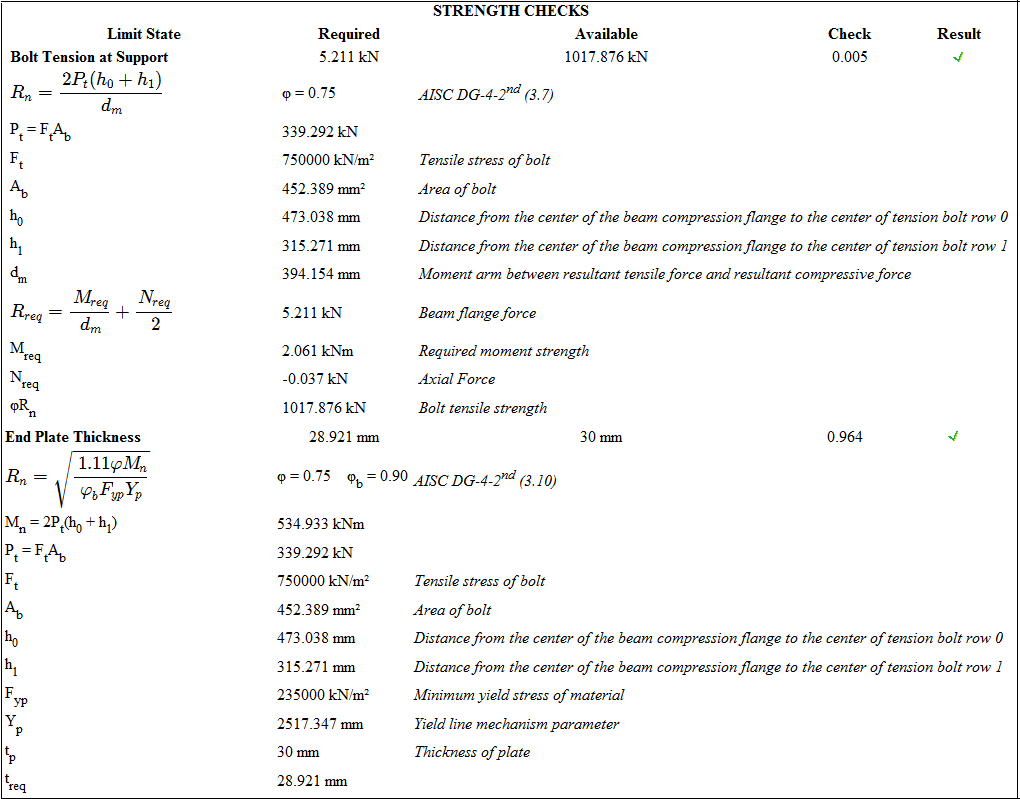

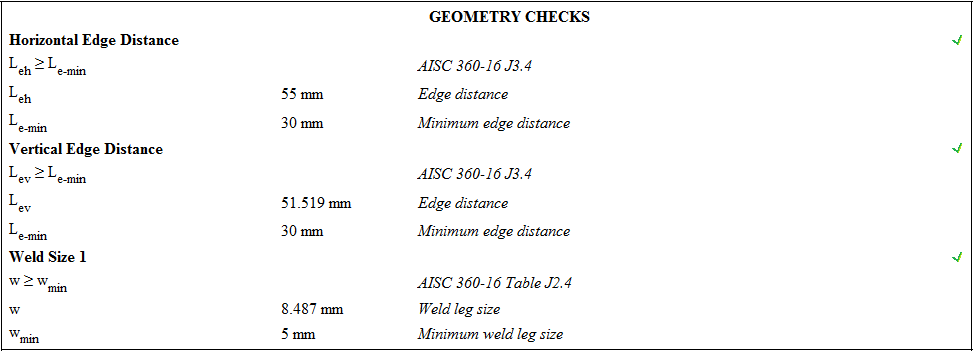

A sample of the joining plate connection design report according to AISC 360-16 is given below.
Joining plate connection limit states and geometry checks are done automatically according to AISC 360-16.
![](../__attachments/1128728685/1.png?inst-v=f19fc7cc-758e-4997-b5f0-444a3286777e)
![](../__attachments/1128728685/2.png?inst-v=f19fc7cc-758e-4997-b5f0-444a3286777e)
![](../__attachments/1128728685/4.png?inst-v=f19fc7cc-758e-4997-b5f0-444a3286777e)
![](../__attachments/1128728685/3.png?inst-v=f19fc7cc-758e-4997-b5f0-444a3286777e)
