Creating a Cylinder

Cylinder is created from 3D geometric objects with the Cylinder command.

Cylinder Command Location

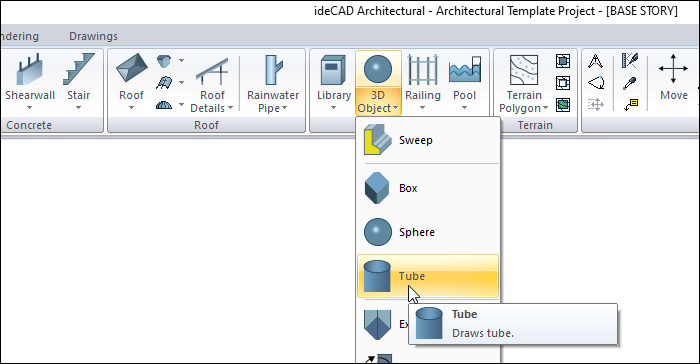

You can access the Cylinder command from the Tubes toolbar opened after entering the Tube command under the Objects title of the Ribbon menu Entry tab .

Usage Steps

  • Click the cylinder icon.

  • If you want, you can change the object properties by clicking the settings icon from the tubes toolbar.

  • At this stage, enter the object height in the value box on the auxiliary toolbar.

  • Click a point in the drawing area. The object will be formed.

Usage step

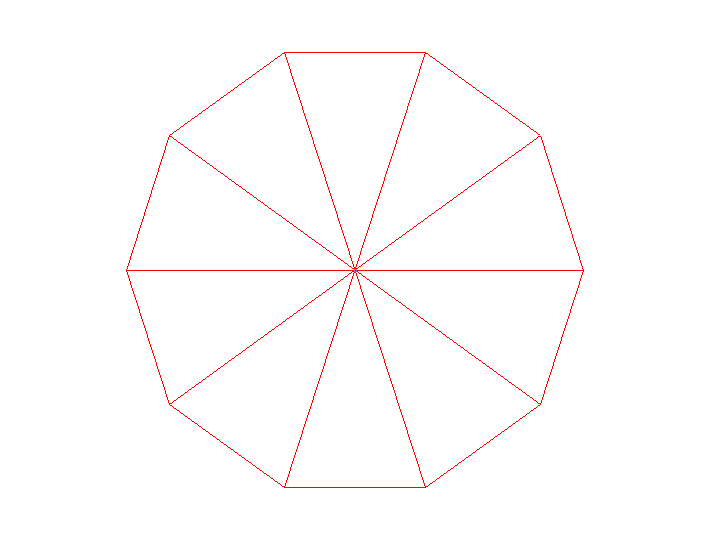

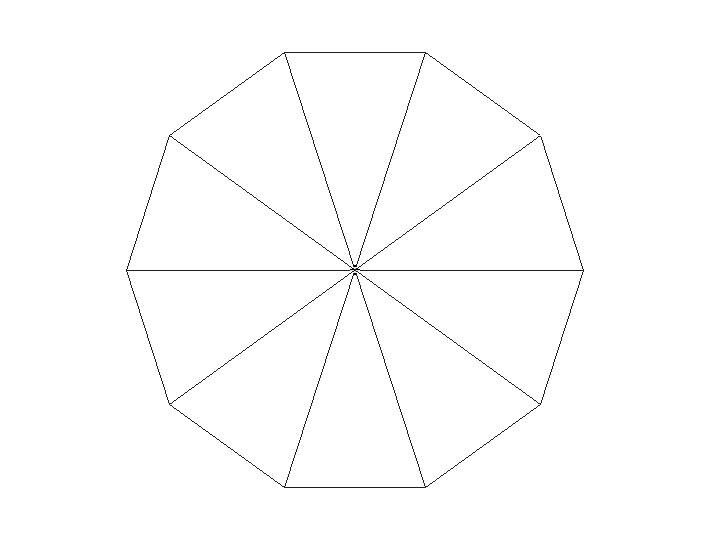

Previewing the object and determining its location

Entering the object height in the value box on the tubes auxiliary toolbar

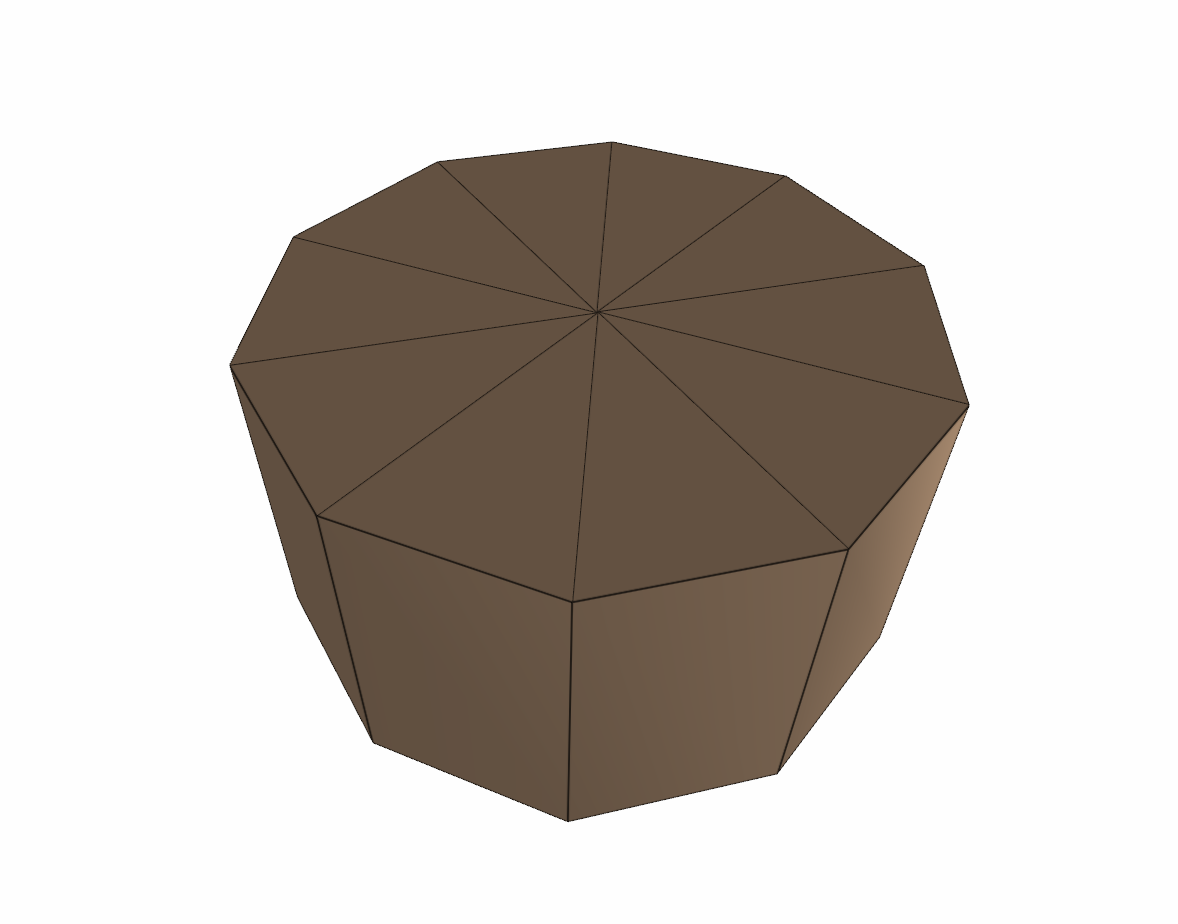

Creating the object by clicking the left mouse button
