Editing Slab Edge
The edit slab edge command is used to set offset distances from the edges of steel slabs.
Location of the Edit Slab Edge Command

Usage Steps
Click the Edit Slab Edge icon from the toolbar .
Select the slab edges you want to edit.
Click the right mouse button to finish.
In the window that opens, enter the offset distance.
Click the OK button.
Usage step |
---|

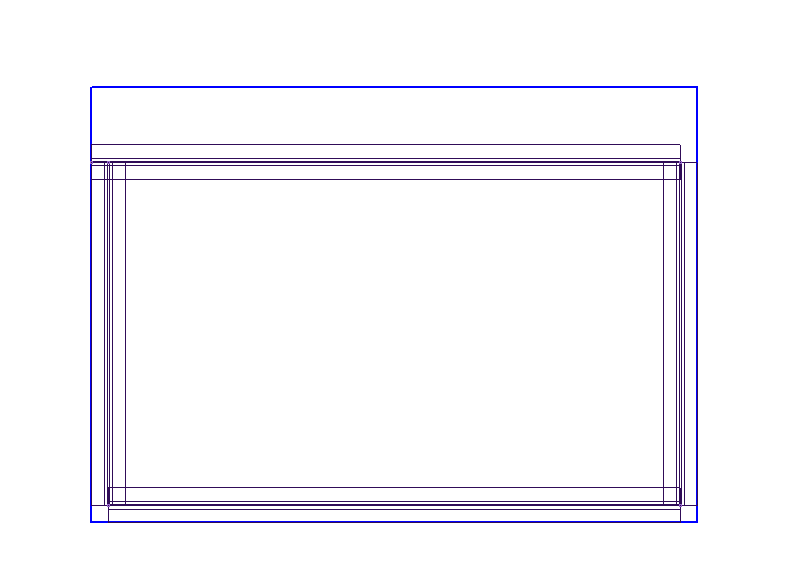

Before edit slab edge ![]() |

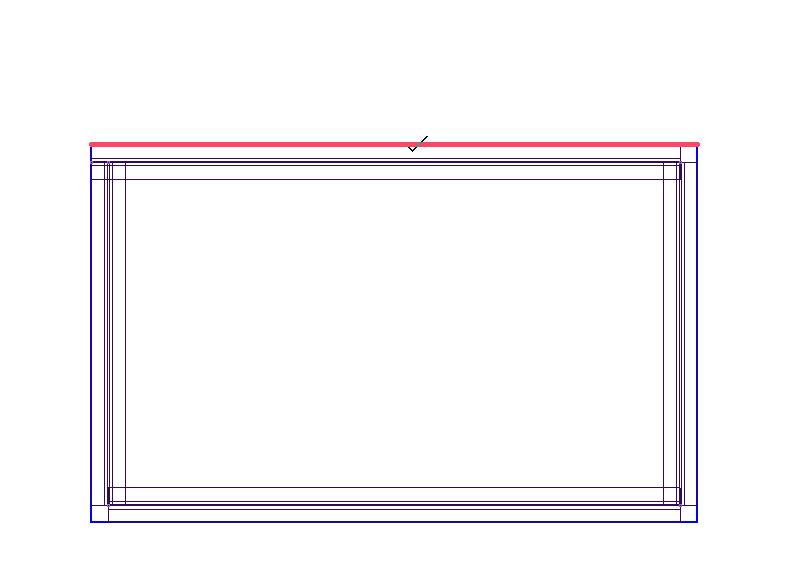

Selecting the slab edge to be offset ![]() |

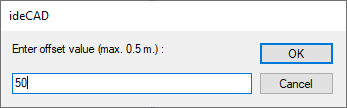

Entering offset distance ![]() |

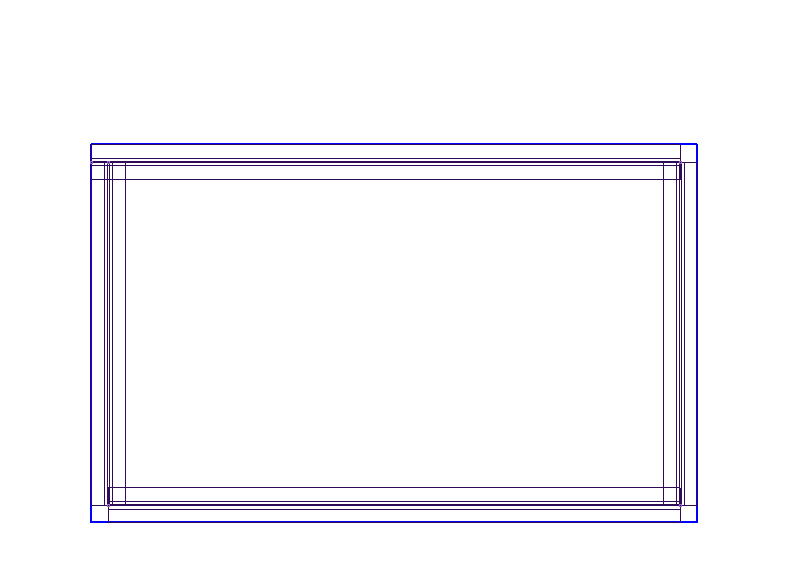

After edit slab edge ![]() |
