Ellipse and Elliptical Arc Settings
Ellipse and elliptical arc have the same settings. Line color, thickness, type and fill color settings are made in accordance with the architectural and structural project design.
Location of Ellipse/Elliptical Arc Command Settings Dialog
Ellipse/Elliptical Arc Command Settings
You can access the primitive objects that appear on the screen after running one of the Ellipse/Elliptical arc commands by clicking the Settings icon in the auxiliary toolbar.
Ellipse/Elliptical Arc Object Settings

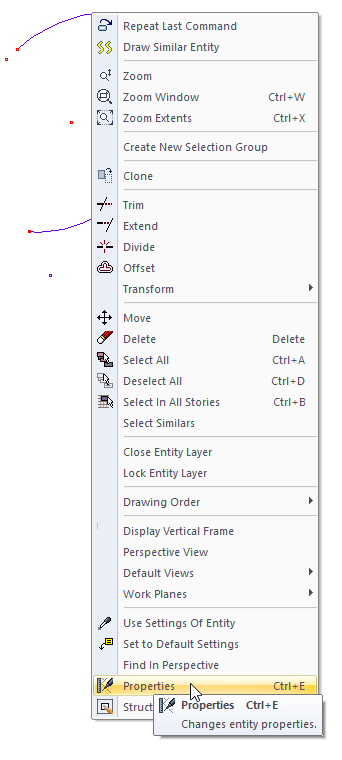

Select the ellipse or elliptical arc you want to enter its settings and click the Properties line from the menu that opens by clicking the right button of the mouse.

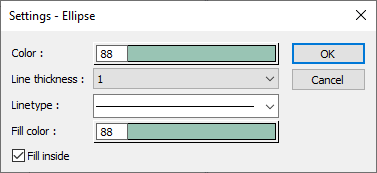

Ellipse/Elliptical Arc Command Settings
Specifications |
Color  Sets the color of the ellipse/elliptical arc. When the color box is clicked, the appropriate color is selected from the window that opens. |
Line thickness  Line thickness is selected. The appropriate thickness is selected from the drop-down list when the down arrow button next to the box is clicked. The thickness selected here is only valid on the screen. It does not affect drawing printouts. |
Linetype  Line type is selected. When the down arrow button next to the box is clicked, the appropriate line type is selected from the drop-down list. |
Fill color  It becomes active when the fill inside option is checked. When the color box is clicked, the appropriate color is selected from the pop-up window. |
Fill inside  Fillls the inside of the selected object. |
