Calculate Contour
Contour lines according to the project can be regenerated automatically with the Calculate Contour command. ideCAD will create all contour lines in the project as a polygonal area, taking into account the borders of the three-dimensional drawings.
Location of the Calculate Contour Command

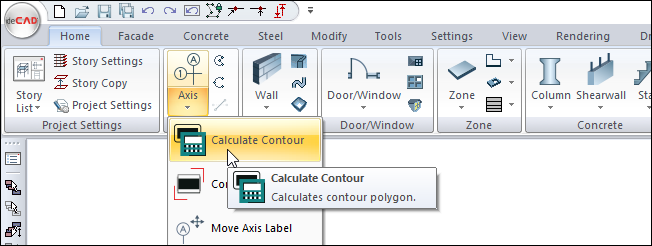

You can access it under the ribbon menu, Home tab, Axis title in the architectural program.
![](../__attachments/2081554517/image-20210305-075217.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

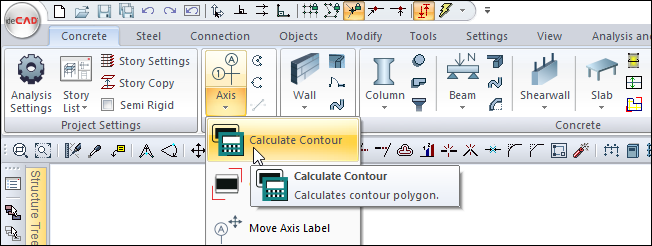

You can access it under the ribbon menu, Concrete tab, Axis title in the structural program.
![](../__attachments/2081554517/image-20210305-075316.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
Usage Steps
Click the Calculate Contour icon.
The ideCAD will automatically edit the contour lines taking into account the boundaries of the three-dimensional drawings.

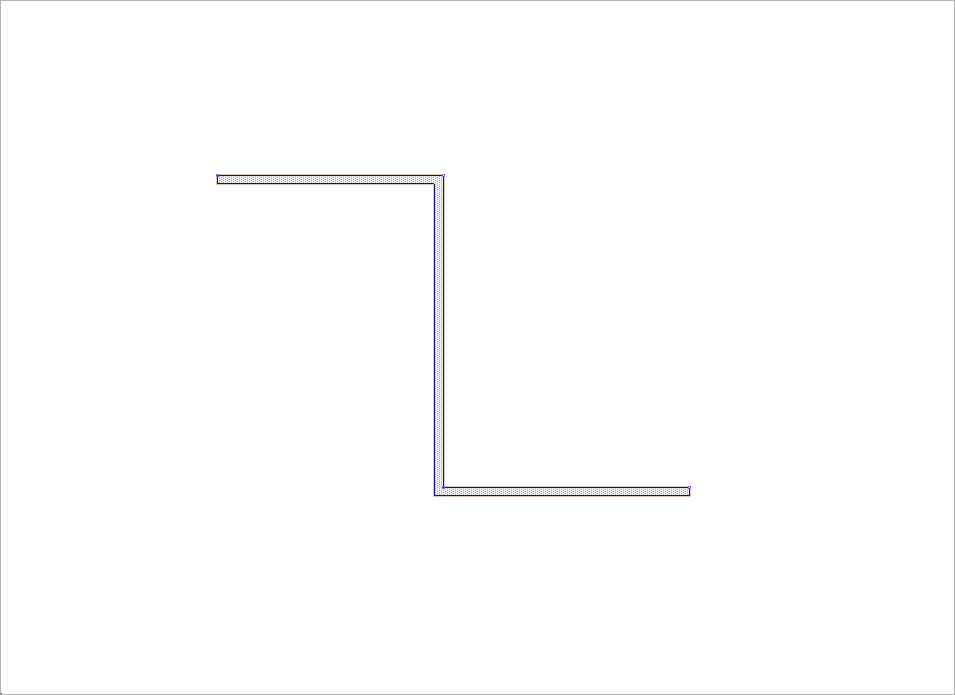

Available contour lines ![]() |
Contour lines after the calculate contour command ![]() |
