Add Lines to Edges

Hatch edges lines are created by activating the Add lines to edges command.

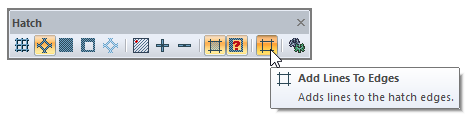

Location of the Add Lines to Edges Command

You can access it from the Hatch toolbar that opens while the hatch is being created.

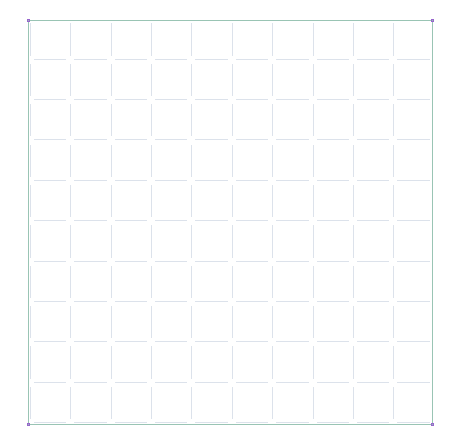

The add lines to edges is active

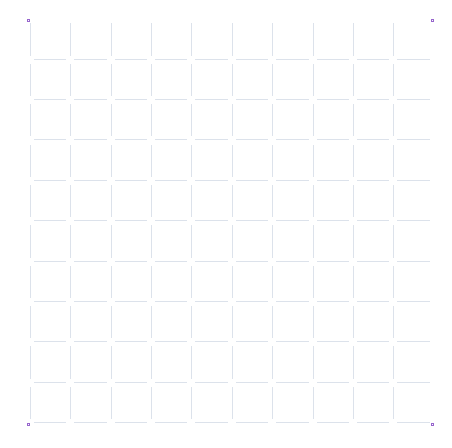

The add lines to edges is not active
