View of Report Pages

Some possibilities have been developed to examine the pages within the ideCAD Report program.

Page View

It is the option of displaying pages one by one on a screen or double-double on one screen.
You can perform the process by clicking the single page or double page icons from the toolbar in the report program.

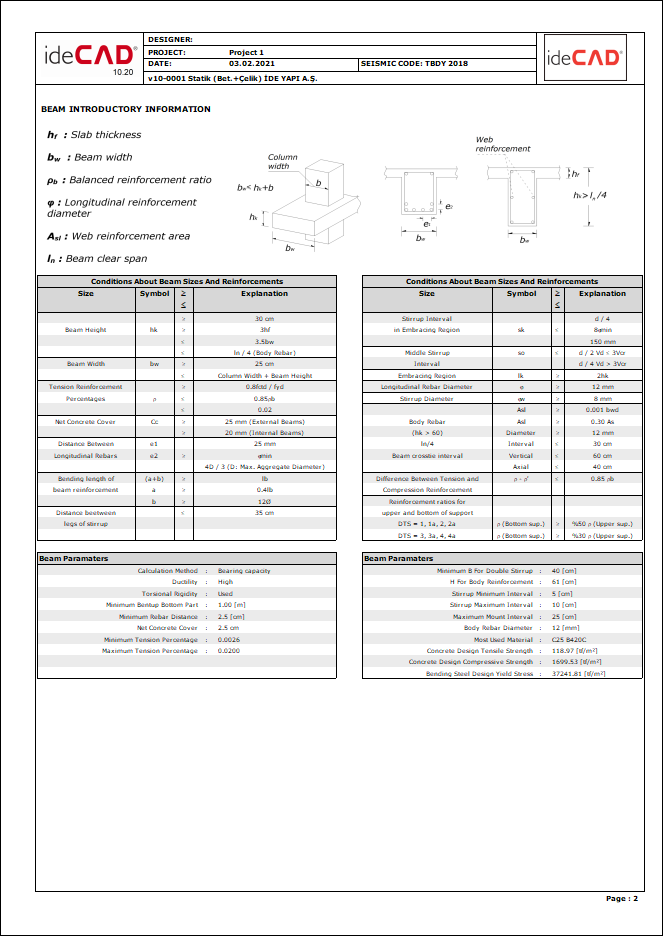

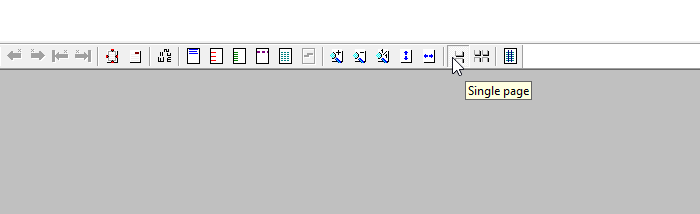

Single page view

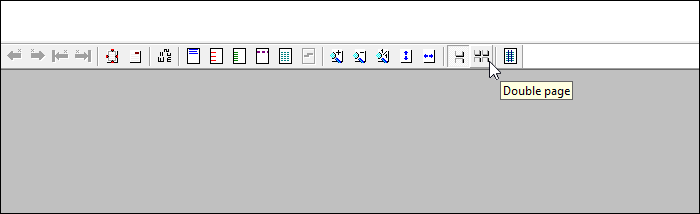

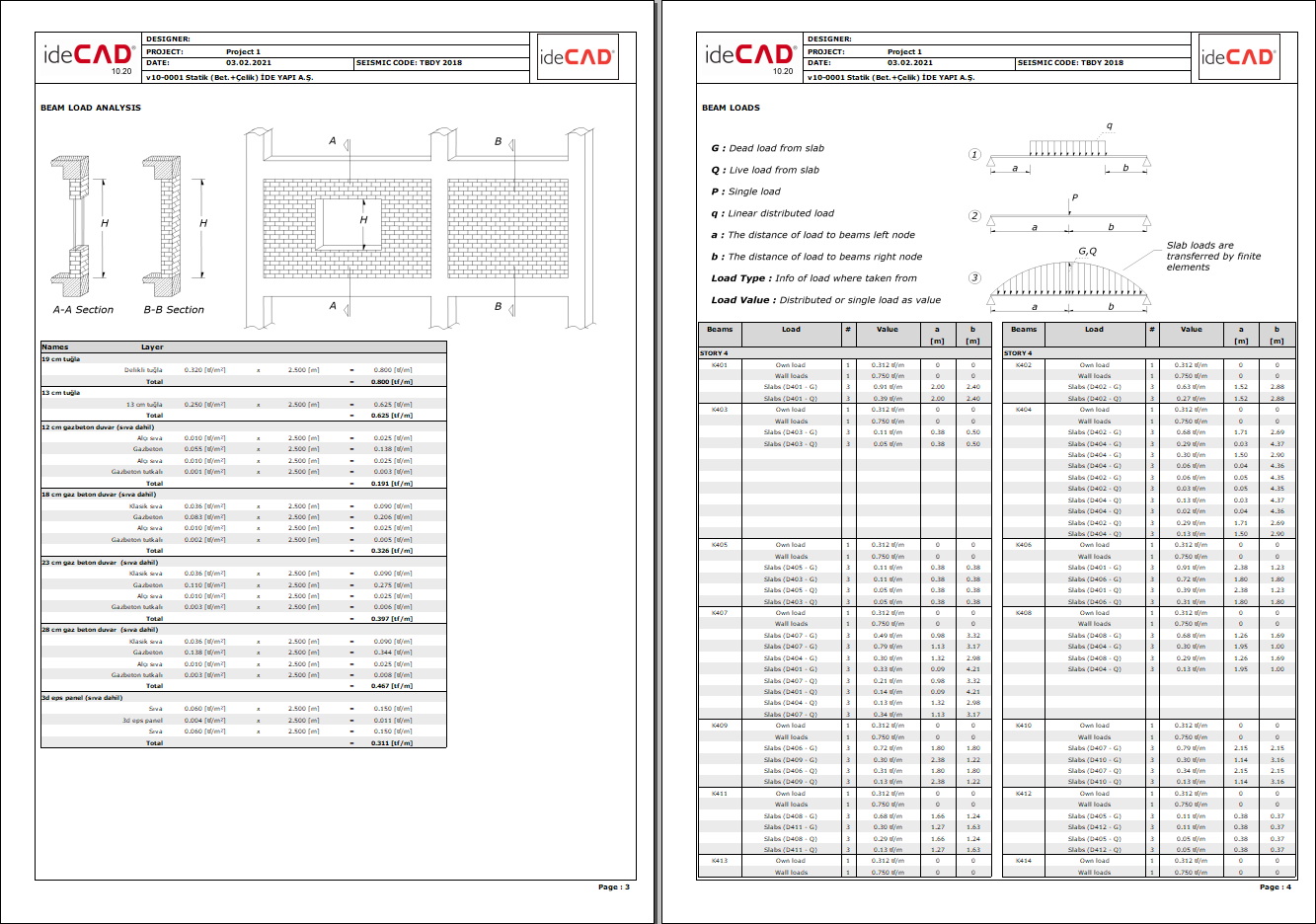

Double page view

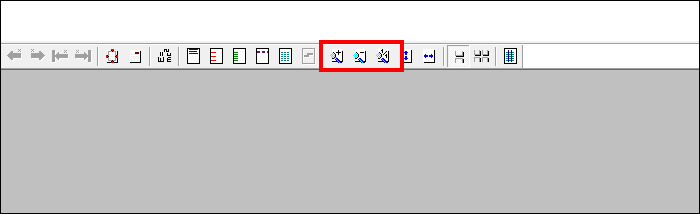

Zoom operations

Zoom operations zoom the page in or out.

Specifications

Zoom in

Zooms in on the page.

Zoom out

Zooms out on the page.

Zoom actual size

Page zoom returns the zoom out amount to its original rate.

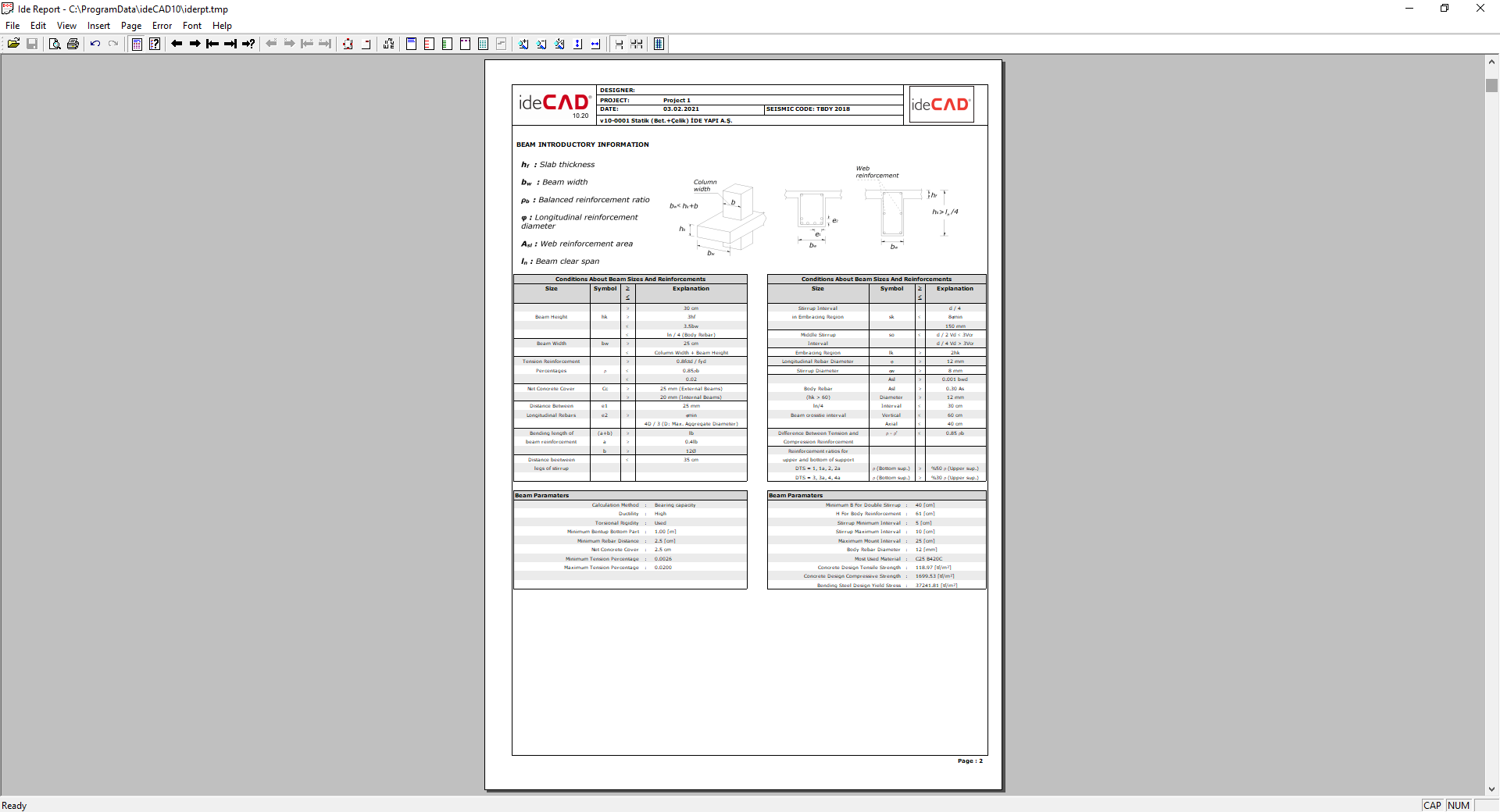

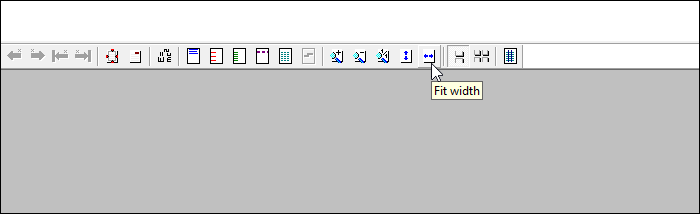

Fit to width/height

Zooms in or out on the image of the page to match the width or height of the screen. In the report program, you can run the command by clicking the icon from the toolbar.

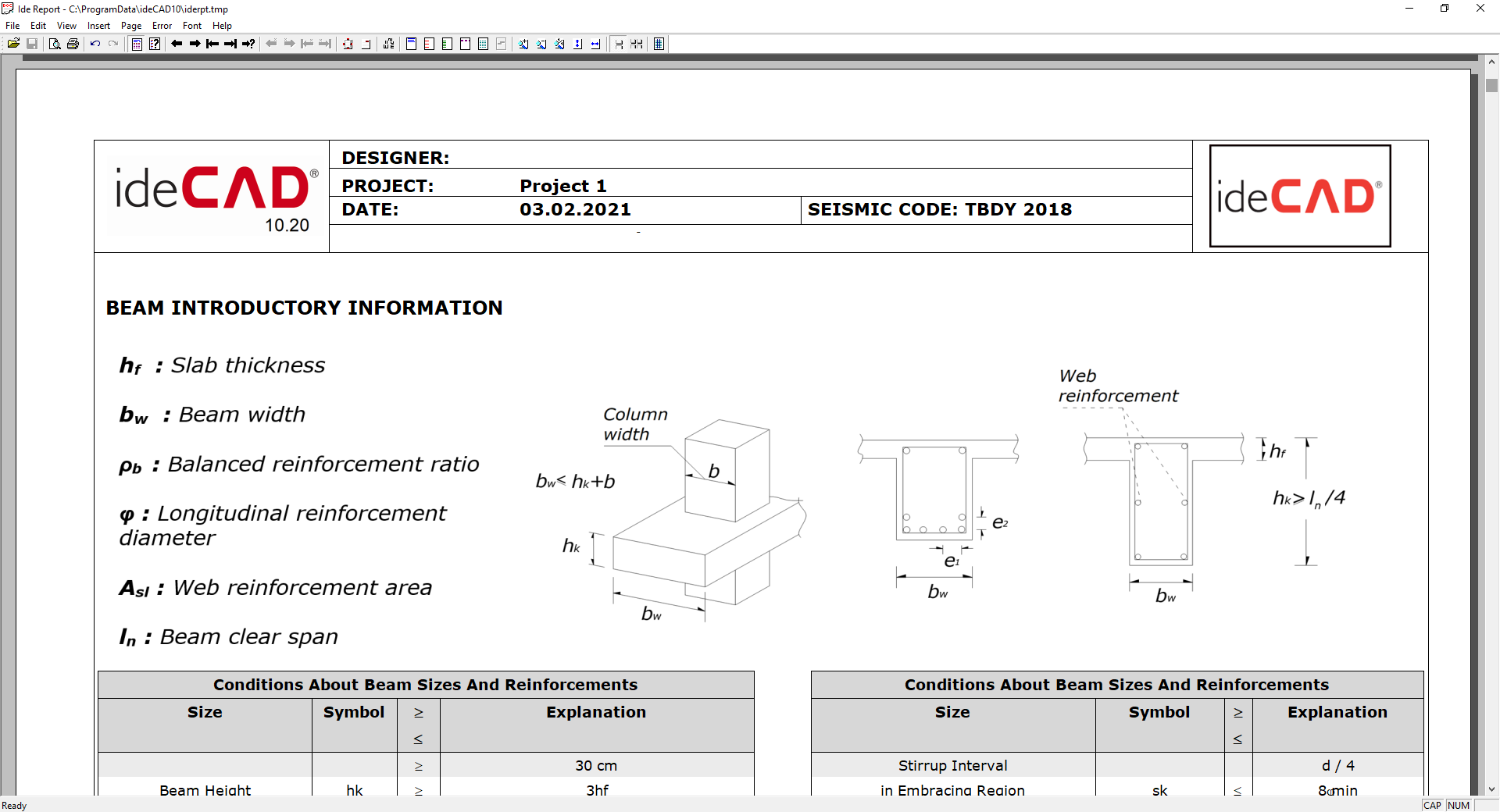

Fit the width

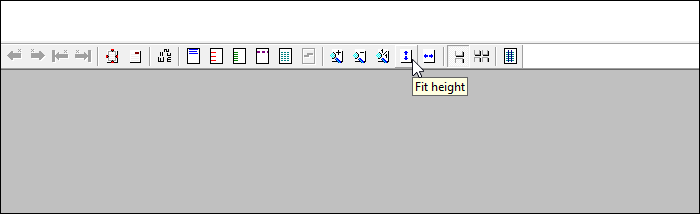

Fit height

Fonts and Font Sizes

The fonts and shapes of the reports can be set separately for each title and information.

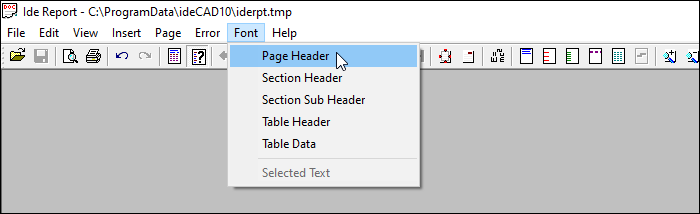

Location of Font Commands Location

From the font menu, you can access the page title, title, subject subtitle, table title, table information and selected text commands.

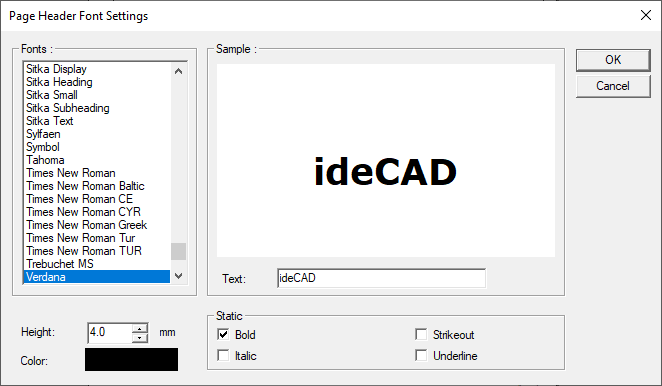

Font Settings

The font settings dialog for the command entered will open.

Specifications

Fonts

Fonts are listed. The desired font is selected.

Height

Font height value is entered.

Color

Font color is selected.

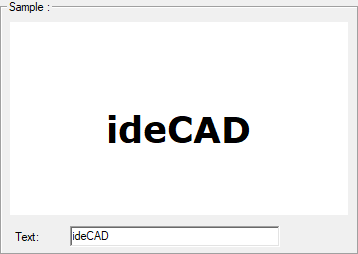

Sample

Includes a preview of the selected font and its properties.

Text

Text is entered for the example.

Static

One of the effect types is bold, italic, middle line, and underline. The selected effect is applied to the text.

Page Borders

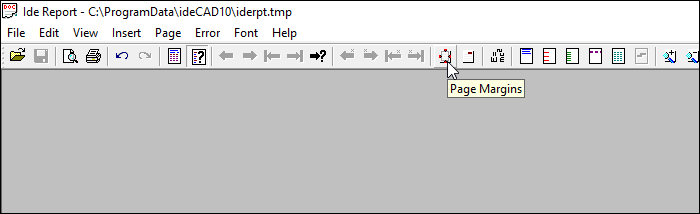

The size of the page margins in the report can be adjusted. Its Page Margins command is used. In the report program, you can run the commands by clicking the Page Margins icon from the toolbar.

Margin Settings

Specifications

Left

Enter the value for the space to be left on the left edge of the page.

Top

The value is entered for the space to be left at the top of the page.

Right

Enter the value for the space to be left on the right edge of the page.

Lower

The value is entered for the space to be left at the bottom of the page.

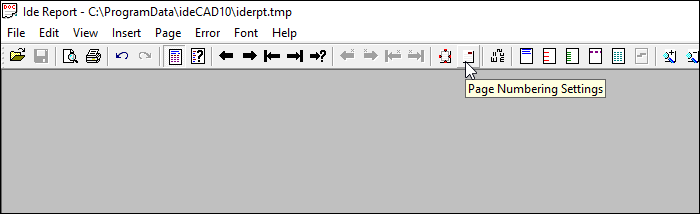

Page Number Settings

When a report is prepared, the program automatically arranges the page numbers of the report. If you want, you can edit the page numbers of the reports at any time. You can run the command by clicking the Page Number Settings icon from the toolbar .

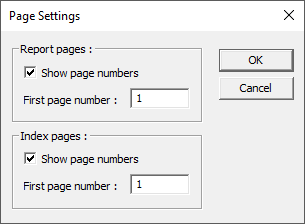

Page Settings

Specifications

Report pages

The page number is added to the report pages by selecting the option. The desired number is entered in the first page number line.

Index pages

The page number is added to the index pages by checking the option. The desired number is entered in the first page number line.

Tabs

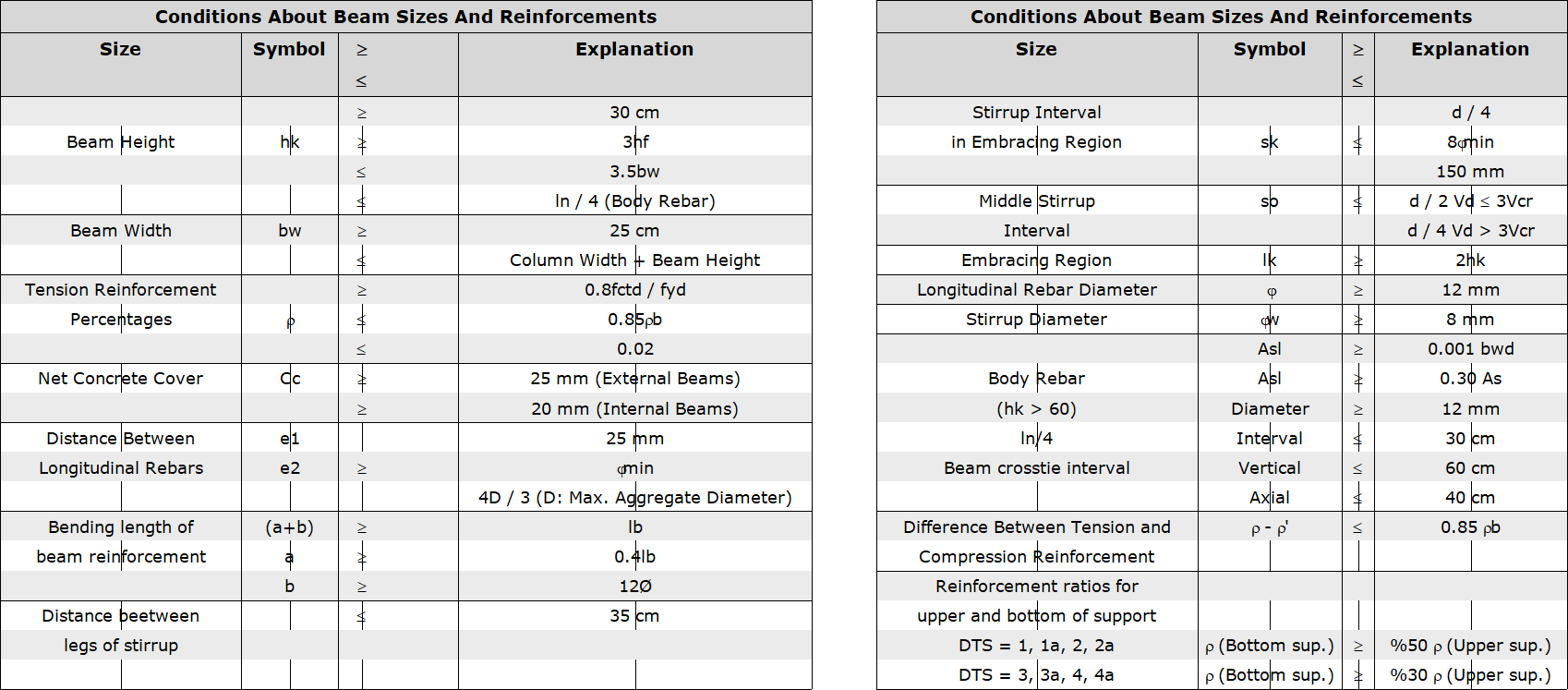

When the Tab icon is clicked in the report program , lines dividing the page are displayed on each page. These lines regulate the column widths of the tables.

Location of Tab Command

You can access the Tab command from the toolbar in the report program .

Usage Steps

  • Get a report.

  • Click on the tab icon. Lines will appear on the pages.

  • Drag any tab (line) by clicking with the left mouse button

  • The width of the column where the tab line coincides will also change.

  • You can close the lines by clicking the tab icon again.

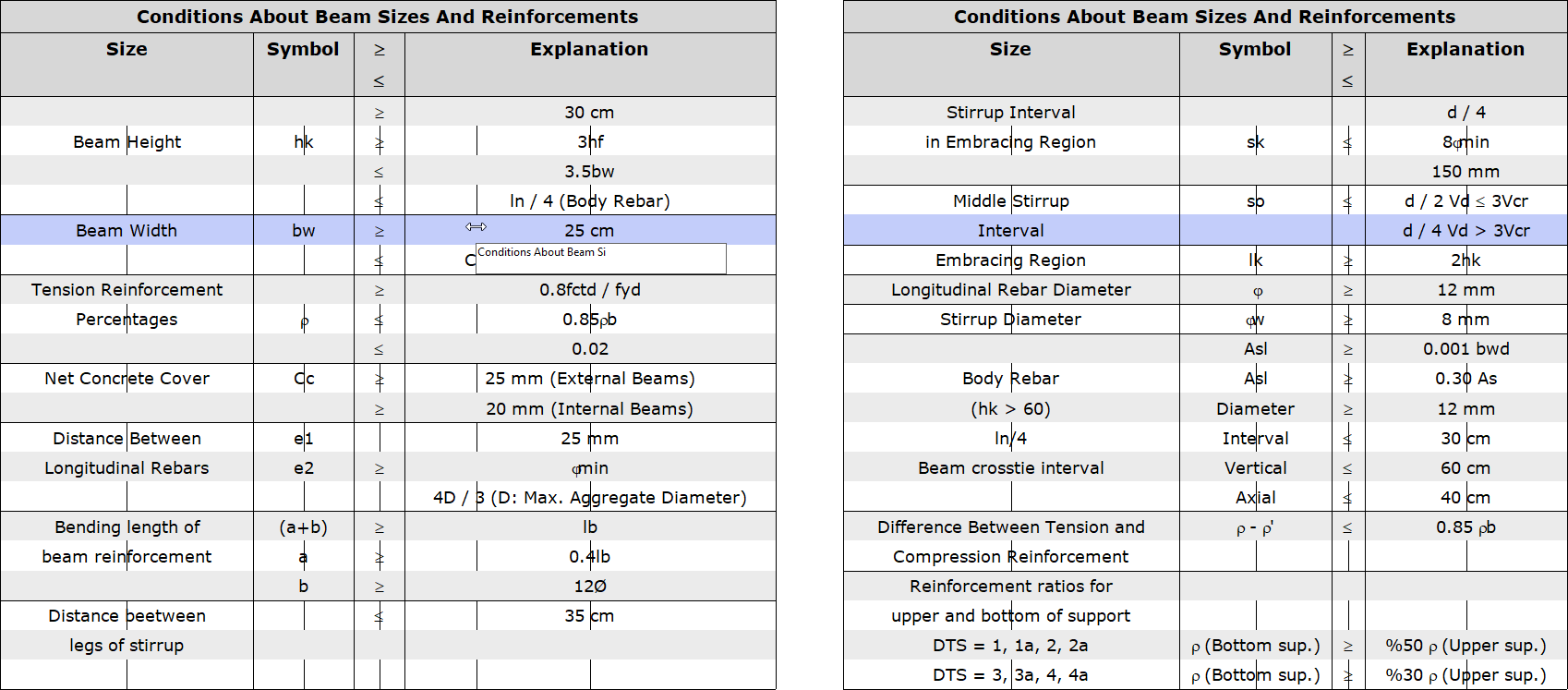

Usage Step

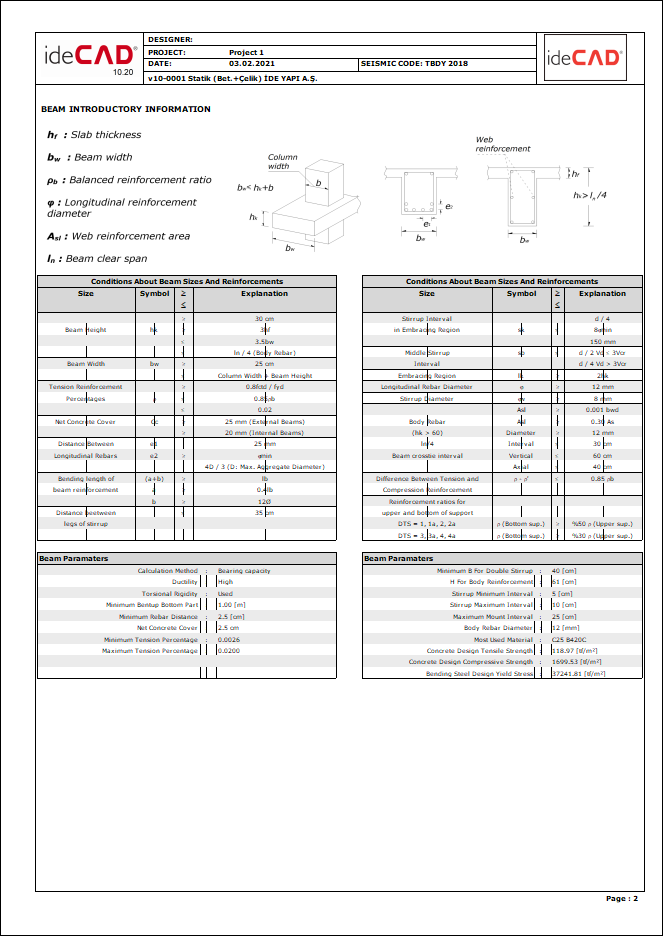

Report view with tabs closed

Report view with tabs open

Pull tab to shrink the description tab

Description tab shrinking

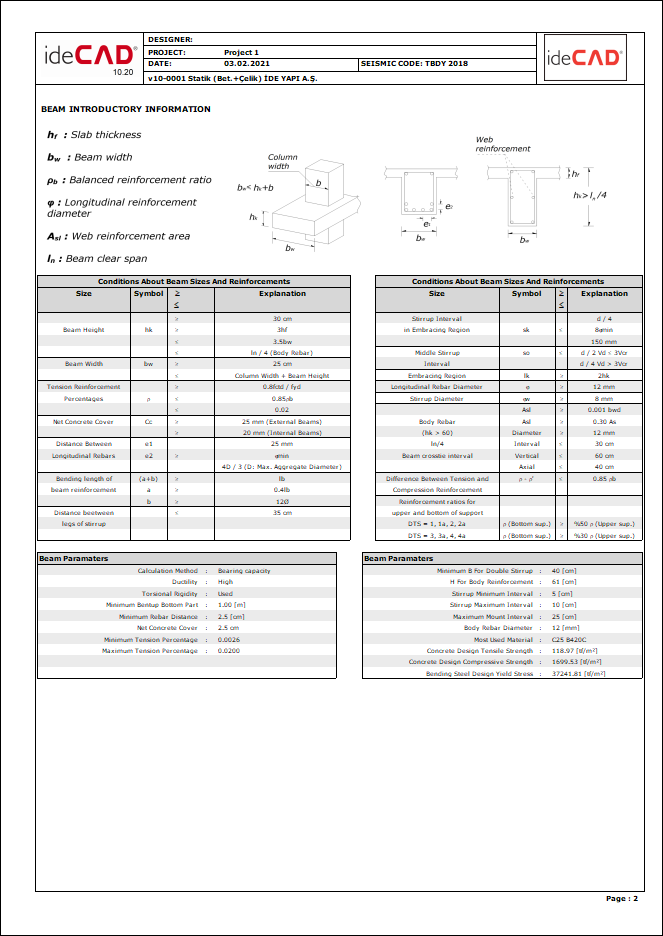

Final version of the report page


Next Topic

Saving a Report
