Comparison Sample Calculation
![](../__attachments/1098252370/comp4.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

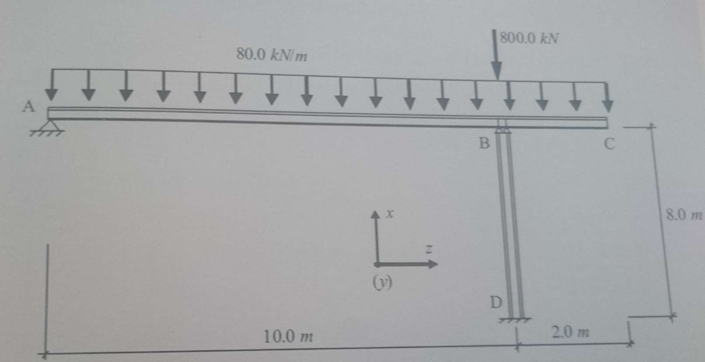

Under the specified loads, design the steel column with S355 material using the HEB section. The lower-end of the column is fixed and the upper-end is hinged.
Solution
Determination of the axial force on the column.

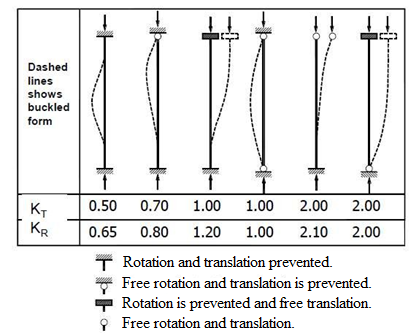

Determination of the support condition.
![](../__attachments/1098252370/comp5.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

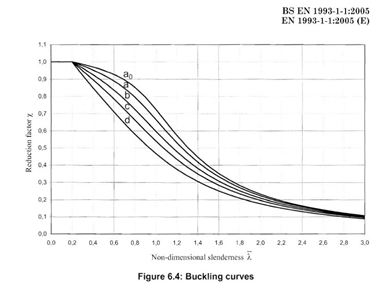

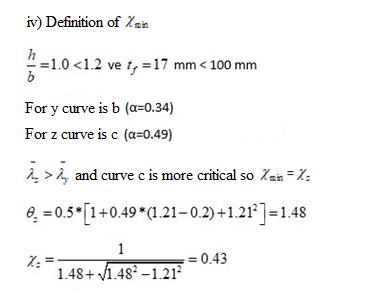

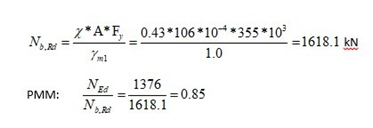

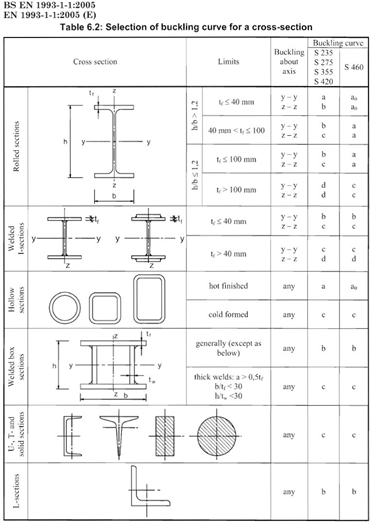

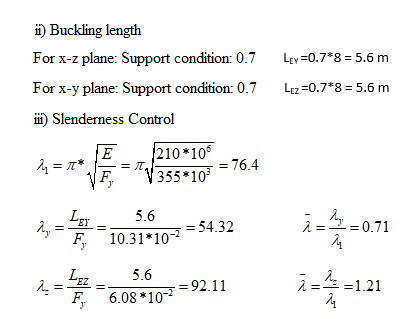

TS EN 1993-1-1 Solution
![](../__attachments/1098252370/comp6.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/image-20200428-132842.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/comp7.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/image-20200428-132905.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/comp8.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/image-20200428-132926.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

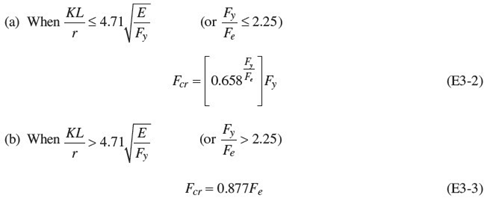

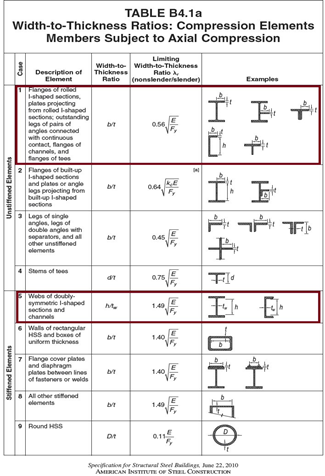

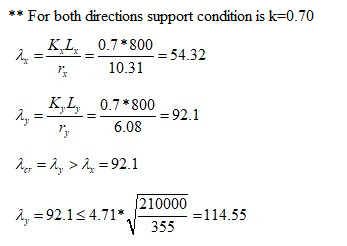

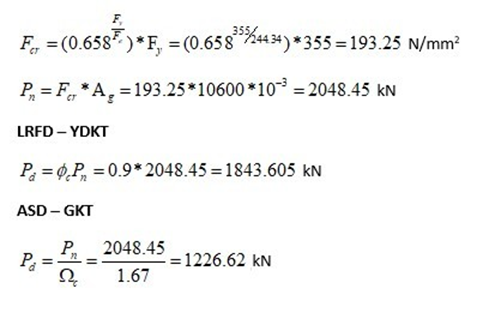

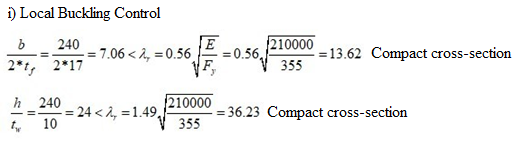

LRFD -YDKT and ASD-GKT Solutions
![](../__attachments/1098252370/image-20200428-133006.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/comp9.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/comp10.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/image-20200428-133047.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/image-20200428-133104.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1098252370/image-20200428-133118.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

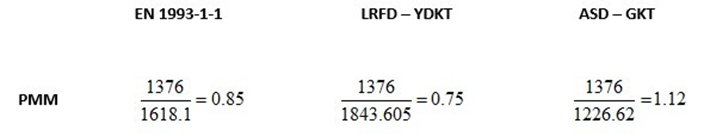

The effect of the different load combinations of the regulations was not reflected in the example, the design was only carried out under G (dead) load.
