Rebar Selection
With the Rebar Selection command, the rebar diameters to be used in the concrete design are selected. Reinforcement diameters selected from the Rebar Selection dialog are used in the design of concrete elements (column, beam, shearwall, slab, foundation, pile, retaining wall, etc.) .
Location of the Rebar Selection Command

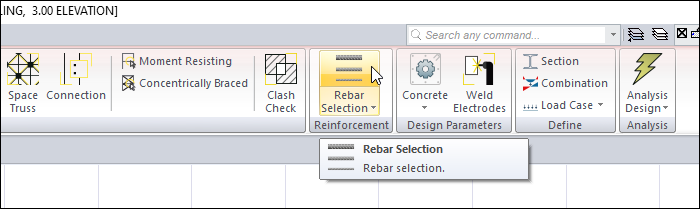

Ribbon menu Analysis and Design tab Reinforcement title under Rebar Selection you can reach the command.
Usage Steps
Click on the concrete element tab that you want to change the rebar.
Mark therebar diameters you want to use in the project with the left mouse button.
According to the selection made after the analysis, the rebars are used in the concrete design of the elements.
Unmarked rebars are not used in the concrete design of the elements.

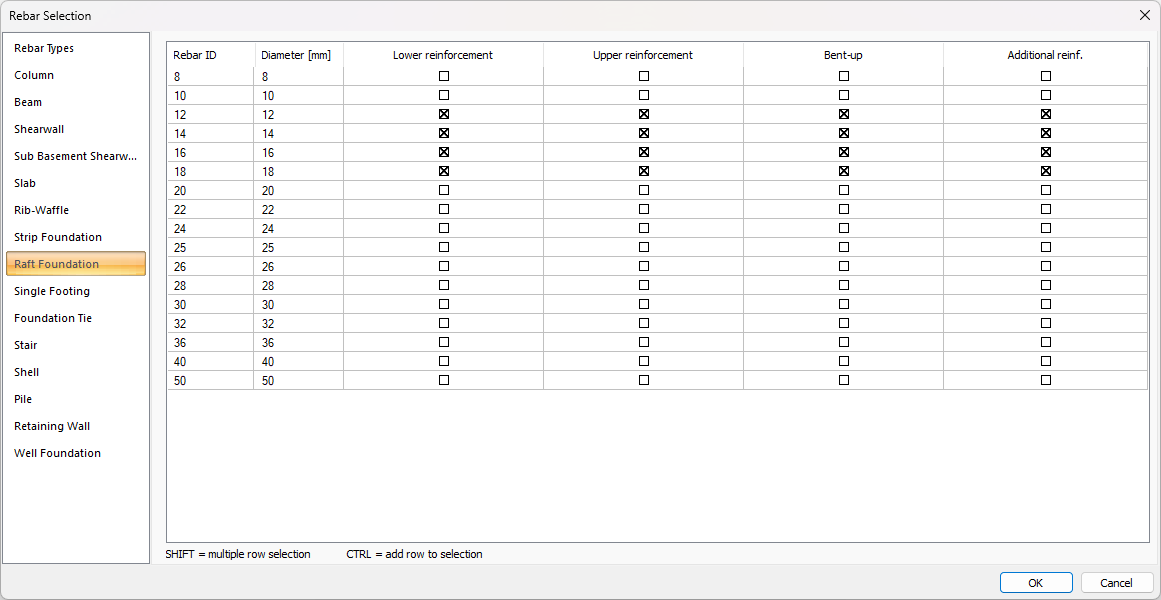

Rebar Selection

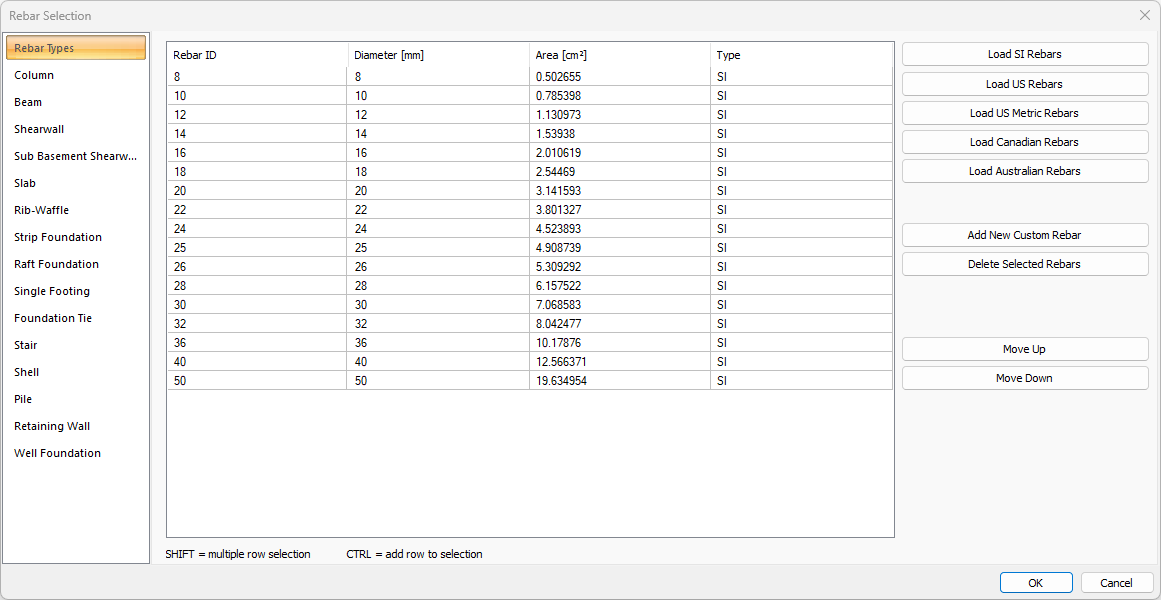

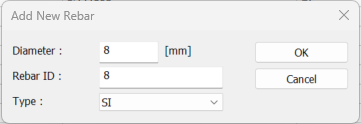

Rebar Types
Specifications |
|---|

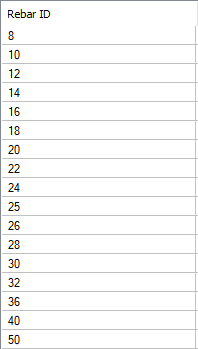

Rebar ID  Rebar types are listed. |

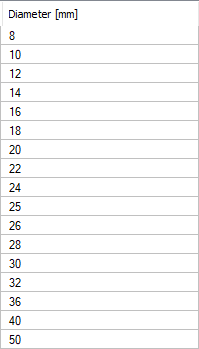

Diameter  The diameter values of the rebar types are listed. |

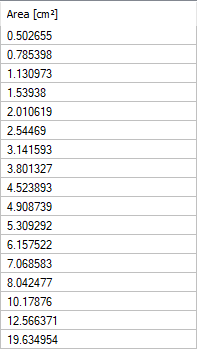

Area  The area value of the rebar types are listed. |

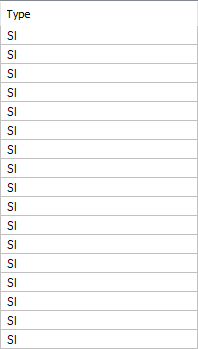

Type  The types used in rebars are listed. |
Load SI rebars  Rebars of SI rebar type are loaded. |
Load US rebars  Rebars of US rebar type are loaded. |
Load US metric rebars  Rebars of US metric rebar type are loaded. |
Load Canadian rebars  Rebars of Canadian rebar type are loaded. |
Load Australian rebars  Rebars of Australian rebar type are loaded. |
Delete selected rebars  Deletes the selected rebar from the list. |
Move up  Move up the selected rebar in the list. |
Move down  Move down the selected rebar in the list. |

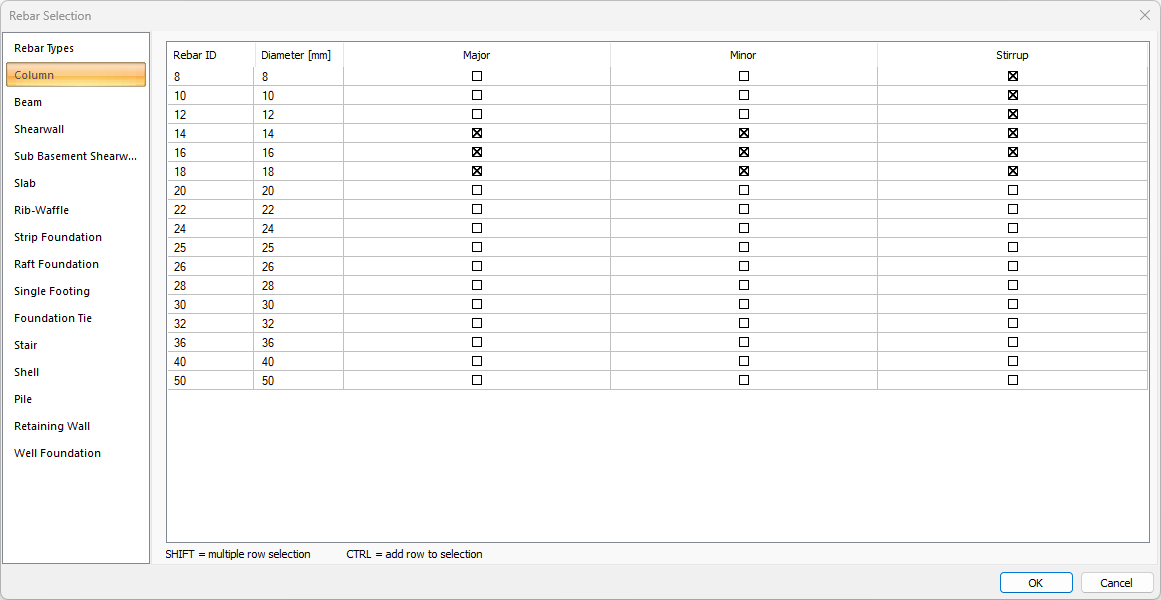

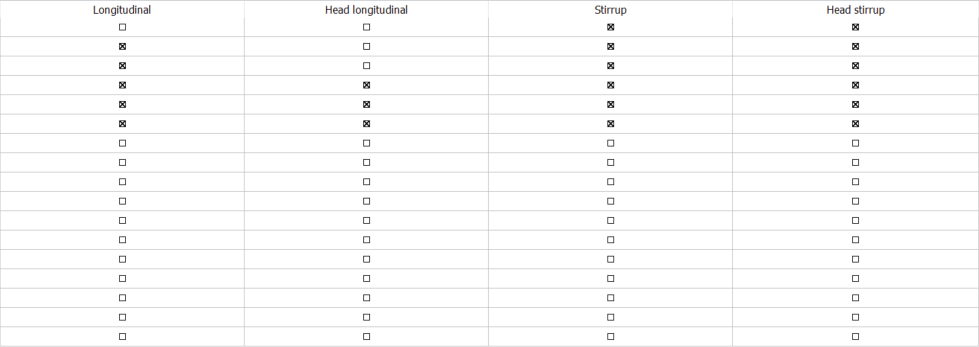

Column
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |

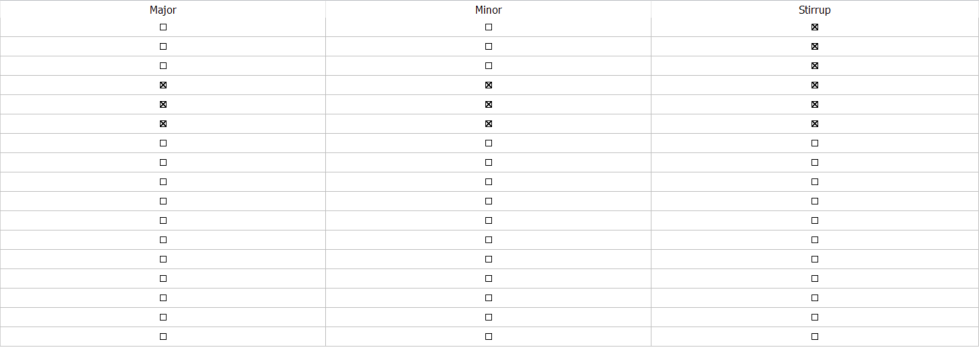

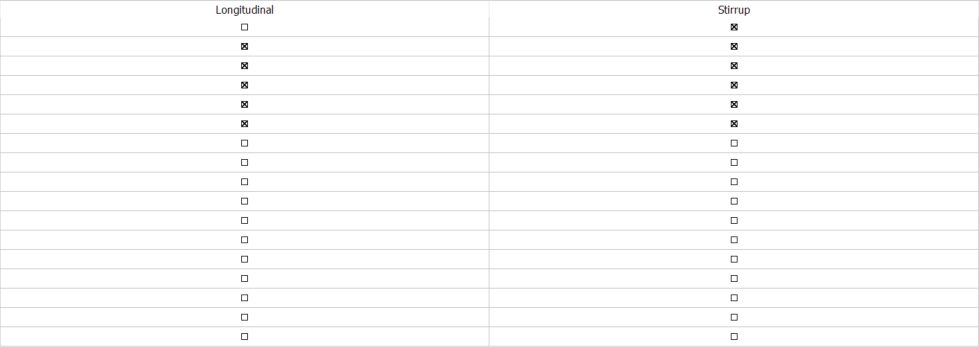

Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

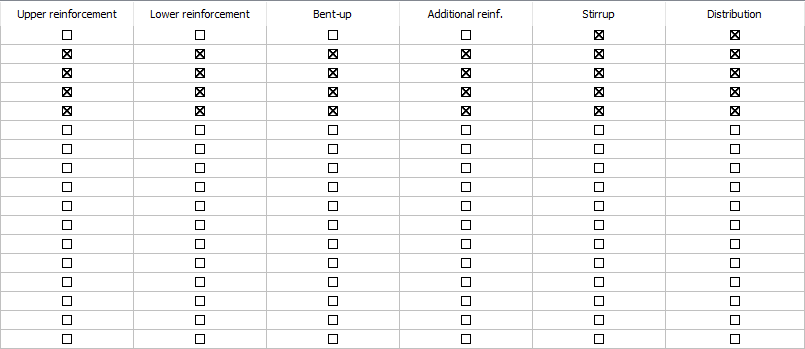

Beam
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |

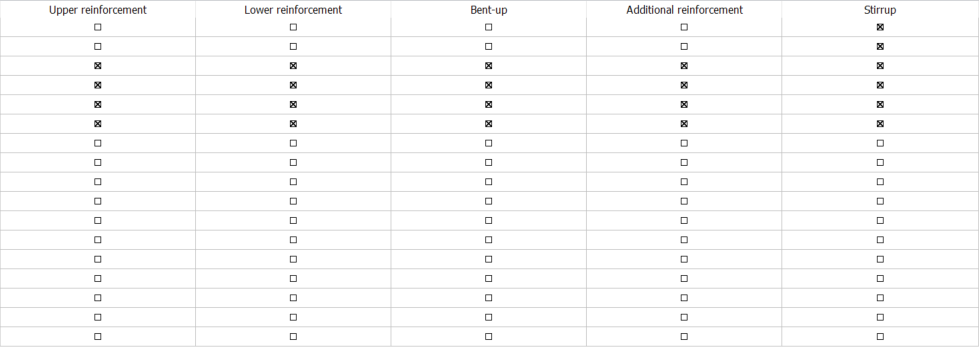

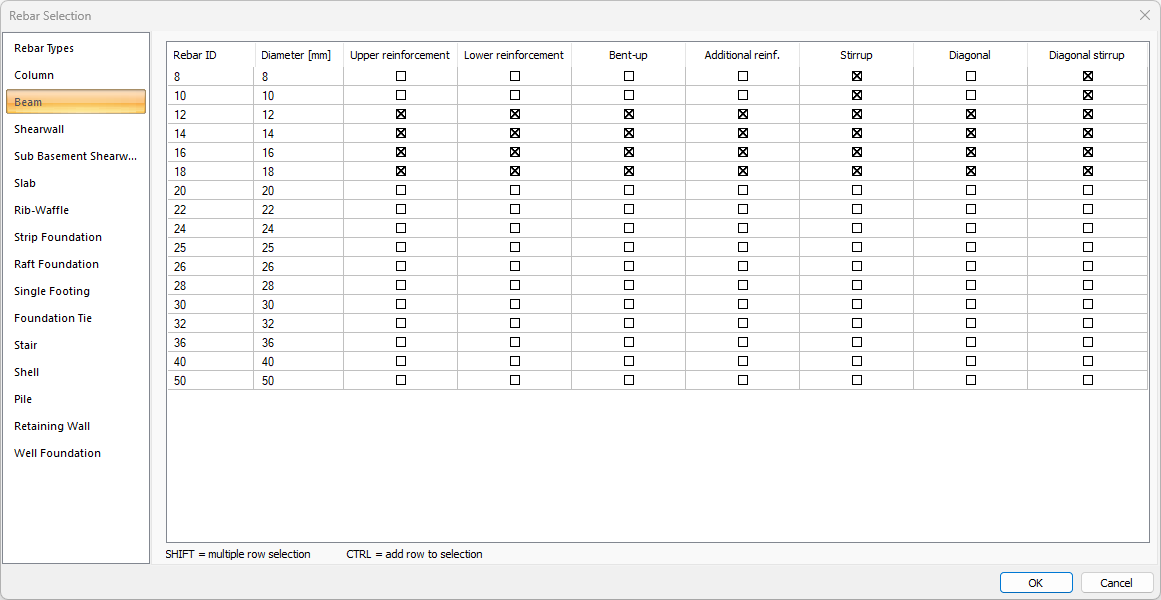

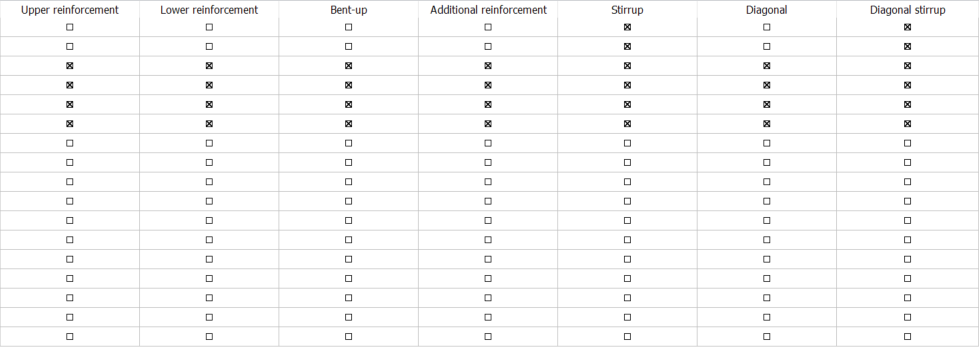

Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

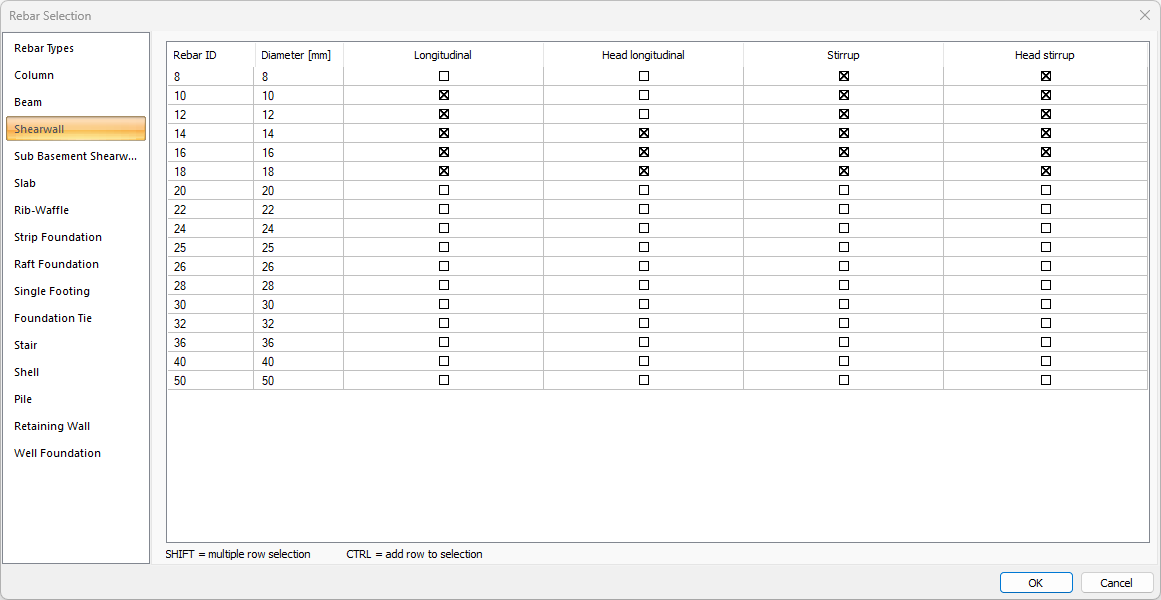

Shearwall
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

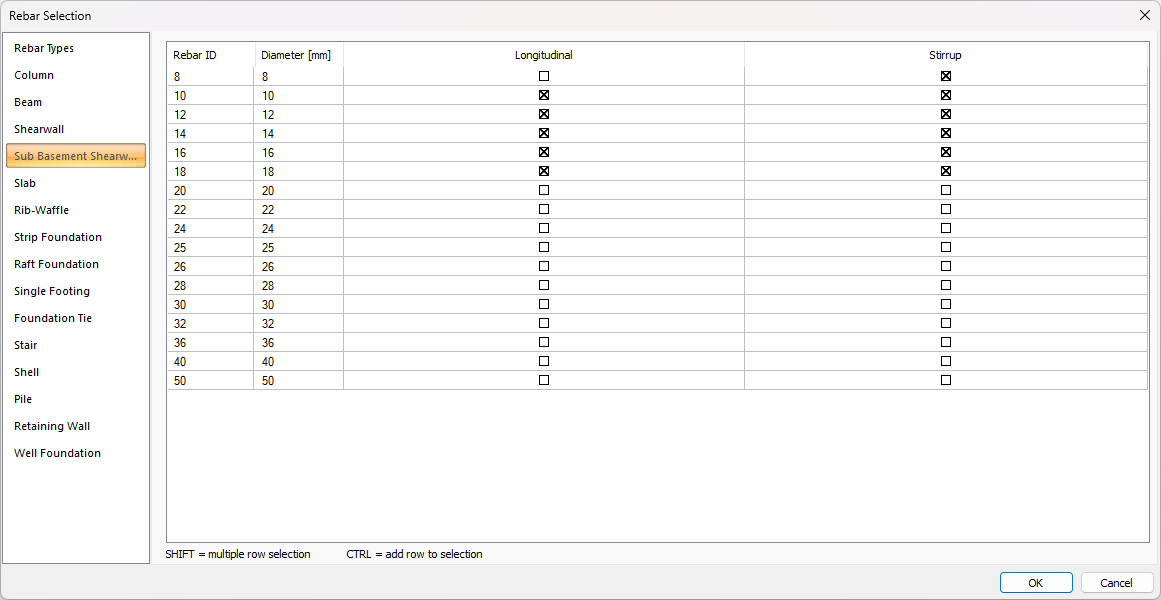

Sub Basement Shearwall
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |
Slab
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |

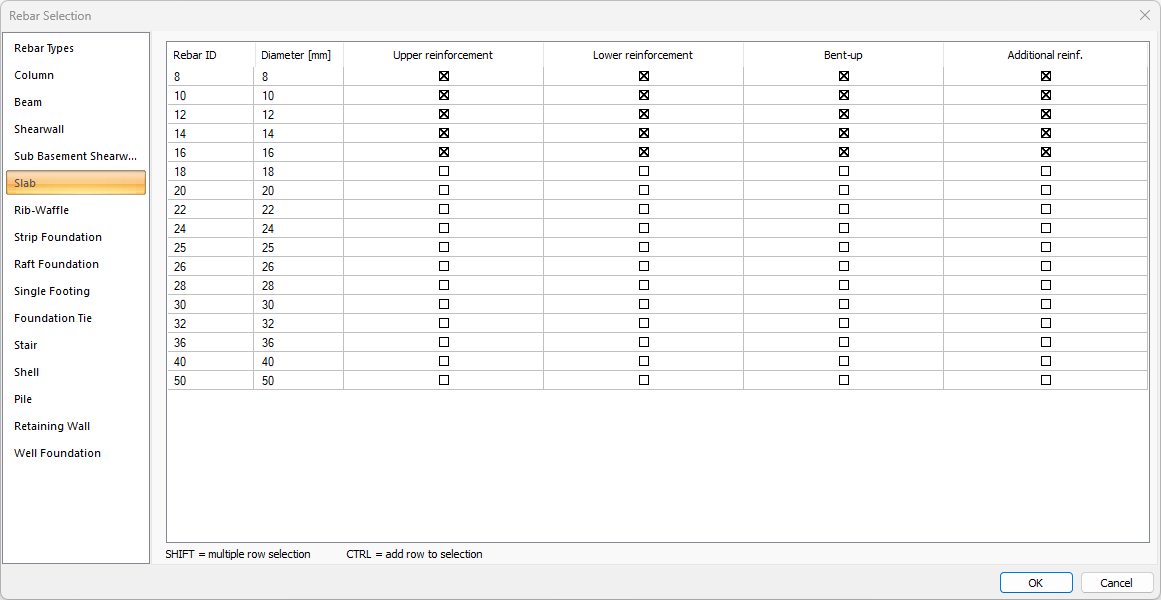

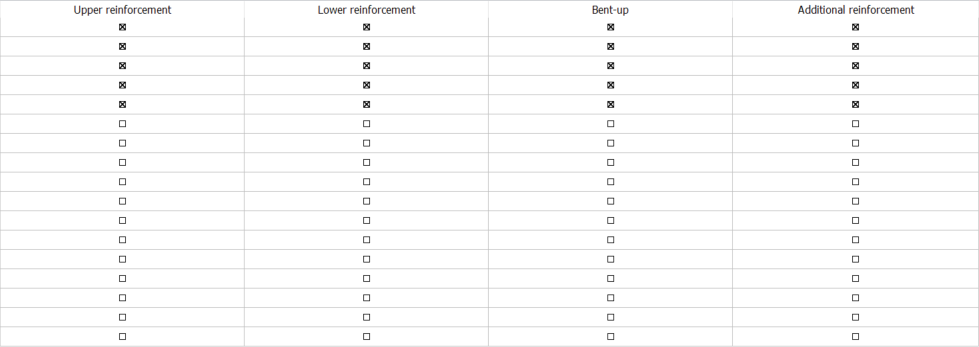

Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

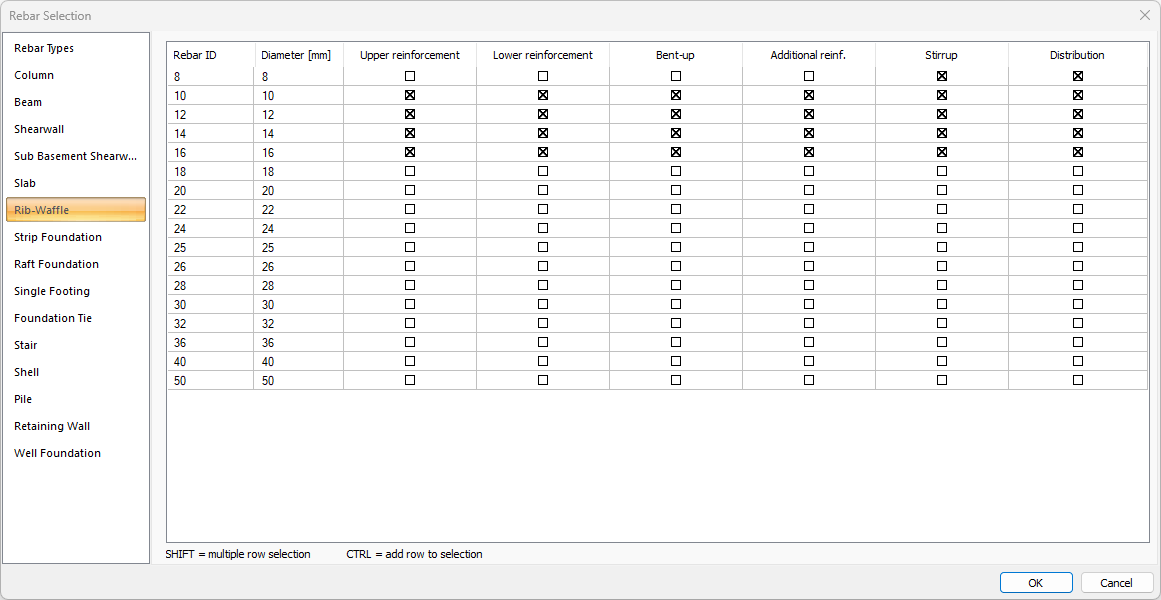

Rib-Waffle
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |

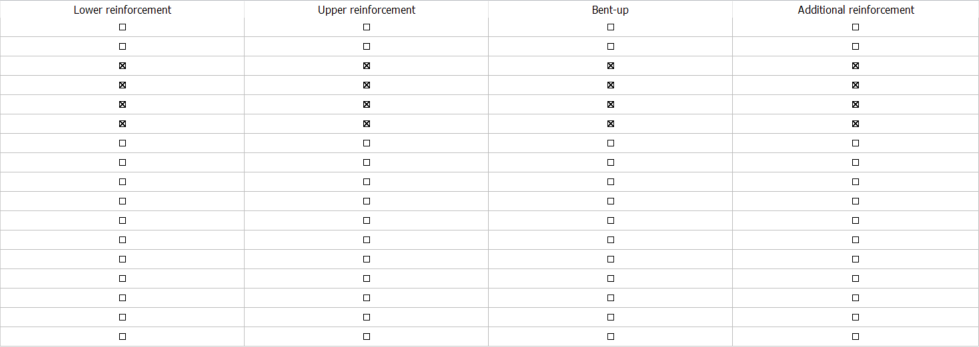

Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

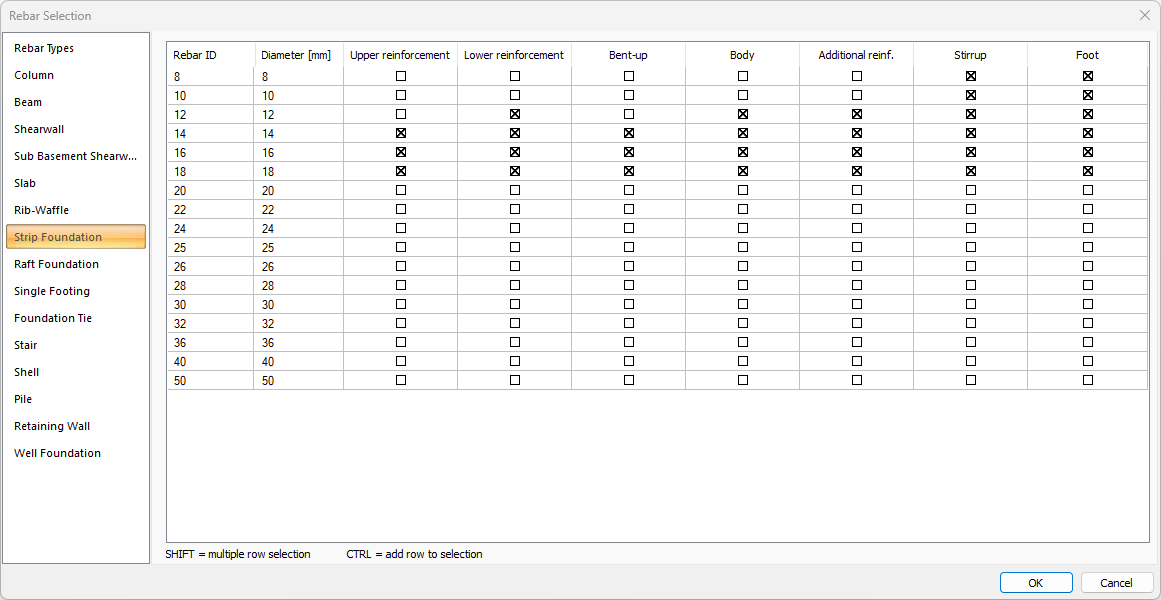

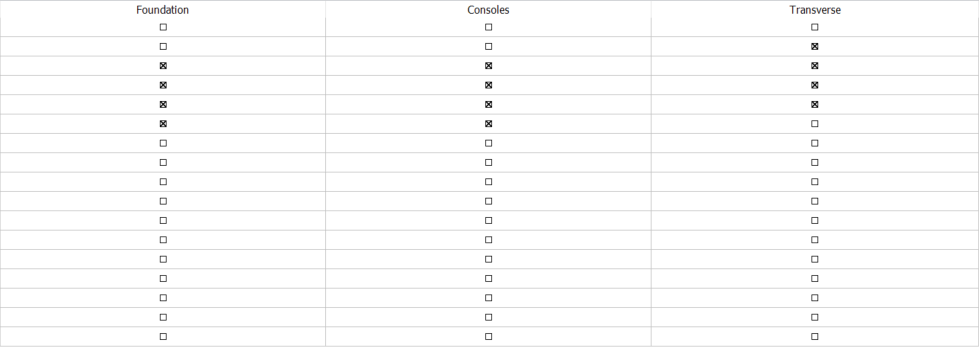

Strip Foundation
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |
Raft Foundation
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |

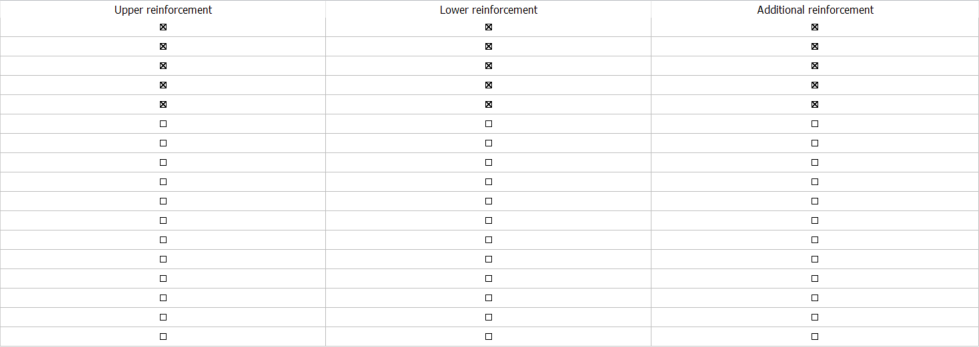

Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

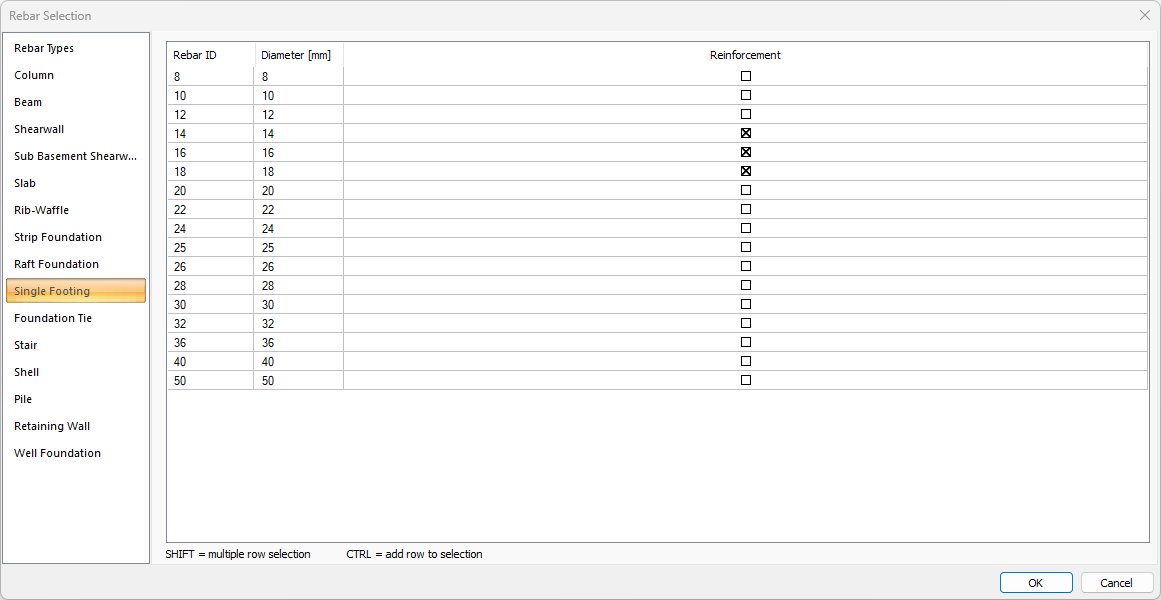

Single Footing
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

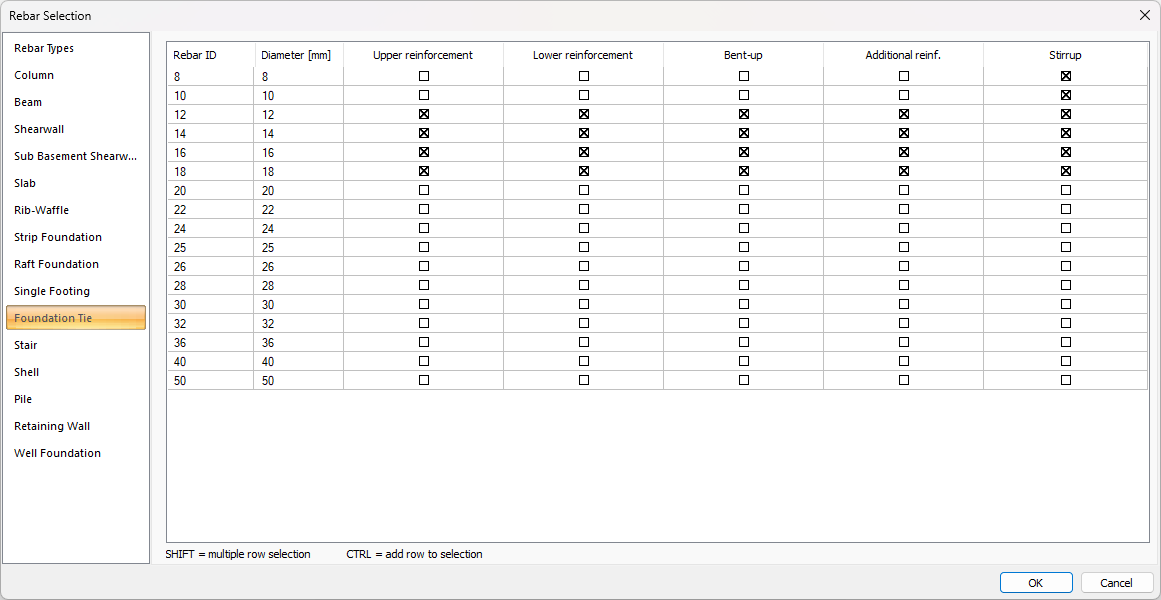

Connection Beam
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

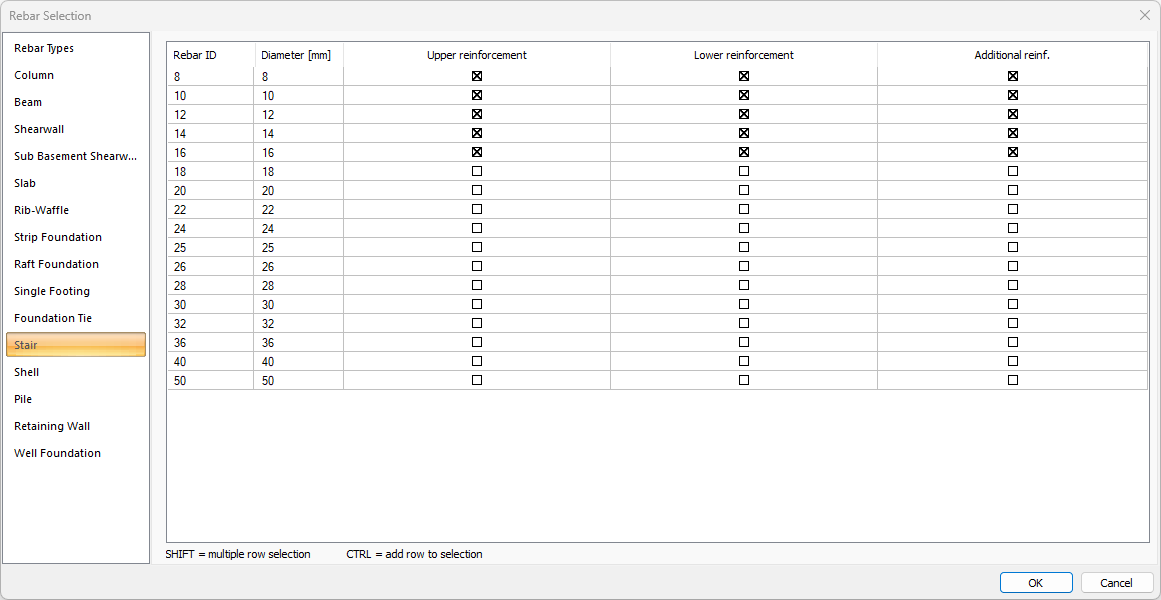

Stair
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

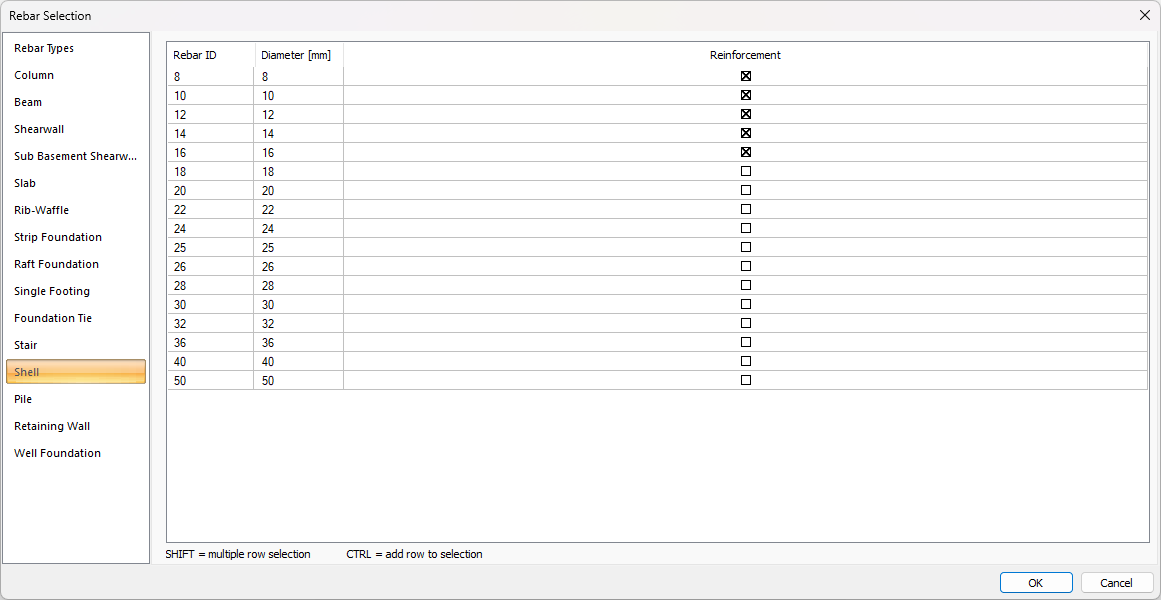

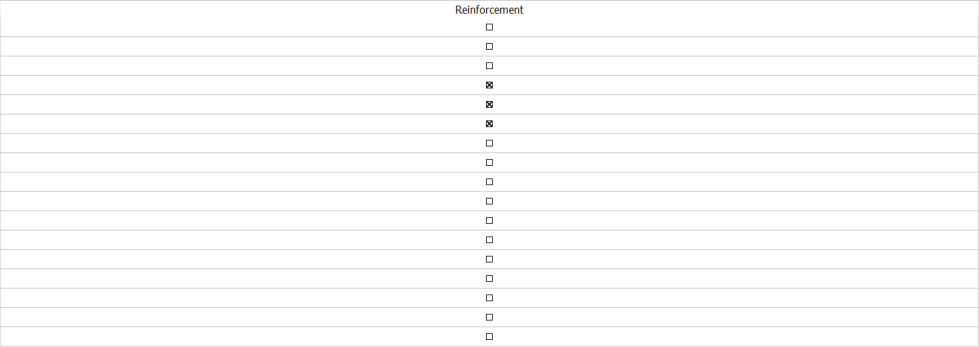

Shell
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

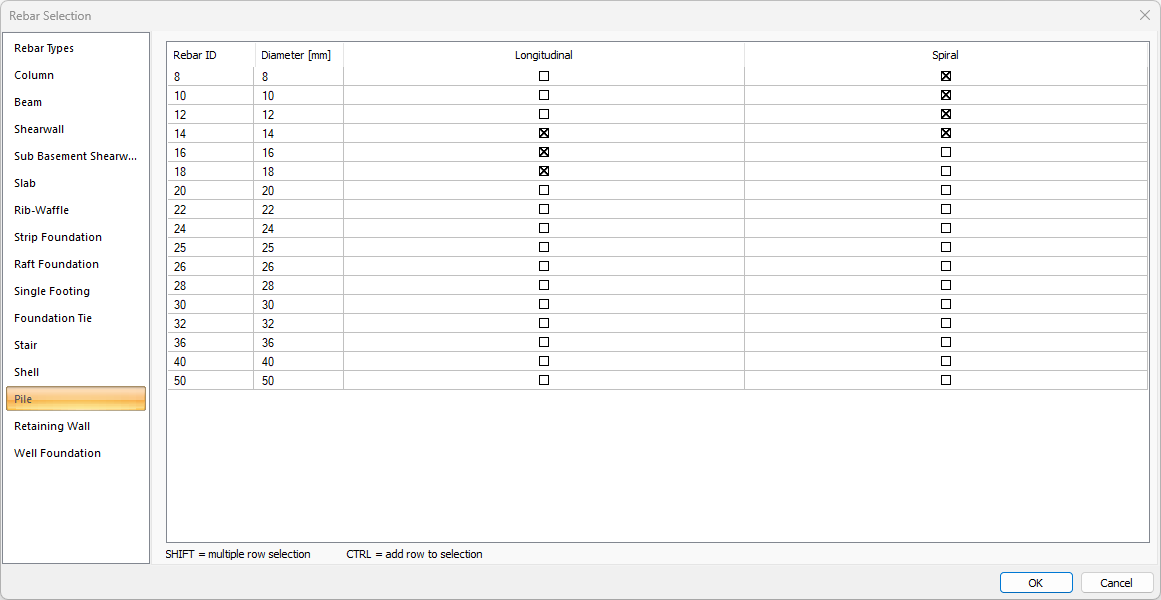

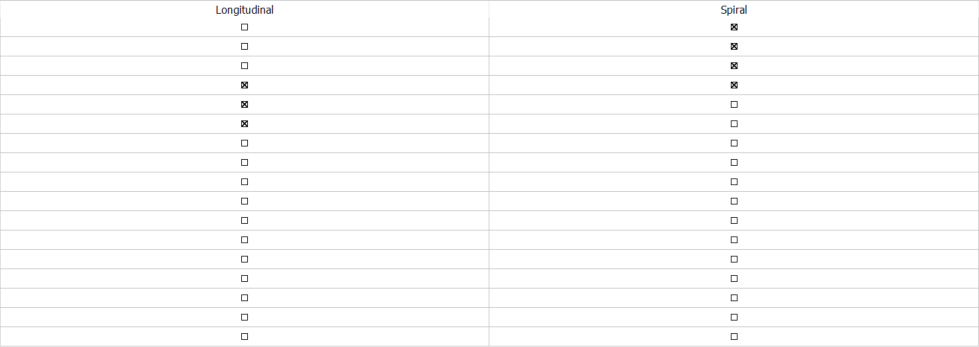

Pile
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

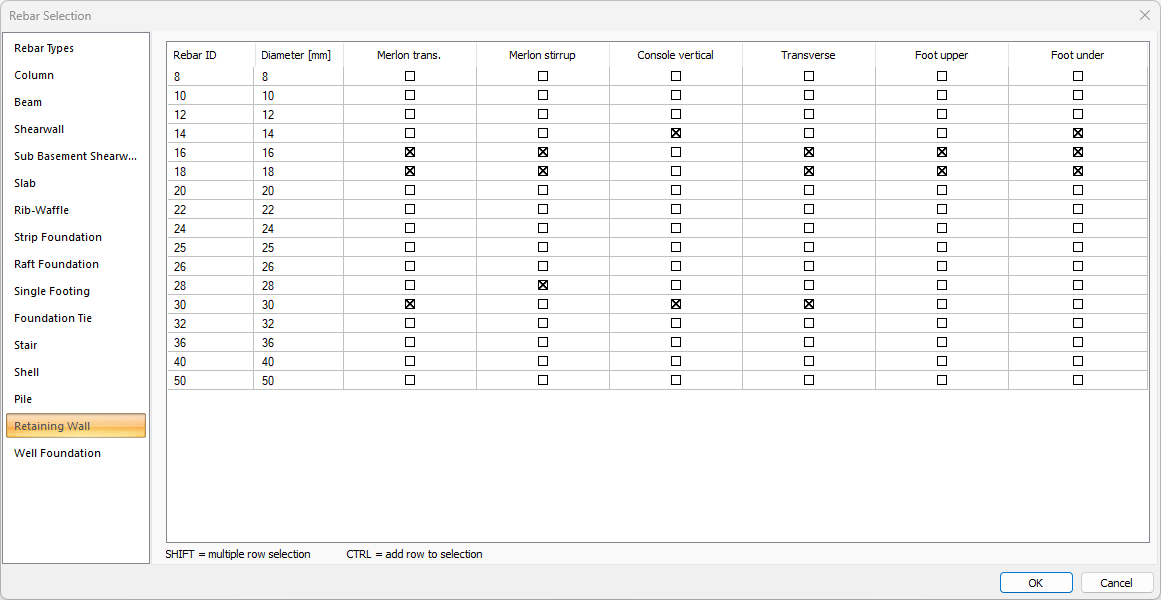

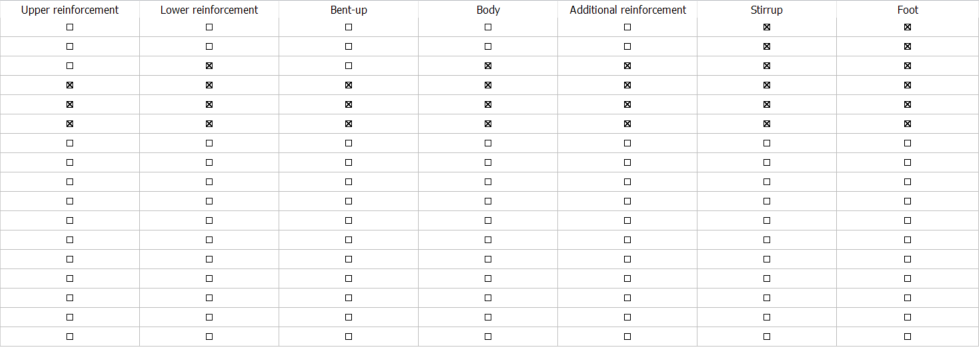

Retaining Wall
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |

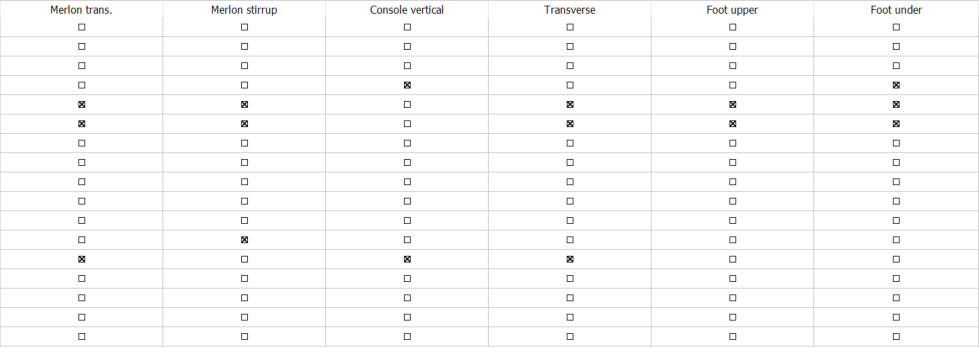

Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |

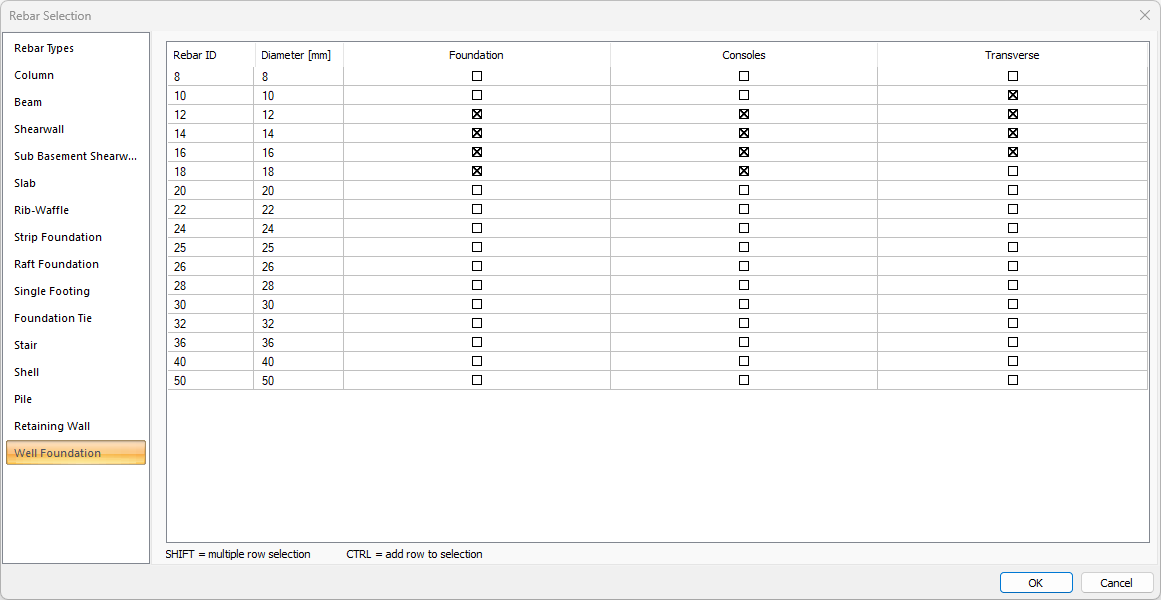

Well Foundation
Specifications |
|---|
Rebar ID Rebar types are listed. |
Diameter The diameter values of the rebar types are listed. |
Location of rebar and selection boxes  The location and dimensions of the listed rebars are selected by checking the boxes. |
