Structural Section Settings
The properties of the prepared sections are determined with the information given in the Static Section Properties dialog. In order to transfer the changes made in the static section properties to the existing section, the section must be relocated.
You can access the section properties by double clicking the section line with the left mouse button.

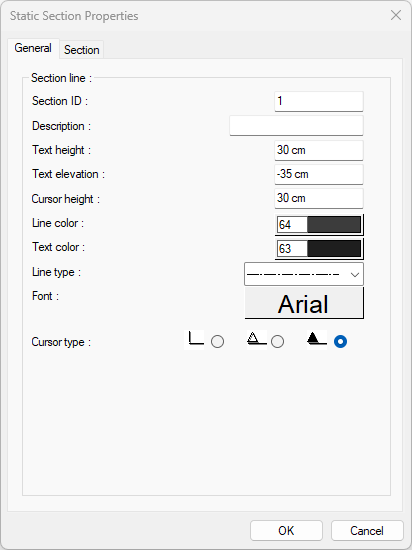

General Tab
Specifications |
Section ID  It is the name of the section shown in the plan. For example, if 4 is written, 4 is written at the beginning and end of the section line. |
Description  It is the description written under the section drawing. (A - A SECTION etc.) If the description line is left blank, an automatic definition is created with the name written in the section ID line. For example, if 1 is written in the section ID line, the definition of that section is automatically seen as 1-1 SECTION. If any definition is written on the definition line, that definition written under the section drawing is displayed. |
Text height  It is the text height of the section ID text written at the beginning and end of the section line. |
Text elevation  It is the distance from the section line of the section ID written at the beginning and end of the section line. |
Cursor height  It is the size of the cursor sign placed at the beginning and end of the section line. What will be the cursor sign is available as an option at the bottom of the dialog. The larger the value written on this line, the larger the height of the sign, and thus the larger the sign is drawn. |
Line color  It is the color of the section line and section line visible in the plan. The color palette is opened by clicking the box and a color is selected from the list. |
Text color  It is the color of the section ID text written at the beginning and end of the section line. By clicking the box, the color palette is opened and a color is selected from the list. |
Line type  It is the line type of the section line. The section line is drawn according to the selected type. |
Font  It is the font of the section ID text written at the beginning and end of the section line. The font dialog opens by clicking the font box. The appropriate font is selected in the dialog. |
Cursor type  The type of direction marker placed at the beginning and end of the section line. The wanted mark to be used is selected by clicking the left mouse button while the mouse cursor is on it. |

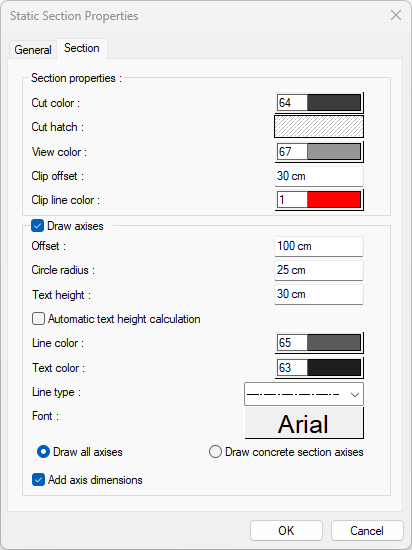

Section Tab
Specifications |
Cut colors  Select the color of the cut objects from the color palette that appears when clicked. |
Cut hatch  Select the hatch of cut objects by selecting one of the hatch options that open when clicked. |
View color  Select the color of visible objects from the color palette that opens when clicked. |
Clip offset  It is the value that determines the total height of the prepared section. The higher the value, the higher the height of the section plane. |
Clip line color  It is the color of the line showing the cut of visible objects at the level where the section plane ends. Select the appropriate color from the color palette that opens when clicked. |
Draw axises  It is the option that determines whether the axes that cut the section plane are shown in the section. When the option is selected, the axes are shown in section. |
Offset  Indicates the remaining distance between the axis circles of the axes shown in the section and the section plane. The higher the value, the farther the axis circles are from the section. |
Circle radius  The radius of the axis circles shown in the section. Axis circles surround the axis names. The larger the value, the larger the axis circles. |
Text height  It is the text height of the axis names shown in the section. The higher the value, the larger the names are written. If the "automatic text height calculation" option just below is selected, the "text height" will be disabled and the axis text will be automatically fitted inside the axis circles. |
Automatic text height calculation  If the "Automatic text height calculation" option is selected, the "Text height" value just above will be inactive and the axis text will automatically fit inside the axis circles. |
Line color  The line color of the axis circles shown in the section. Select the appropriate color from the color palette that opens when the color box is clicked. |
Text color  It is the font color of the axis texts shown in the section. Select the appropriate color from the color palette that opens when the color box is clicked. |
Line type  It is the line type of the line drawn between axis circles and the section plane. Select the appropriate linetype from the list. |
Font  The font of the axis texts shown in the section. Select the appropriate font from the font list that opens when the font box is clicked. |
Draw all axises  When the option is checked, it shows all the axises defined during data entry, in their respective positions in the section. |
Draw concrete section axises  When the option is checked, it shows the axises defined at the time of data entry but only intersecting the columns, in their positions in the section. |
Add axis dimensions  If the option is selected, the spacing of the axises shown in the section is dimensioned. If not checked, it will not be dimensioned. |
