Selection Groups are created to reselect the selected elements in ideCAD at any time during the project .
Location of the Group List Command

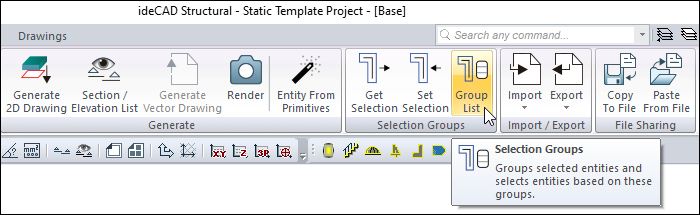

You can access the Group List from the ribbon menu Tools tab Selection Groups title.
Usage Steps
-
Select the objects to be included in the selection group.
-
Click the Group List icon.
-
Click the Make Group icon in the Group Selection dialog.
-

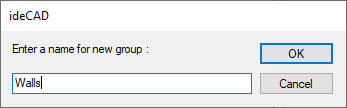

Enter a name for the choice group and click the OK button.
-
The objects previously selected in the drawing area will be included in the created group and the group name will take its place in the list of existing groups.
-
In this way, you can create as many choice groups as you want.

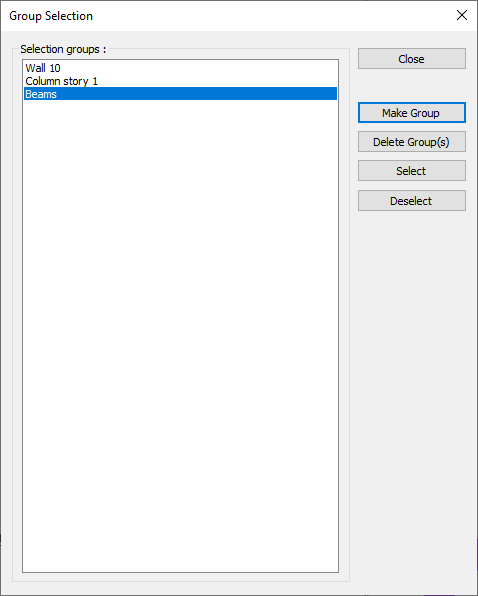

Group Selection Dialog
|
Specifications |
|---|
|

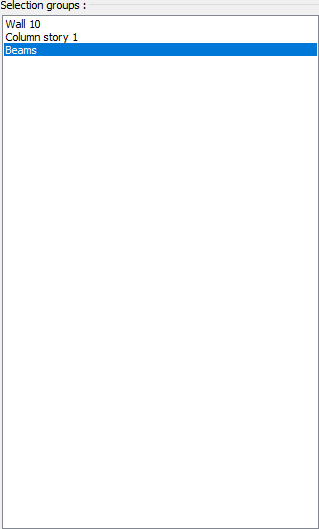

Selection groups
Selection groups in the project are listed. |
|
Make group
Groups the selected objects. |
|
Delete group(s)
Deletes selected groups from the list. |
|
Select
Selects the elements belonging to the selected group from the list. |
|
Deselect
If the elements belonging to the group selected from the list are selected, it leaves them. |
