Creating a Raft Foundation Hole

The Raft Foundation Hole command is used to open hole on the raft foundation, in other words, to gap the raft foundation.

Location of Raft Foundation Hole

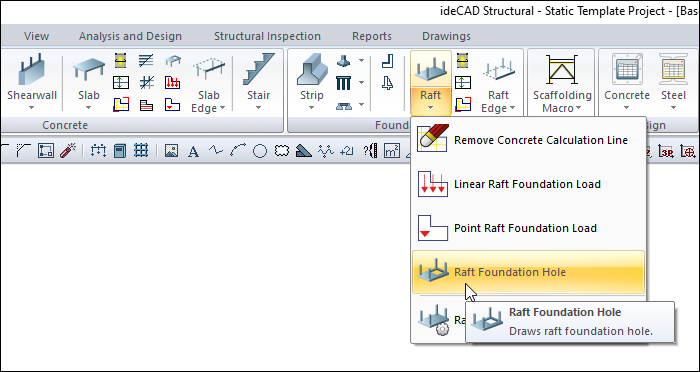

You can reach it under the ribbon menu Concrete tab, Concrete title.

Usage Steps

To create a hole on the raft foundation;

  • Click on the Raft Foundation Hole icon in the ribbon menu .

  • The raft foundation toolbar will be opened.

  • Move your mouse over the raft foundation you want to create a hole.

  • Create your first point for the closed polygon by clicking on the raft foundation with the hole polygon.

  • You can draw a vertical edge by pressing the shift key on the keyboard.

  • By clicking on the raft foundation hole icon, the path segments dialog will also open.

  • The path segments dialog contains icons that allow you to draw the hole polygon line in straight, circular and curved form. You can switch between forms without exiting the command by clicking the icons.

  • This way create your closed polygon.

  • When you close your area, there will be a hole in the raft foundation.

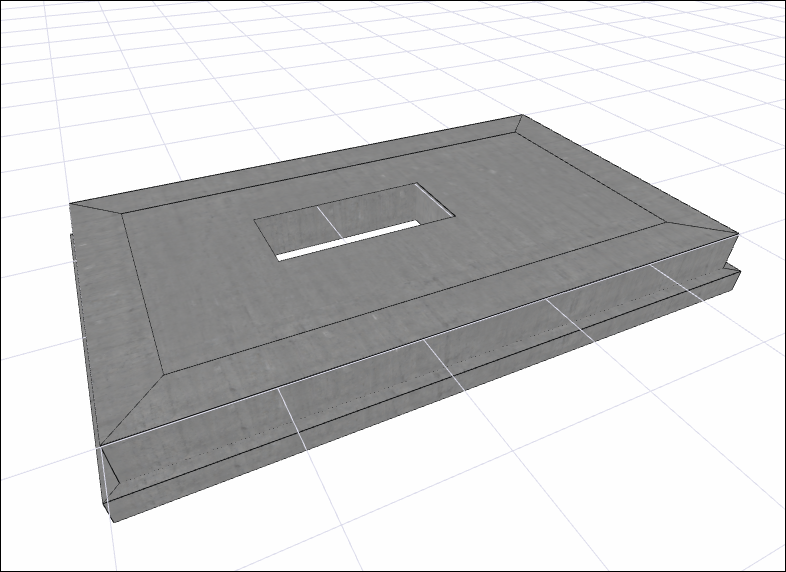

  • If a section is taken here or if it is checked in the perspective window, it is seen that the created closed polygon takes place as a hole in the raft foundation.

Usage step

Creating the first point of the raft foundation hole polygon

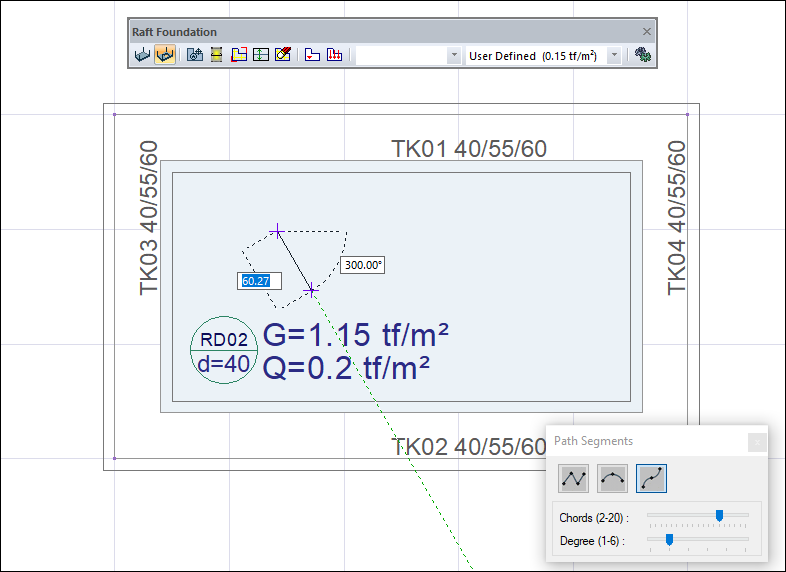

Creating the second point by obtaining a vertical edge by pressing the Shift key

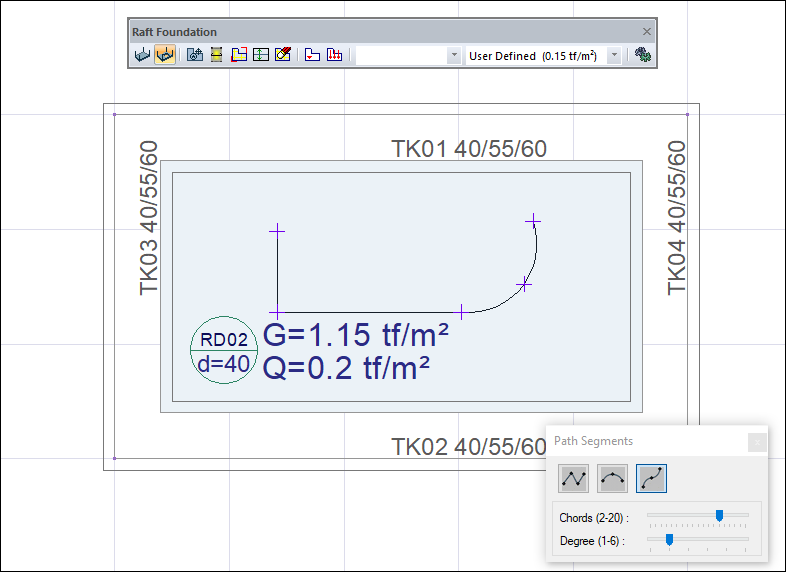

Choosing a straight, circular or curved form for the hole polygon line

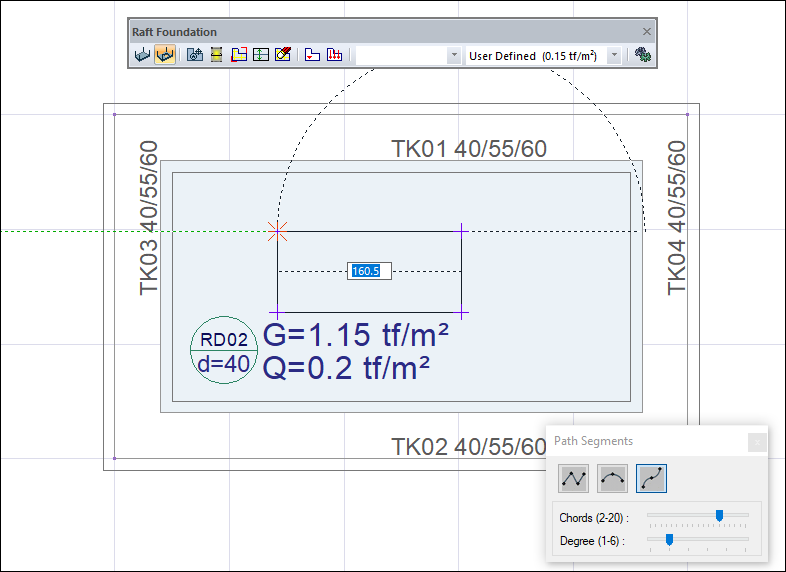

Closing the polygon by creating the fourth point of the hole polygon

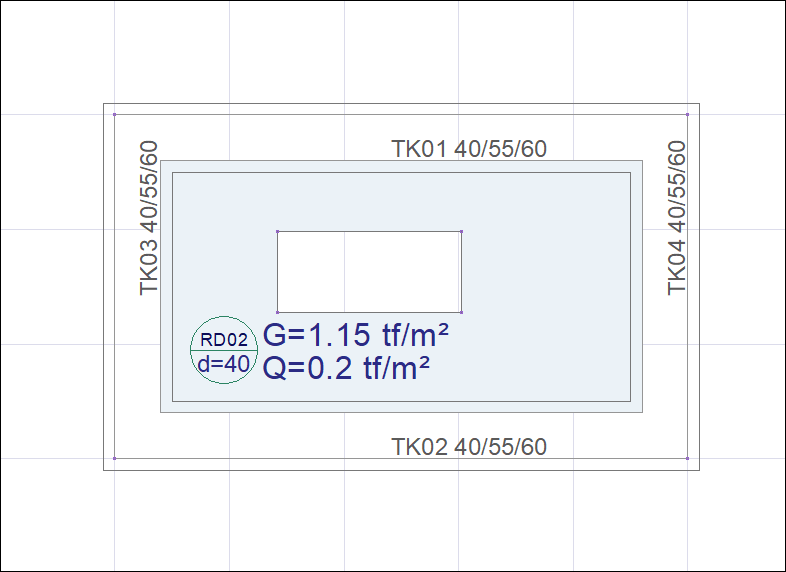

Formation of the raft foundation hole
