According to the axis determined by the mirror command, the mirrors of two or three-dimensional objects are taken. In the process of mirror, the objects whose mirror is taken can be deleted or their mirror can be obtained by copying.

Location of the Mirror Command

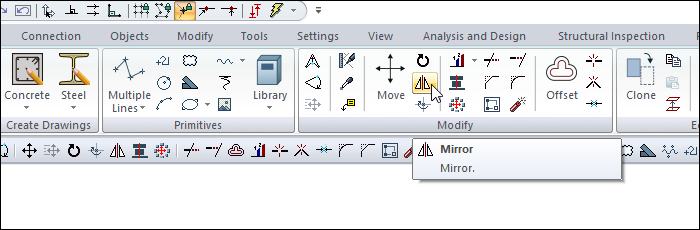

You can access the mirror command under the ribbon menu Drawings tab , under the Modify title.

Usage Steps

  • Click the Mirror icon in the ribbon menu .

  • If you want to delete the objects whose mirror you will take, make sure that the Delete Old Entities on Mirror icon is active on the mirror toolbar that appears on the screen .

  • Select the objects and click the right mouse button.

  • In the drawing area, draw the reference direction for mirror.

  • The mirror of the object or objects you selected will be taken.

Usage step

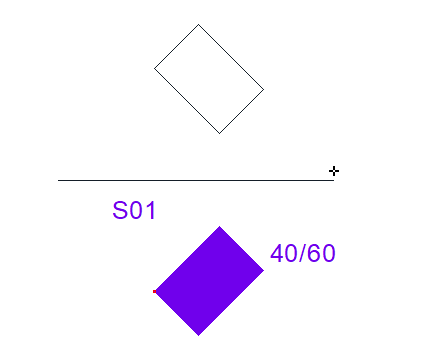

Selection of objects in mirror command and determining the first point for reference direction

Determining the second point for the reference direction

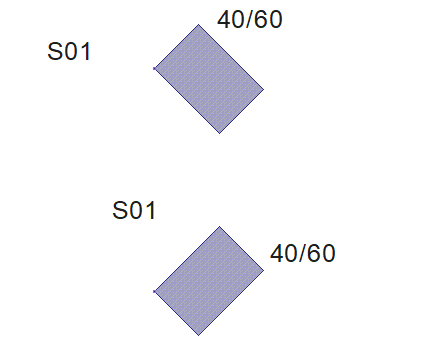

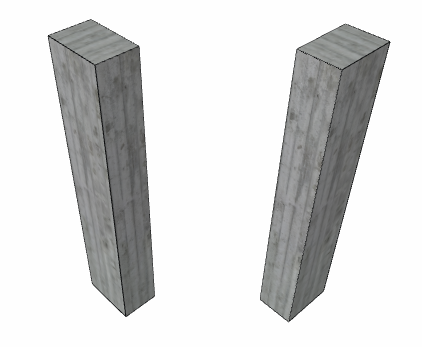

After mirror
