Axis and Frontal View Drawings
The Axis and Frontal View Drawings command is used to prepare axis and frontal view drawings .
Location of the Axis and Frontal View Drawings Command
You can access it under the Steel tab, Create Drawings heading.
Usage Steps

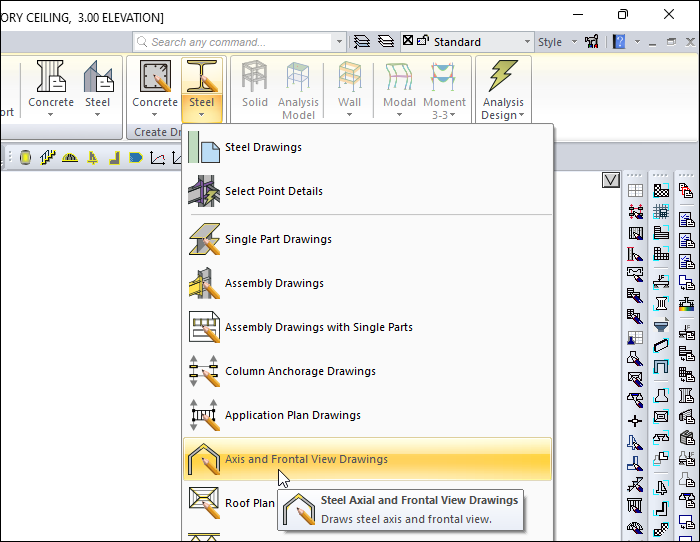

Click on the Axis and Frontal View Drawings icon.
Axis and frontal drawings will be created.
Before creating the drawings, you can access the Steel Drawing Settings dialog by clicking the settings button from the steel drawings dialog . From this dialog, layout settings, scales, fonts, etc. You can access parameters related to steel drawings.

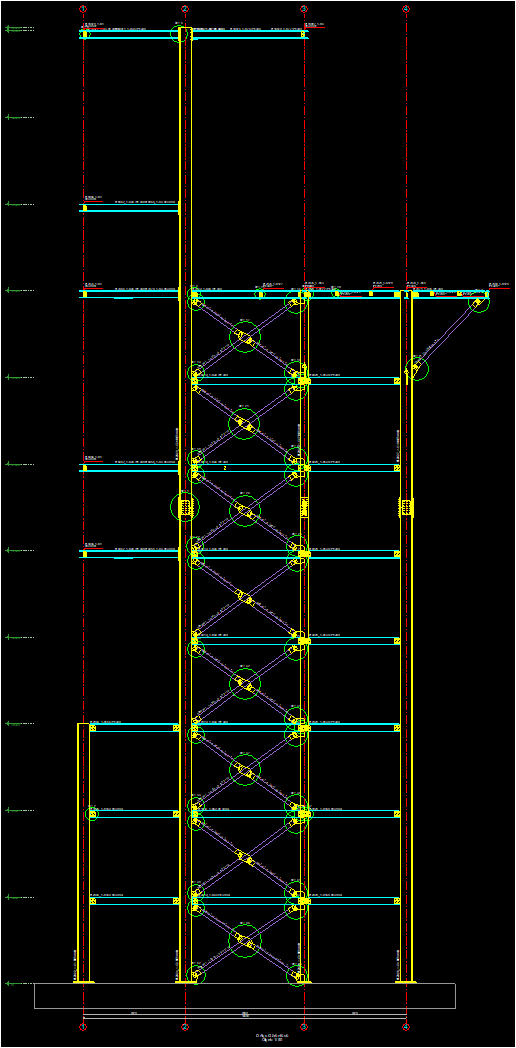

Sample axis and frontal view drawing |
|---|
  |
