New 2D Window

With the New 2D Window command, an empty 2D window is created in the project. 2D drawings are made in this window.

Location of the New 2D Window Command

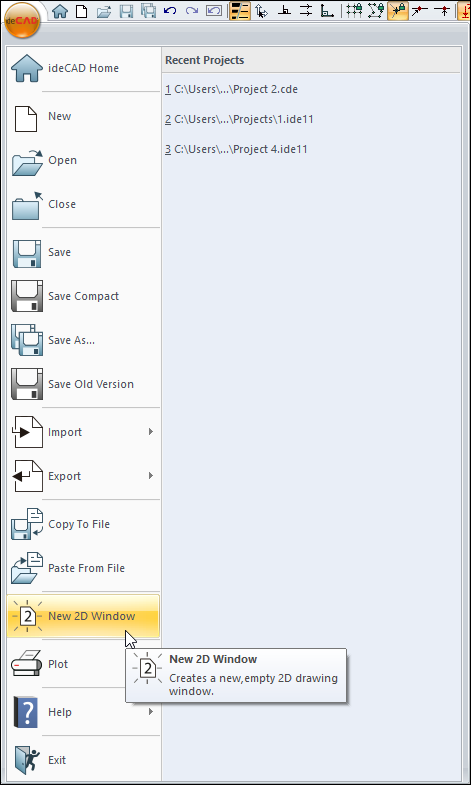

You can access the New 2D Window command by clicking the ideCAD icon in the ribbon menu .

Usage Steps

• Click on the New 2D Window icon.

• A new two-dimensional window will be created.
