Raft Edge Settings
The raft edge settings are accessed with the Raft Edge Settings command. User-changeable parameters are available in the Settings-Foundation raft edge dialog.
Location of the Raft Edge Settings Dialog
The raft edge setting that appears after the raft edge command is run is also available in the auxiliary toolbar.
![](../__attachments/1056049819/image-20200820-063826.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)

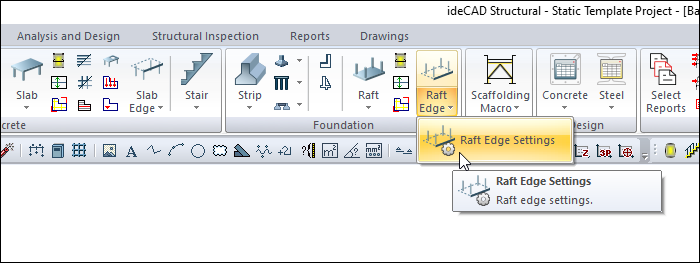

Also, you can reach it under the ribbon menu Concrete tab, Concrete title
![](../__attachments/1056049819/image-20210218-103044.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)

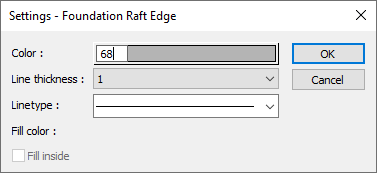

Settings - Foundation Raft Edge
![](../__attachments/1056049819/image-20200820-064052.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Color ![]() The raft is the color of the edge lines. The selection is made on the color palette that is opened by clicking with the left mouse button and holding the button down. |
Line thickness ![]() The thickness of the raft edge is adjusted. The thickness given here is only visible on the screen. When the project is drawn, it is ignored. You can make the pen thickness to be considered in the plotter from the pen thickness section or by clicking the color box with the shift key. |
Linetype ![]() Linetype of the line forming the raft edge is selected in the plan. Clicking the down arrow buttons to the right of the boxes opens the list of line types. From this list, the wanted line type is selected by clicking with the left mouse button. |
