Creating a Curve Zone Edge

With the curve zone edge command, zone edge definition is made in curve form between each clicked point.

Location of Curve Zone Edge Command

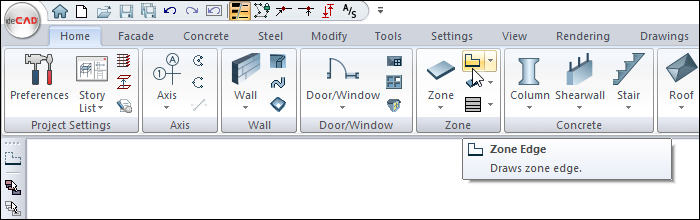

Ribbon menu Home tab Zone under the heading located, after entering the Zone Edge command opened Zone Edge can be accessed from the toolbar.

Usage Steps

  • Click on the curve zone edge icon.

  • Click on the starting point of your zone edge with the left mouse button.

  • Move your mouse to give your intended form-fitting curvature and click the left button again.

  • Click another point in the same way if the curve form is to be continued.

  • As you determine the points, the area edge will be shaped according to the location of the points.

  • Finally, click on the point where the curve zone edge will end.

  • End the command by clicking the right mouse button.

  • Your curve space edge will be formed.

  • Exit the command by pressing the esc key on the keyboard. You can now define the zone.

Usage step

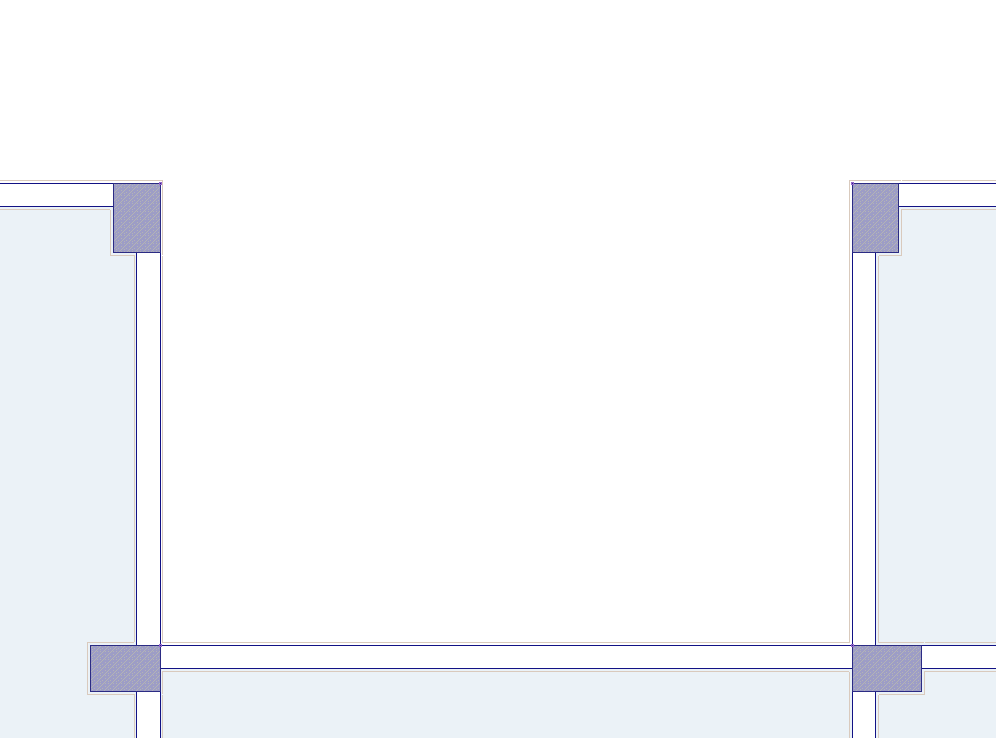

Area to be drawn curve zone edge

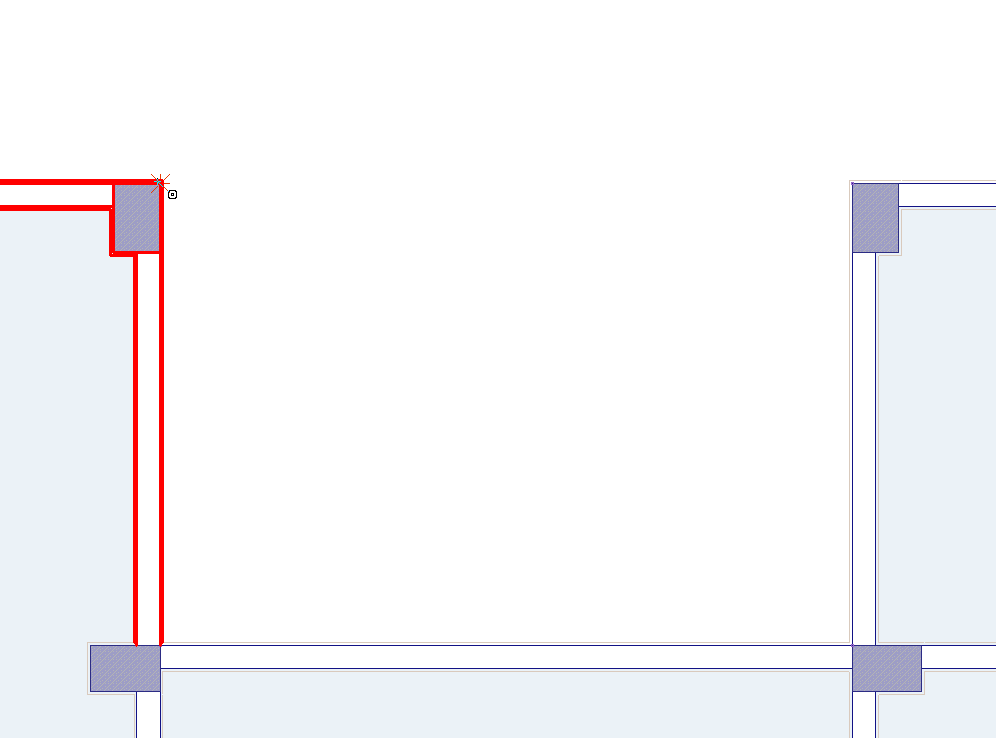

Determination of the starting point of the zone edge

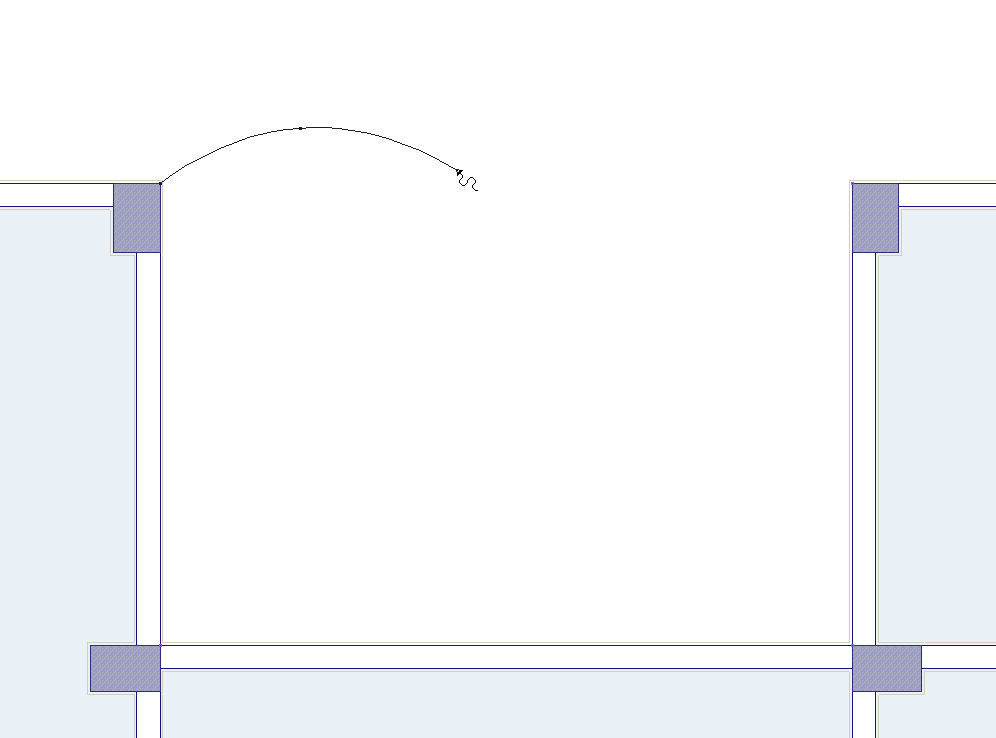

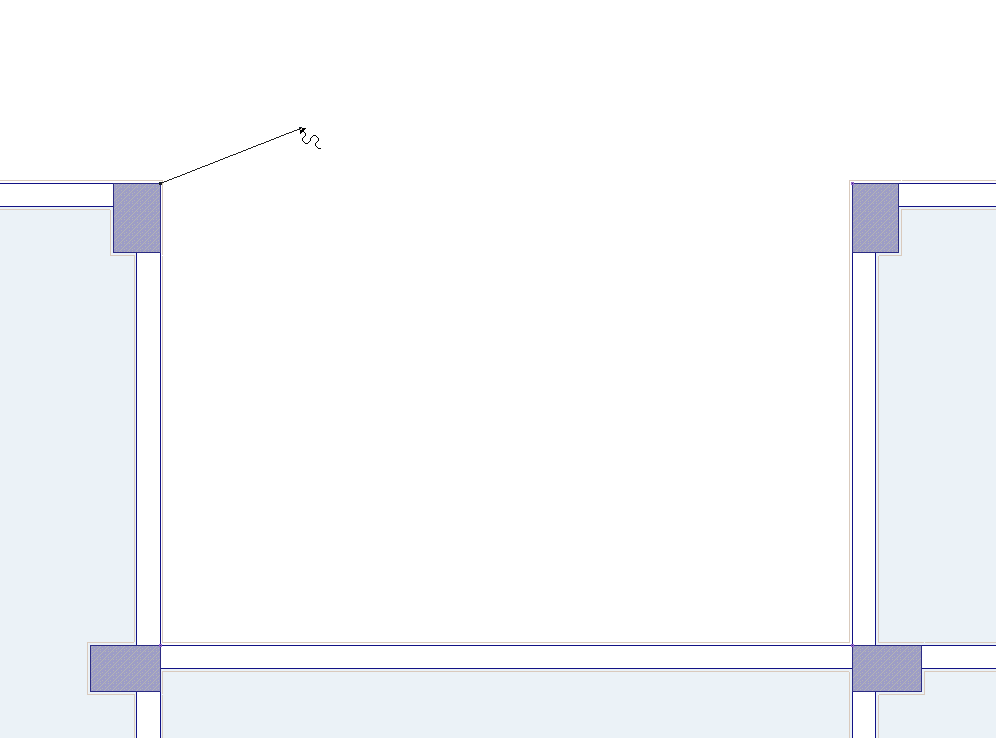

Determination of the second point

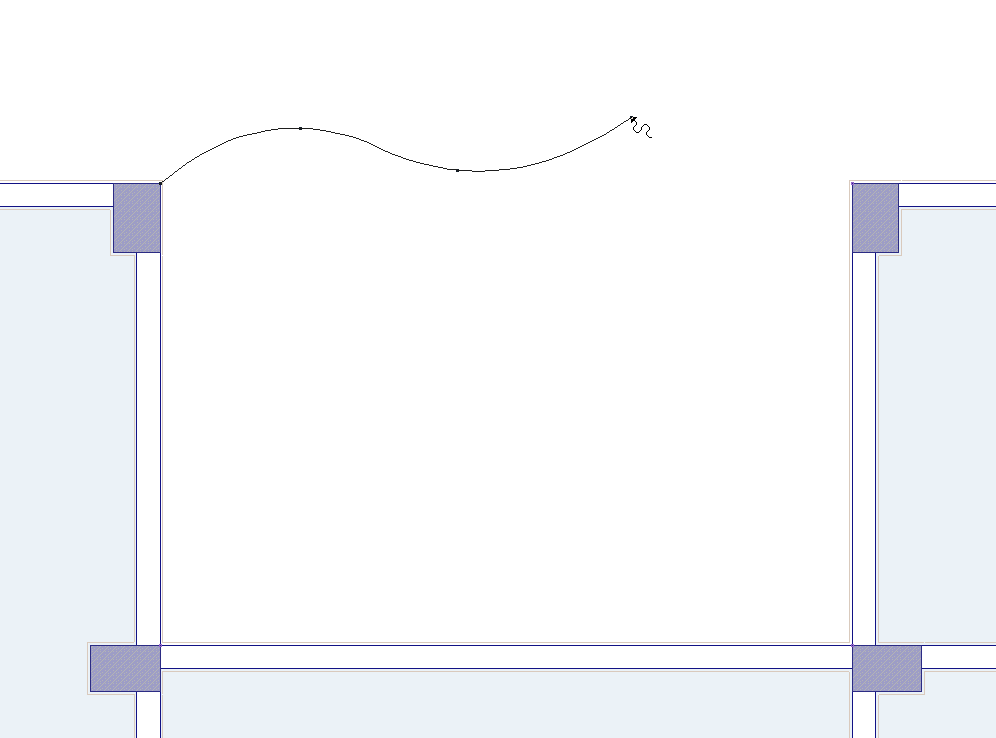

Determination of the third point

Determination of the fourth point

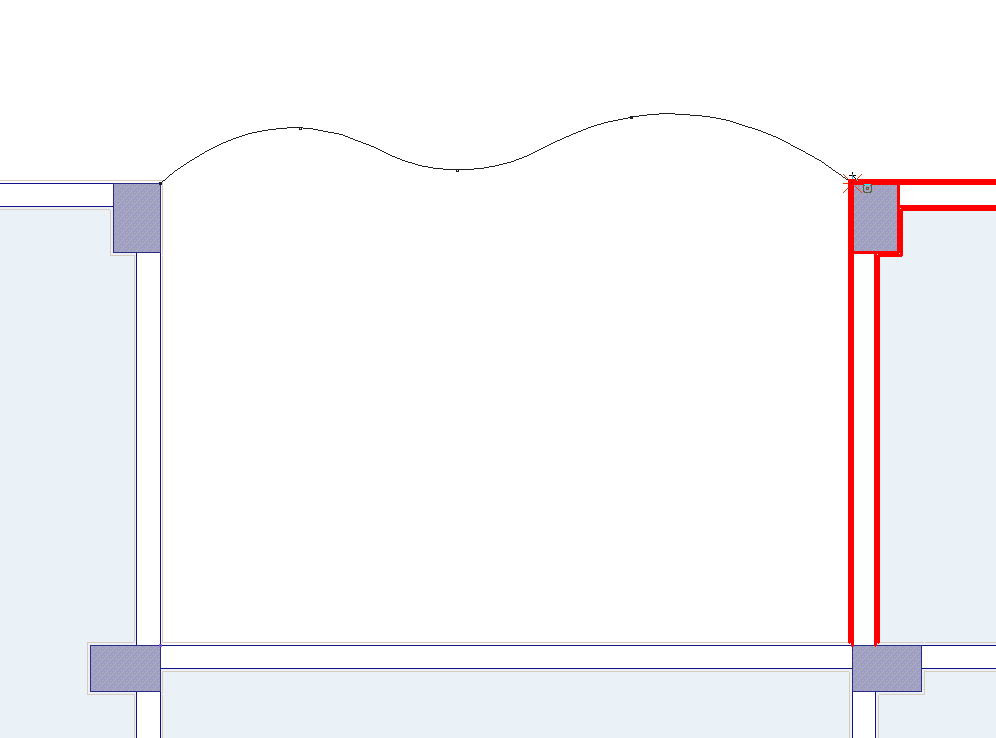

Determining the point where the curve zone edge will end

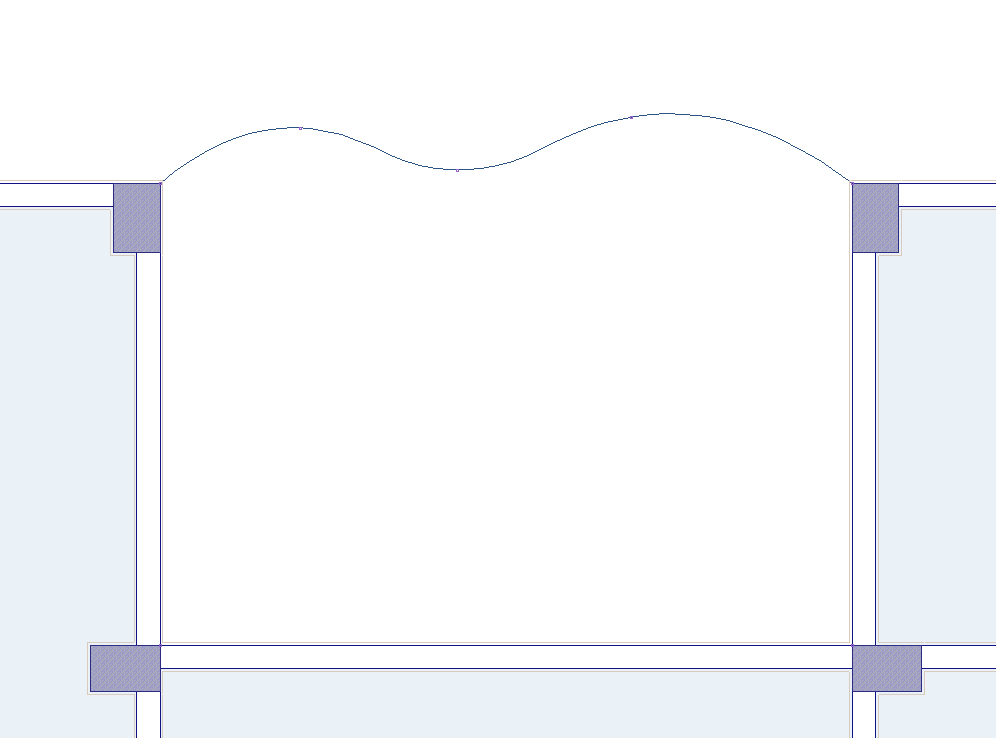

Formation of curve zone edge
