Section View

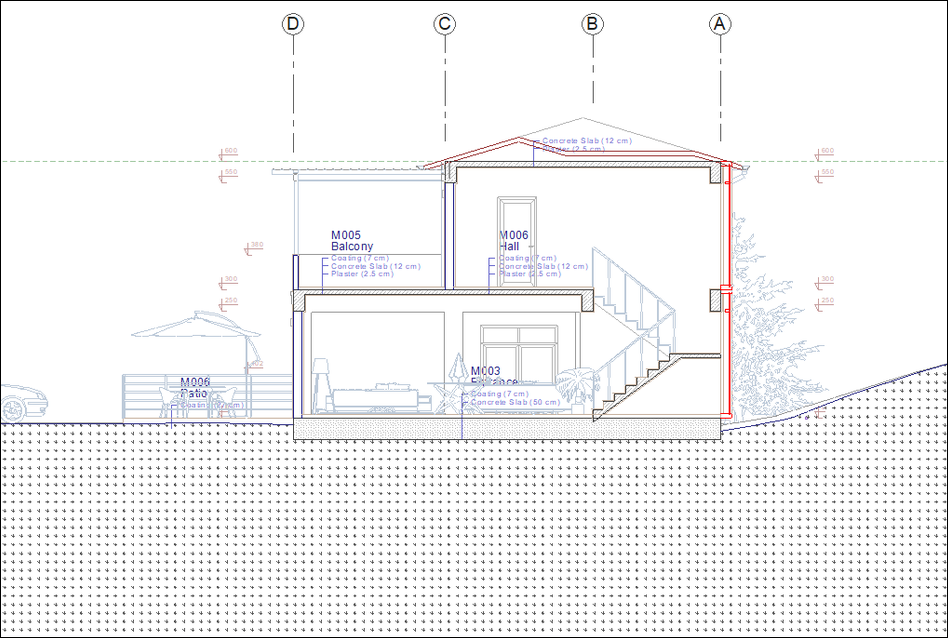

The sections created in the project are displayed in the section windows. Objects on the section line are cut, other objects in the direction of view are visible. 3D objects drawn on story plans by creating sections are transformed into parallel projections, 2-dimensional lines and hatches. Section windows can be created as much as the section line drawn.
