Drawing a Curve Slab Edge

With the Curve Slab Edge command, the slab edge definition is made in curve form between each point clicked with the mouse. By clicking on the intended points, the definition of cantilever in curve form, slab without end or slab without beams is made.

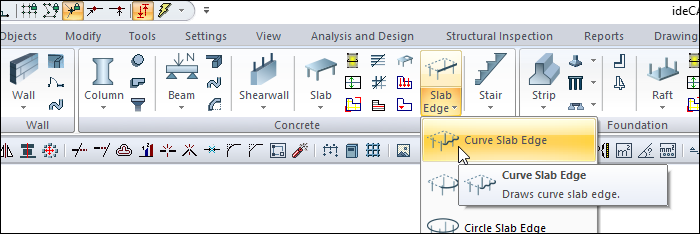

Location of Curve Slab Edge Command

You can access it under the Concrete tab in the ribbon menu under the Concrete heading.

Usage Steps

  • Click the curve slab edge icon.

  • Click on the starting point of your slab edge with the left mouse button.

  • Move your mouse to give your intended form-fitting curvature and click the left button again.

  • Click another point in the same way if the curve form is to be continued.

  • As you determine the points, your slab edge will be shaped according to the position of the points.

  • Finally, click the point where the curve slab edge will end.

  • End the command by clicking the right mouse button.

  • Your curve slab edge will form.

  • Exit the command by pressing the esc key on the keyboard. You can now define slab.

Usage step

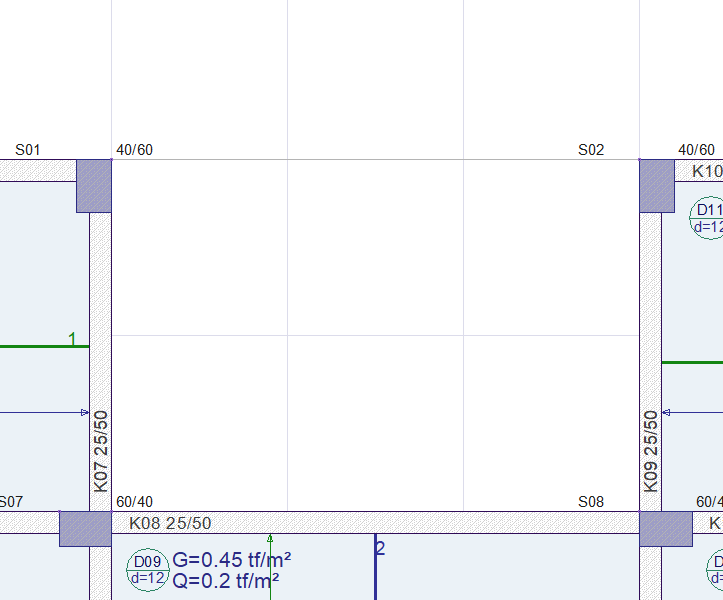

Area to draw curve slab edge

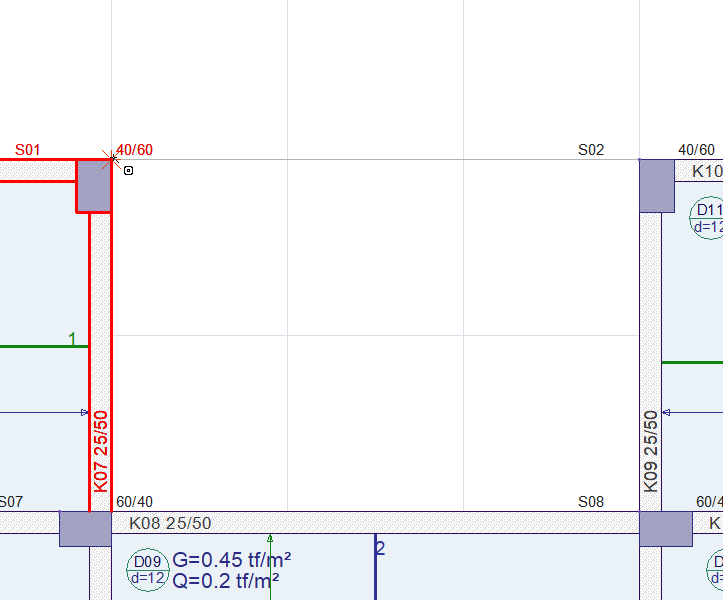

Determining the starting point of the slab edge

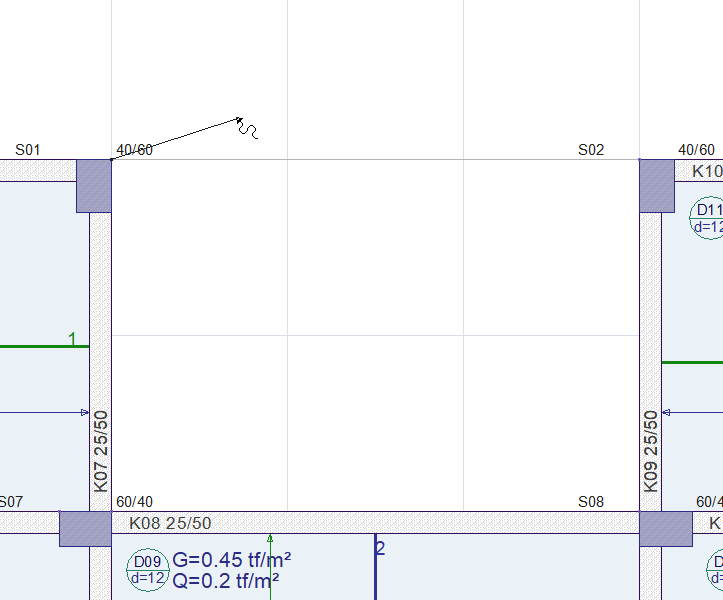

Determination of the second point

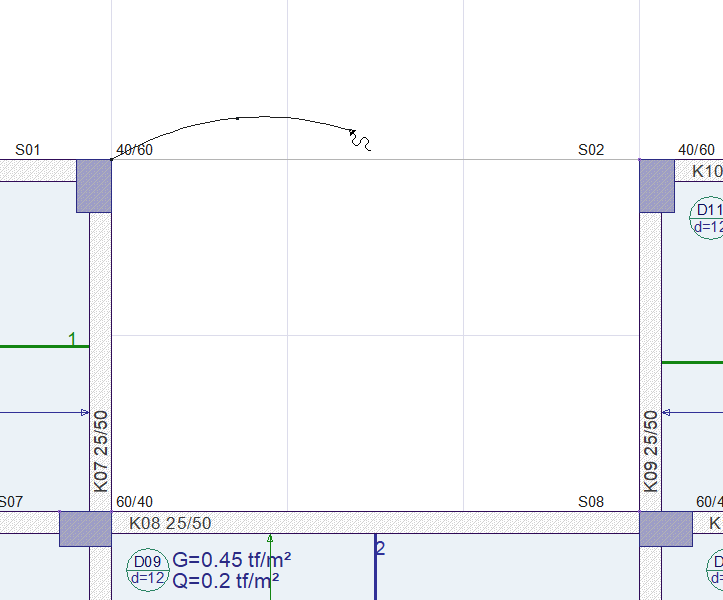

Determining the third point

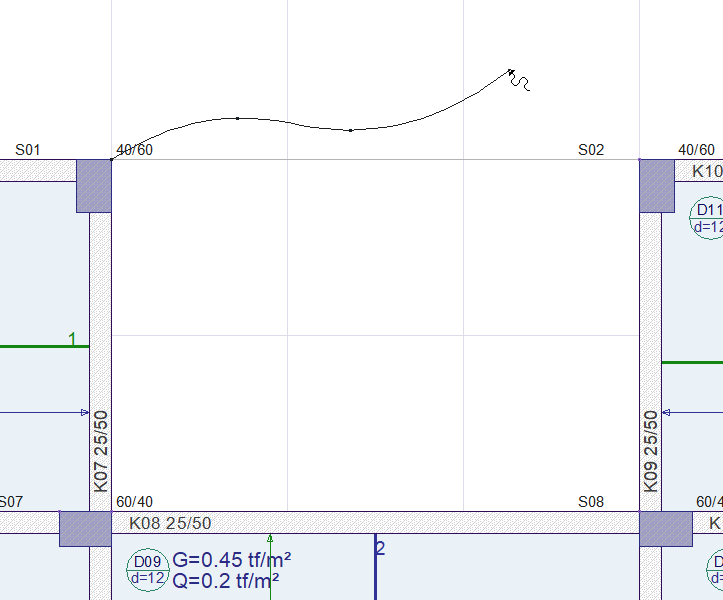

Determination of the fourth point

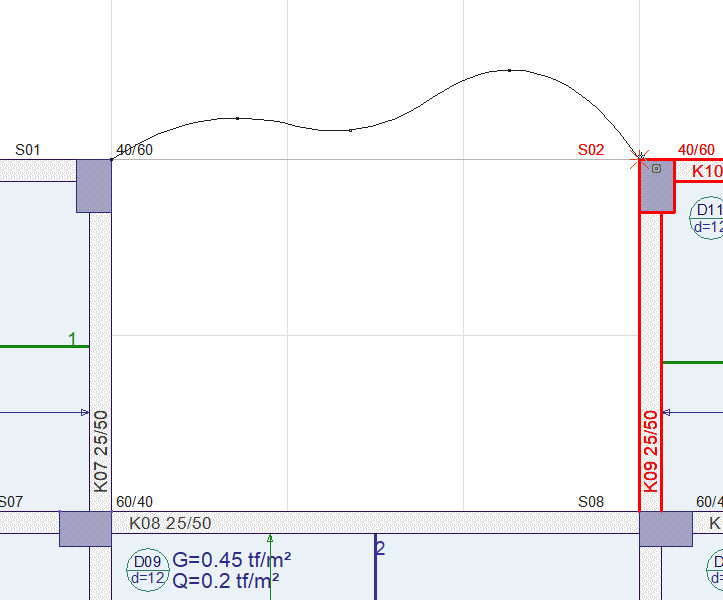

Determining the point where the curve slab edge will end

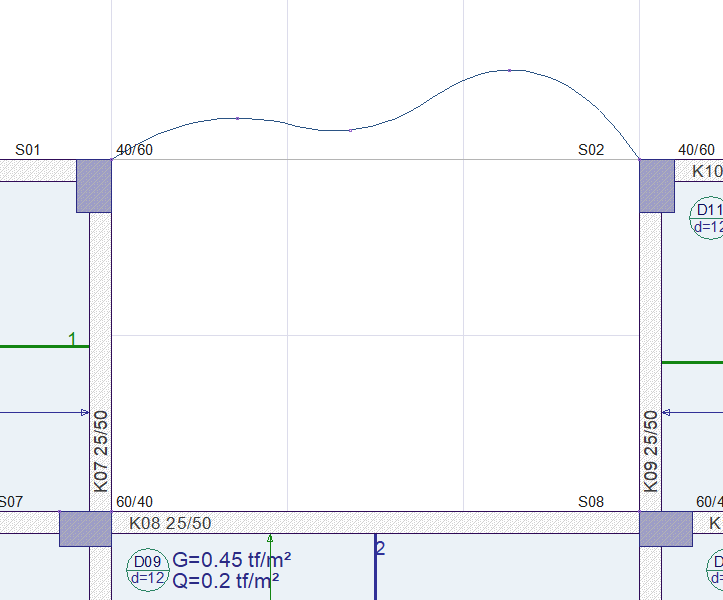

Formation of curve slab edge
