Method of Creating a Zone by Choosing a Contour
With the "Create free mode zone" command, a zone is created by defining its contour

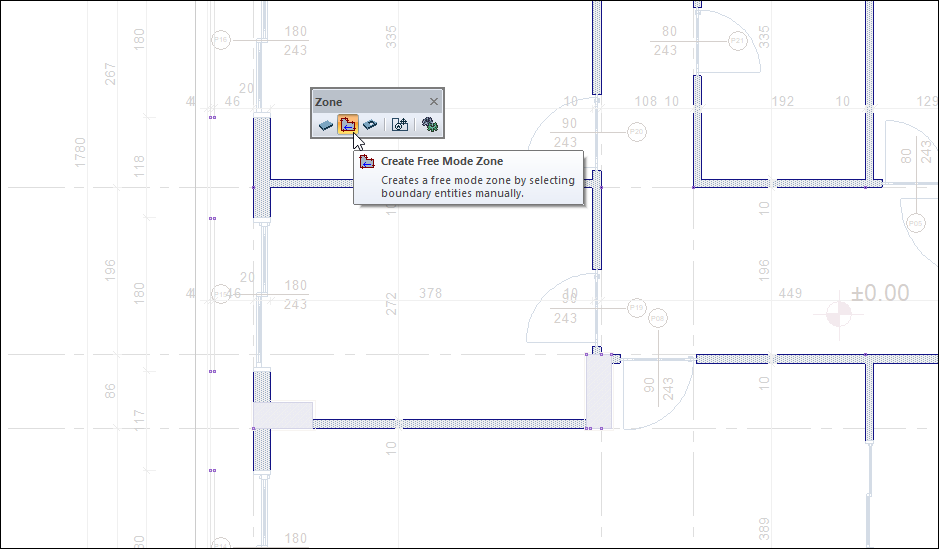

Click the create free mode zone icon in the zone toolbar.

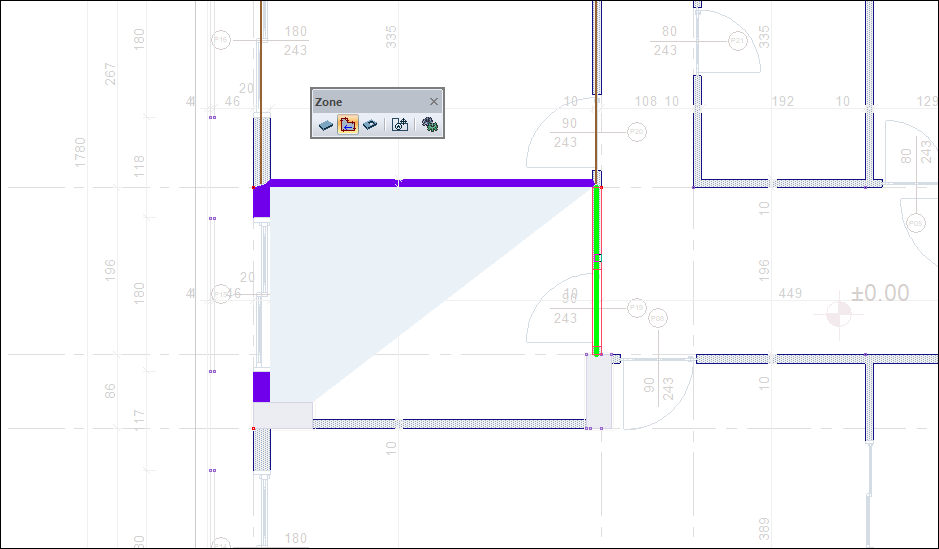

Select the wall objects around the area you want to create a zone.

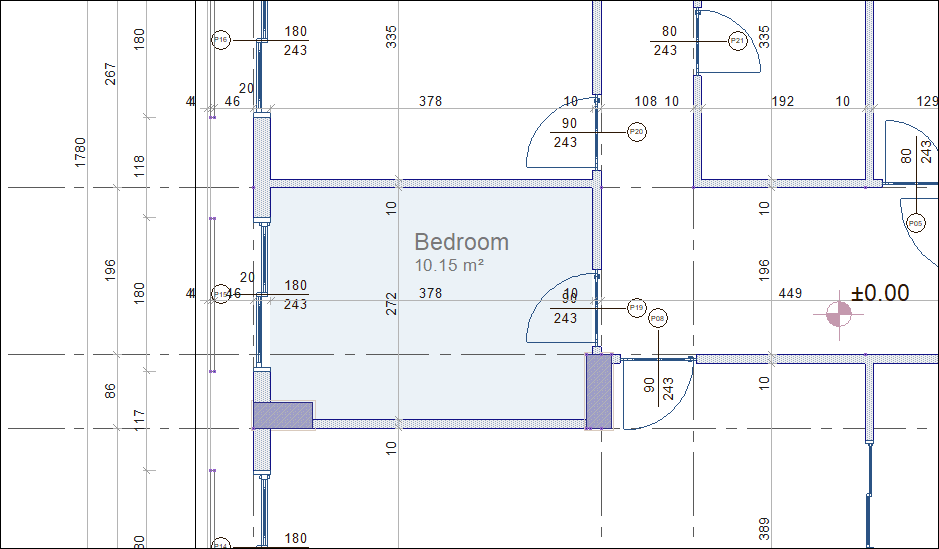

When you choose the last wall and create a closed area, your zone will be created.
![](../__attachments/1469579539/image-20210115-113659.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1469579539/image-20210115-113812.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
![](../__attachments/1469579539/image-20210115-113947.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
