Creating a Revision Cloud

With the revision cloud command, revised (corrected or changed) sections in architectural and structural project designs are marked.

Location of the Revision Cloud Command

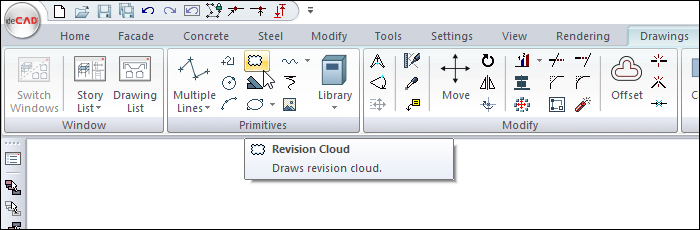

In the Architectural Program

You can access it under the Ribbon menu, Drawings tab, Primitive Objects heading.

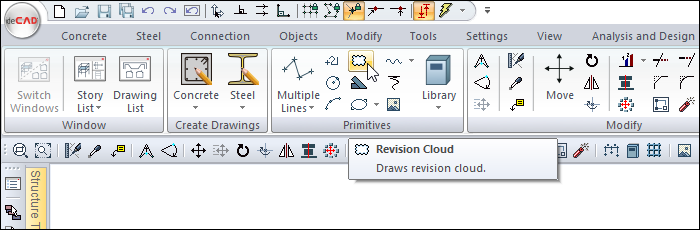

In the Structural Program

You can access it under the Ribbon menu, Drawings tab, Primitive Objects heading.

Process steps

To draw a revision cloud;

  • Click the Revision Cloud icon in the ribbon menu .

  • Click any point in the drawing area with the left mouse button.

  • Drag the mouse until you get the shape you want and move the cursor to the point where you started.

  • The process will be terminated.

Usage step

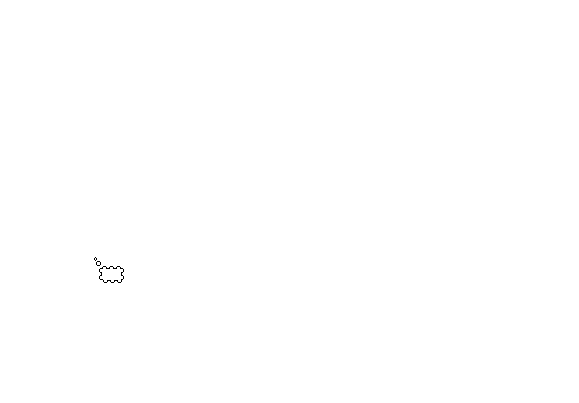

Determining the first point for the revision cloud

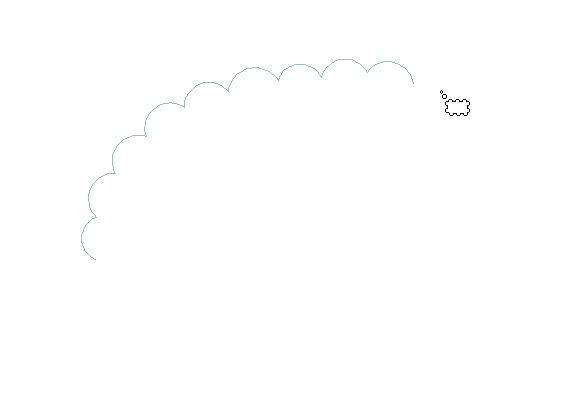

Revision cloud formation with the movement of the mouse

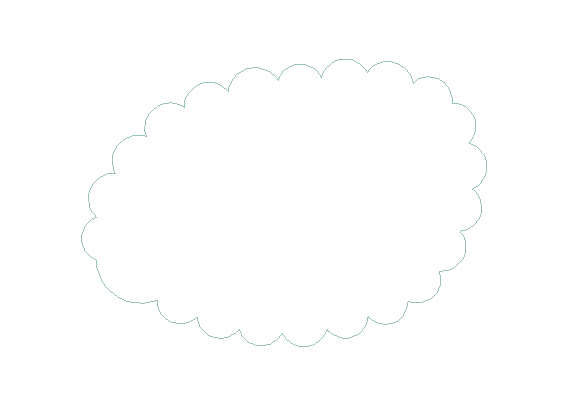

Returning to the starting point and completing the revision cloud
