Limiting Width-to-Thickness Ratios for Compression Elements for Moderately Ductile Members per AISC 341-16 with ideCAD

How does ideCAD control Width-to-Thickness Ratios according to AISC 341-16?

Column, beam and brace members of frames, that resists moderate ductility level loads are automatically controlled and reported according to Table D1.1.

Symbols

F_y = Specified minimum yield stress
R_y = Ratio of the expected yield stress to the specified minimum yield stress, F_y
λ_hd= Limiting slenderness parameter for highly ductile compression elements
λ_md = Limiting slenderness parameter for moderately ductile compression elements
E= Modulus of elasticity of steel = 29,000 ksi (200 000 MPa)

Table D1.1 Limiting Width-to-Thickness Ratios for Compression Elements for Moderately Ductile and Highly Ductile Members

For horizontal load-bearing system elements to perform sufficient plastic deformation under earthquake effects without local buckling, the width-to-thickness ratios of compression elements must meet the conditions given in Table D1.1.
The width-to-thickness ratios of steel elements are automatically controlled and reported with steel elements reports according to Table D1.1.

Limiting Width-to-Thickness Ratios for Compression Elements for Moderately Ductile and Highly Ductile Members
Description of Element	Width-to- Thickness Ratio	Limiting Width-to-Thickness Ratio		Example
Description of Element	Width-to- Thickness Ratio	λ_hd Highly Ductile Members	λ_md Moderately Ductile Members	Example

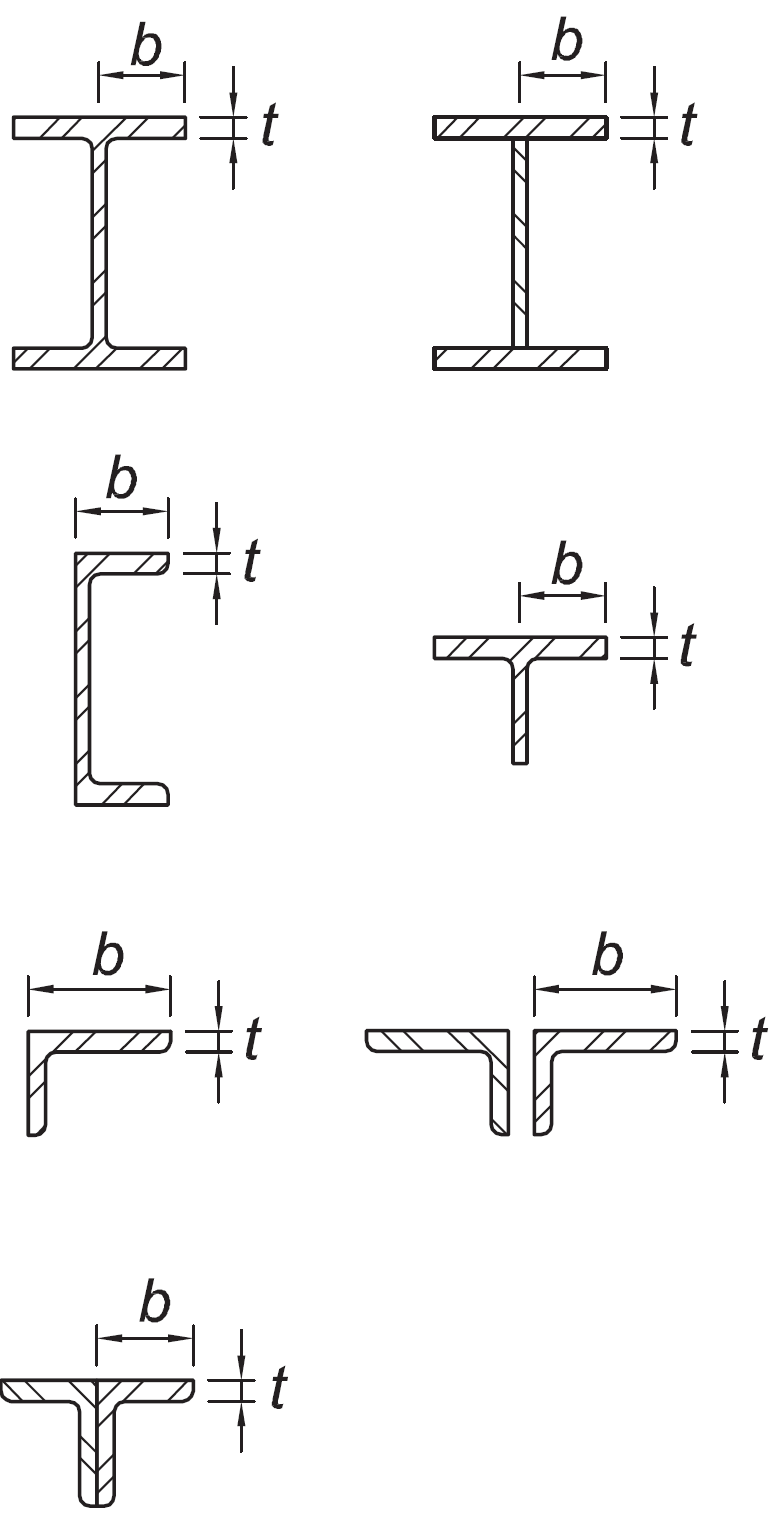

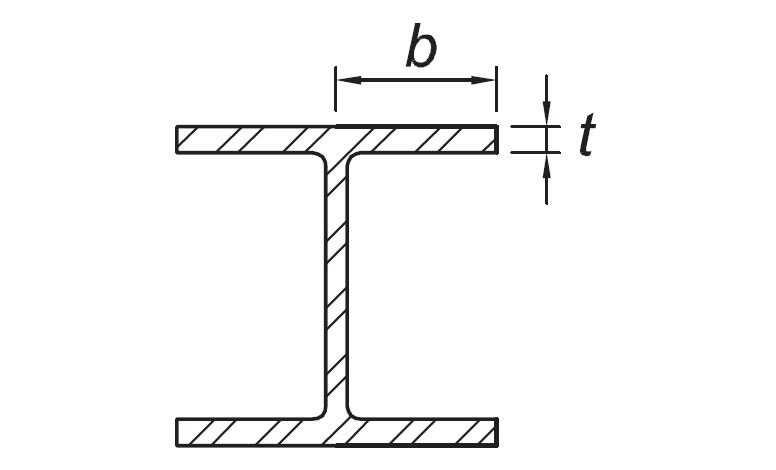

Flanges of rolled or built-up I-shaped sections, channels and tees; legs of single angles or double-angle members with separators; outstanding legs of pairs of angles in continuous contact	b/t
Flanges of H-pile sections per Section D4	b/t	not applicable

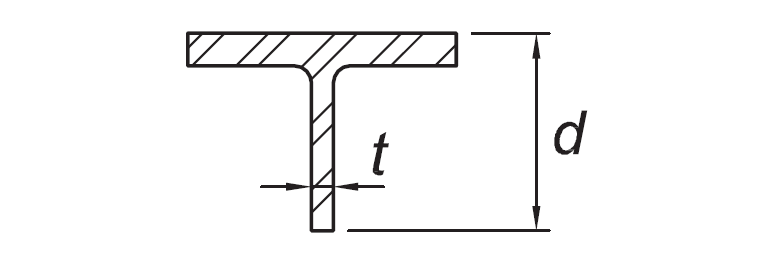

Stems of tees	d/t

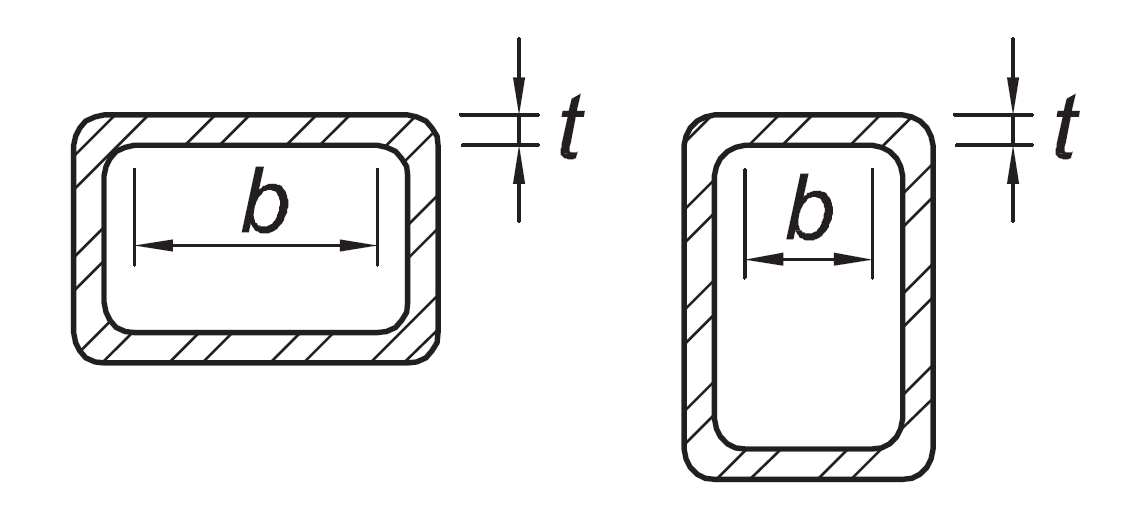

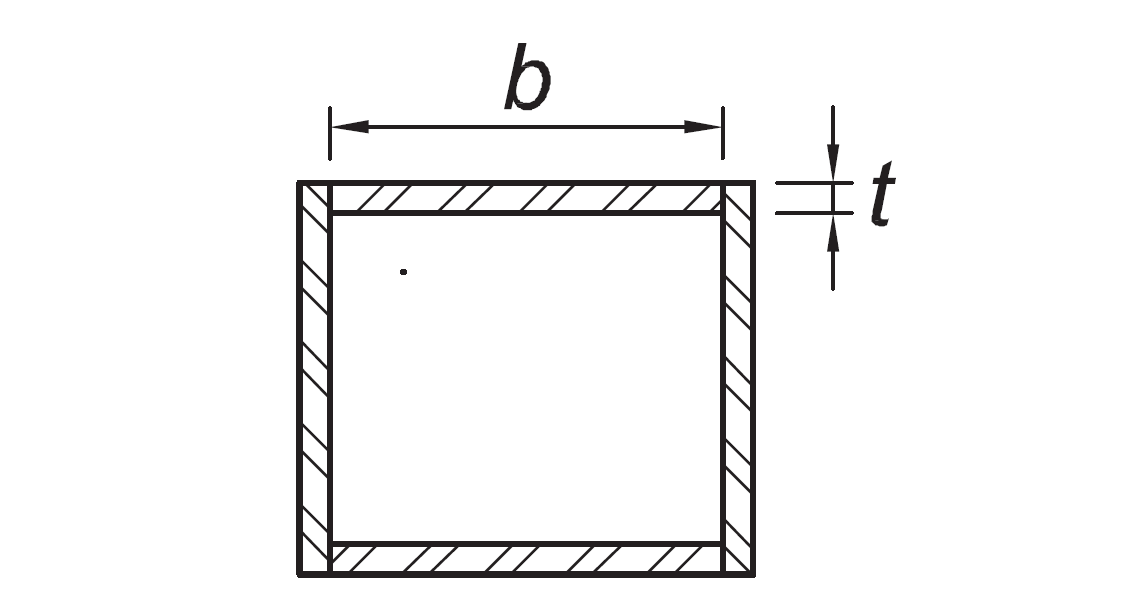

Walls of rectangular HSS used as diagonal braces	b/t

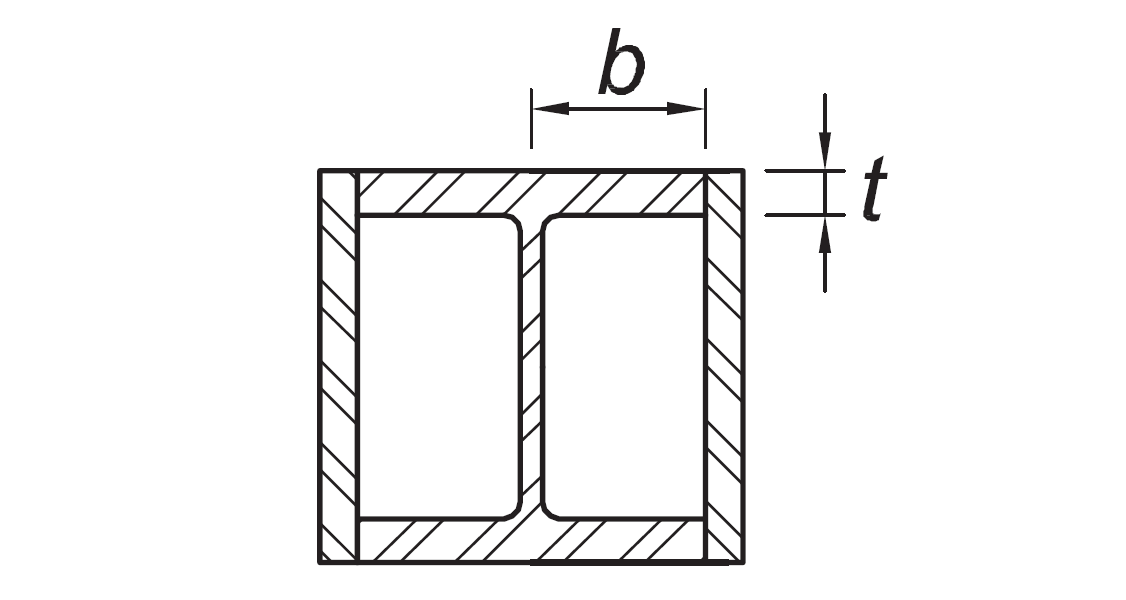

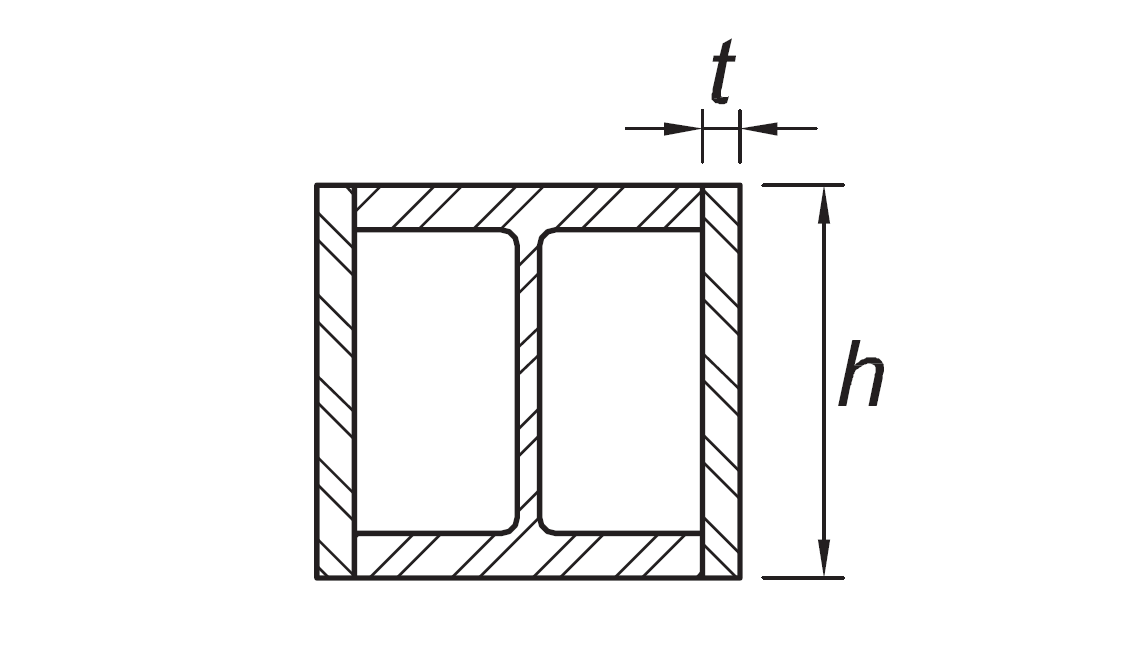

Flanges of boxed I-shaped sections	b/t

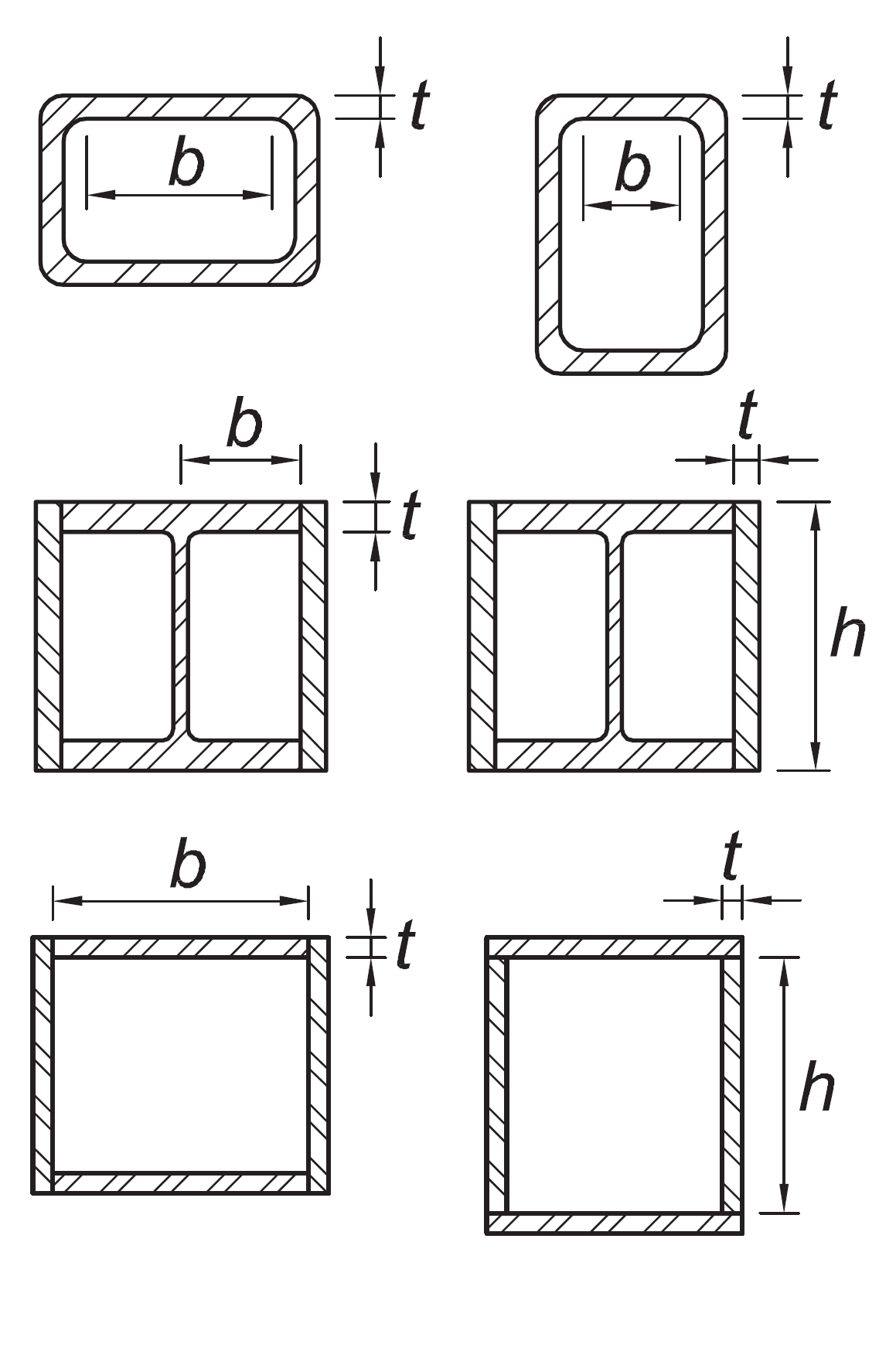

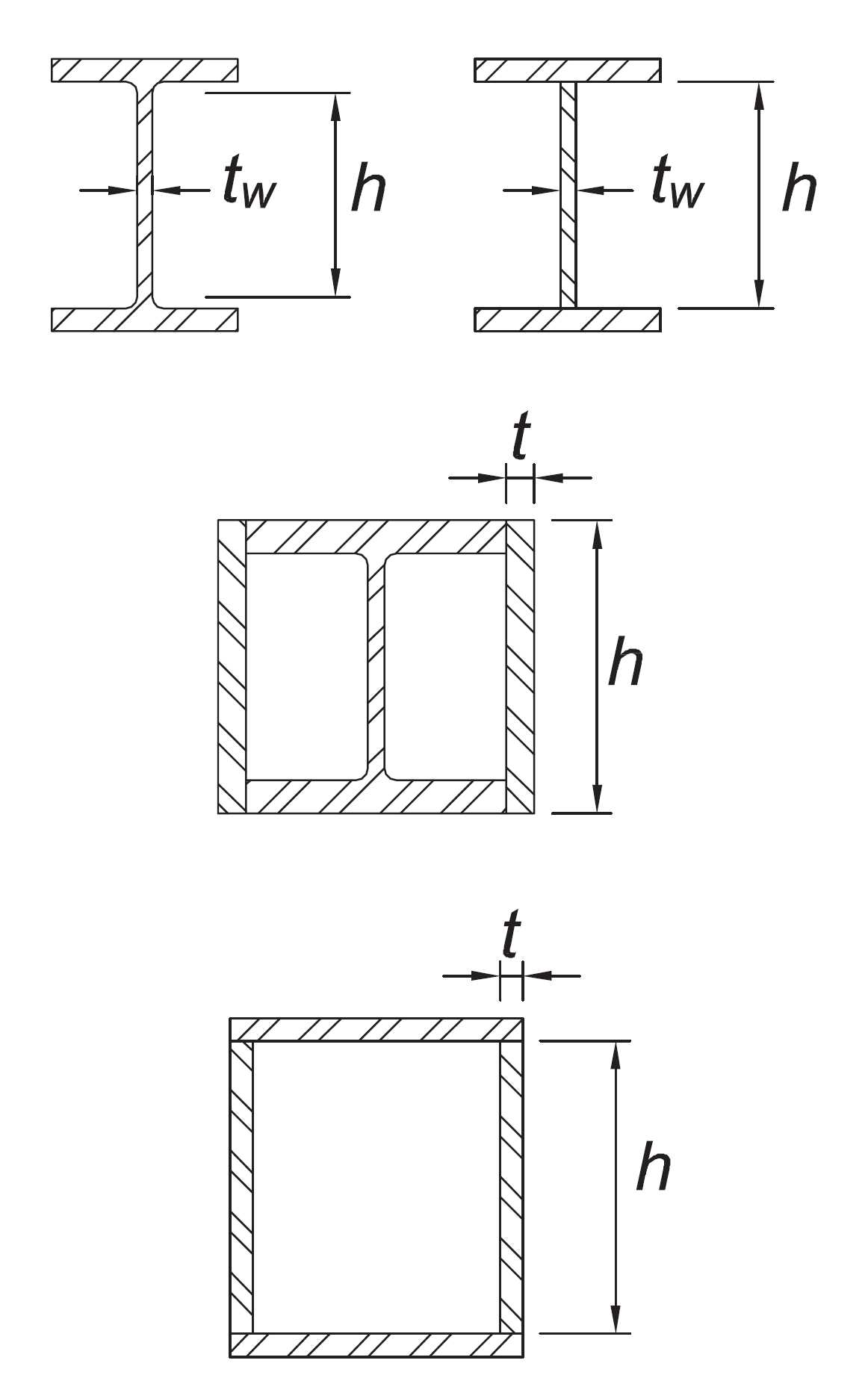

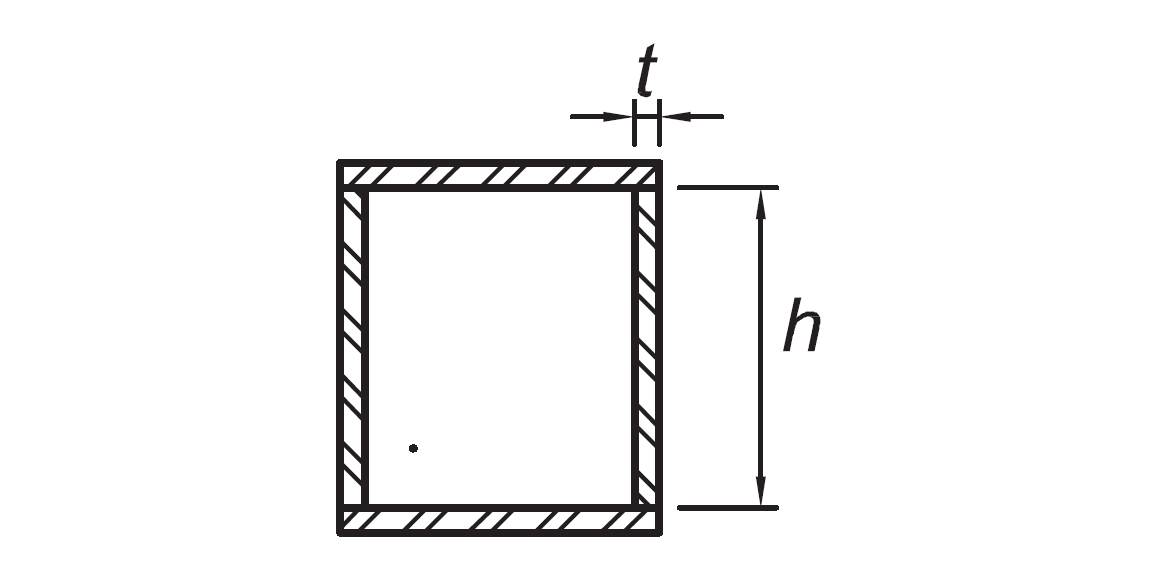

Side plates of boxed I-shaped sections and walls of built-up box shapes used as diagonal braces	h/t
Flanges of built up box shapes used as link beams	b/t

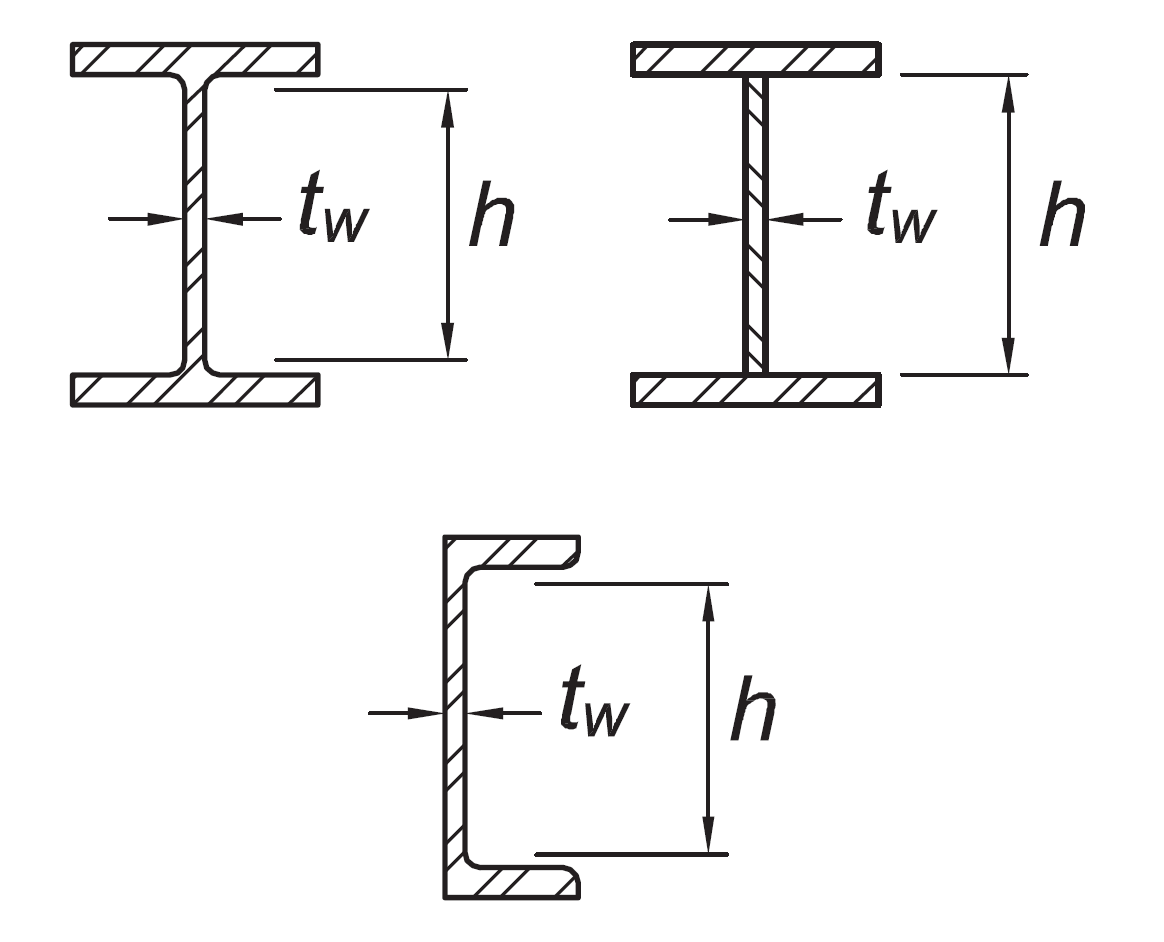

Webs of rolled or built-up I shaped sections and channels used as diagonal braces	h_w/t
Where used in beams or columns as flanges in uniform compression due to axial, flexure, or combined axial and flexure: Walls of rectangular HSS Flanges and side plates of boxed I-shaped sections, webs and flanges of built-up box shapes	b/t h/t

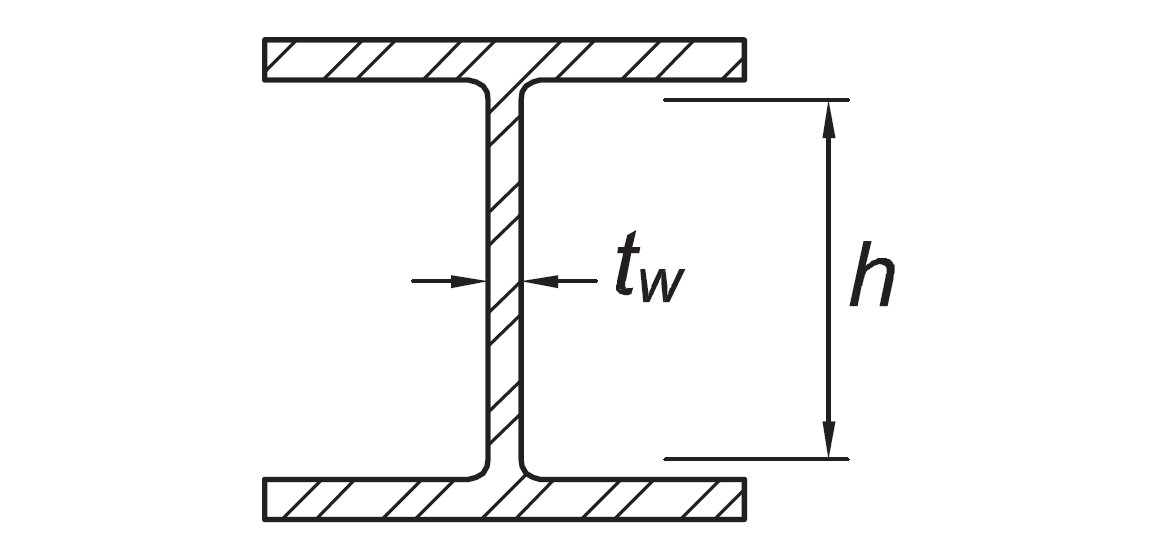

Where used in beams, columns, or links, as webs in flexure, or combined axial and flexure: Webs of rolled or built-up I shaped sections or channels [b] Side plates of boxed I-shaped sections Webs of built up box sections	h/t_w h/t h/t	For C_a ≤ 0.114 For C_a > 0.114 where	For C_a ≤ 0.114 For C_a > 0.114 where
Webs of built-up box sections used as EBF links	h/t
Webs of H-Pile sections	h/t_w	not applicable

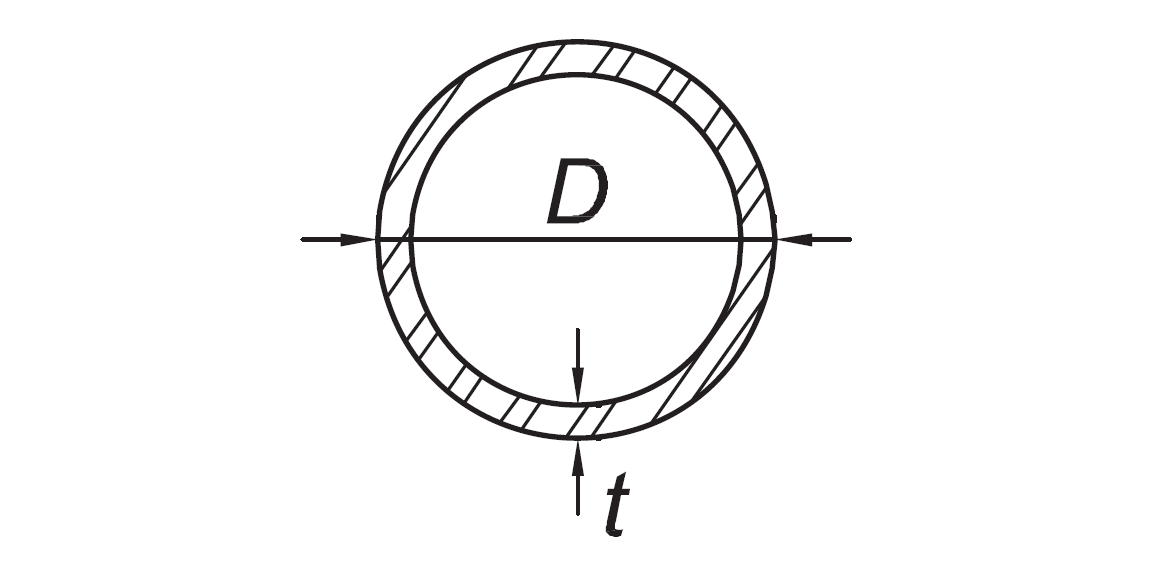

Walls of round HSS	D/t
