Automatic Hatch

With the Automatic Hatch feature, automatic hatch is created in closed areas such as zones and slabs. It is also used in closed areas created with lines (joined nodes).

Location of the Automatic Hatch Feature

You can access it from the Hatch toolbar that opens when the Parametric/User Defined/Bitmap Hatch command is clicked .

Usage Steps

  • Click the Parametric/User Defined/Bitmap Hatch command.

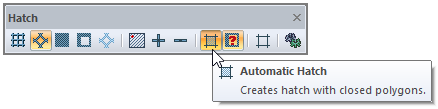

  • Click the Automatic Hatch icon from the hatch toolbar .

  • Click the area, zone, and/or slab you want to hatch.

  • The hatch will be created.

Usage step

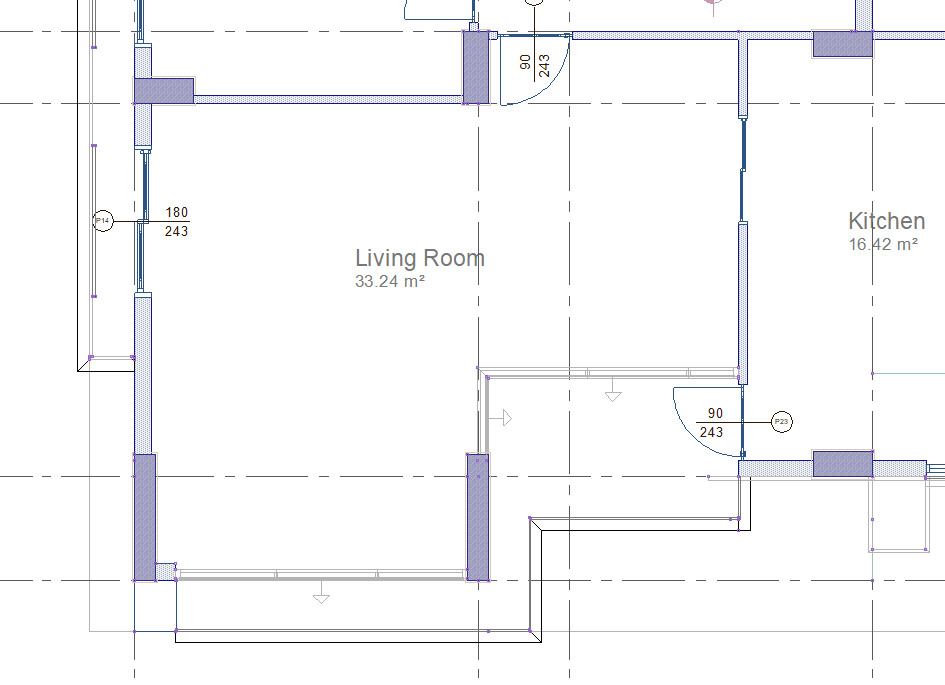

Area to automatic hatch

Activating automatic hatch

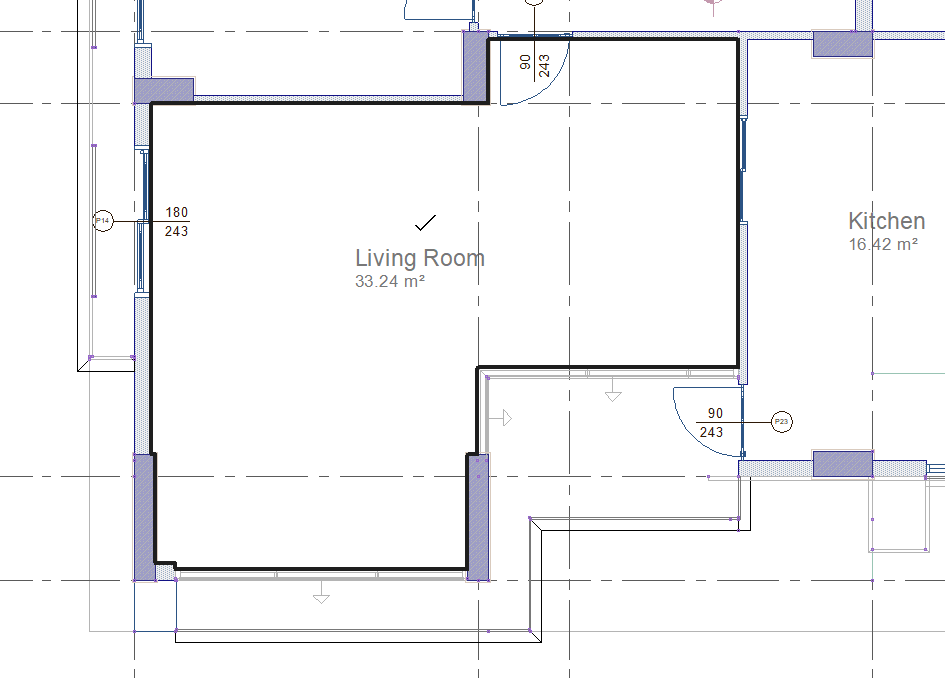

Mouse over the area to be hatched

Creation of the hatch by clicking the left mouse button
