Snap to Nodes

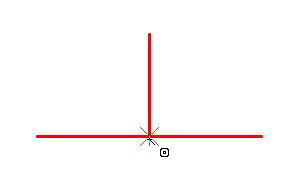

Snap to nodes mode allows you to snap entities at joints in the drawing area from their node points.

Location of the Snap to Nodes Command

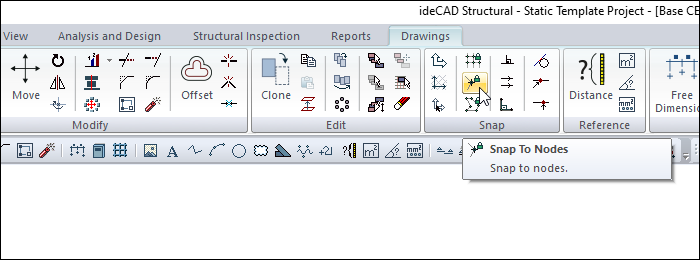

You can access it under the ribbon menu Drawings tab Snap title.

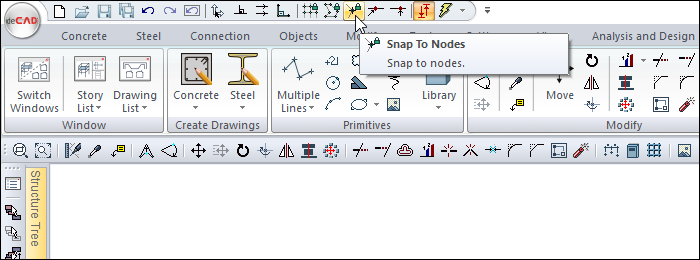

Also you can access the Snap to Nodes icon from the quick access toolbar.

Snap to Nodes is inactive

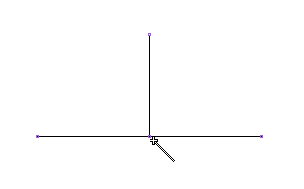

Snap to Nodes is active


Next Topic

Nearest Point
